Air quality controllers
Order numbers

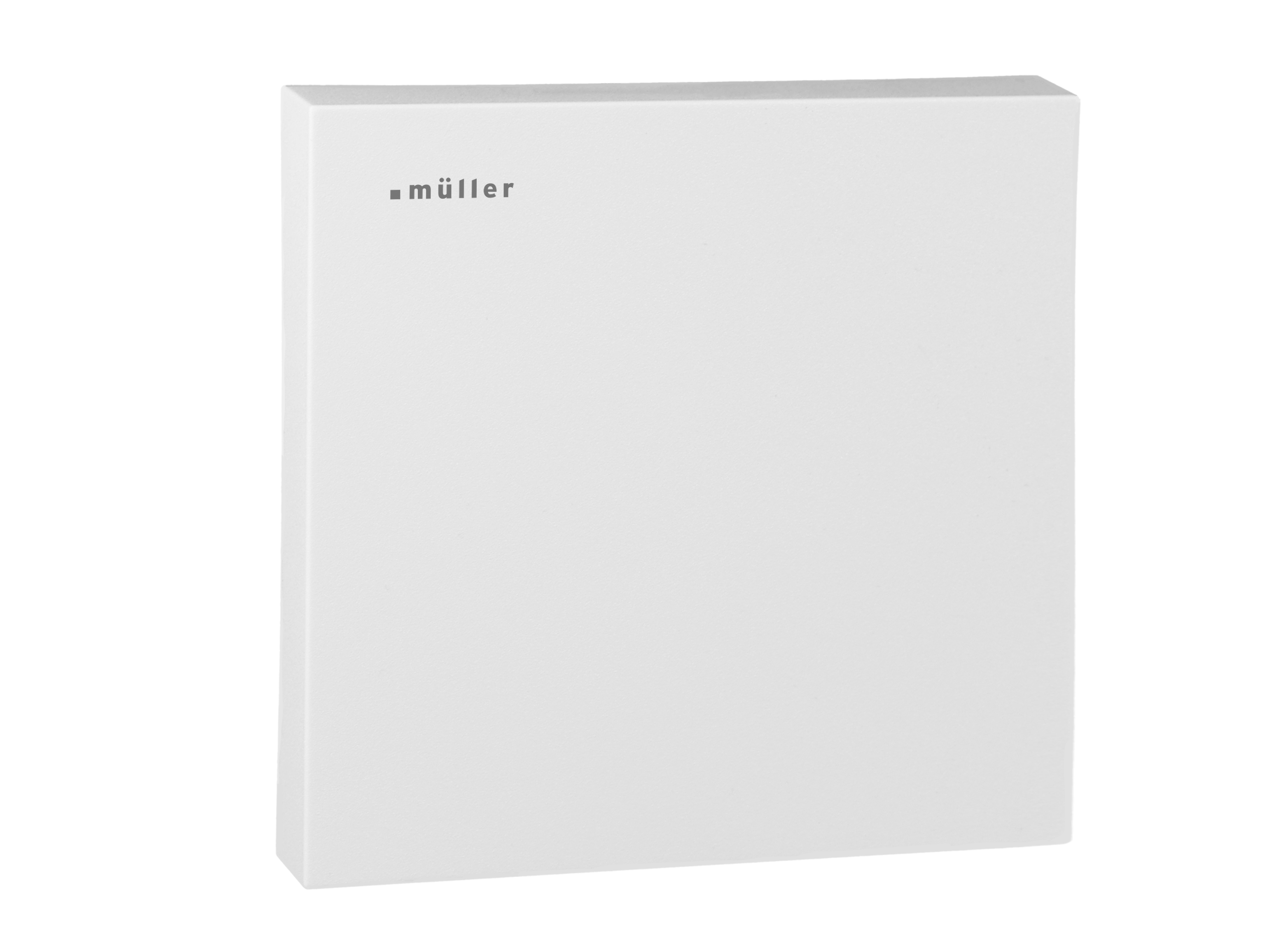

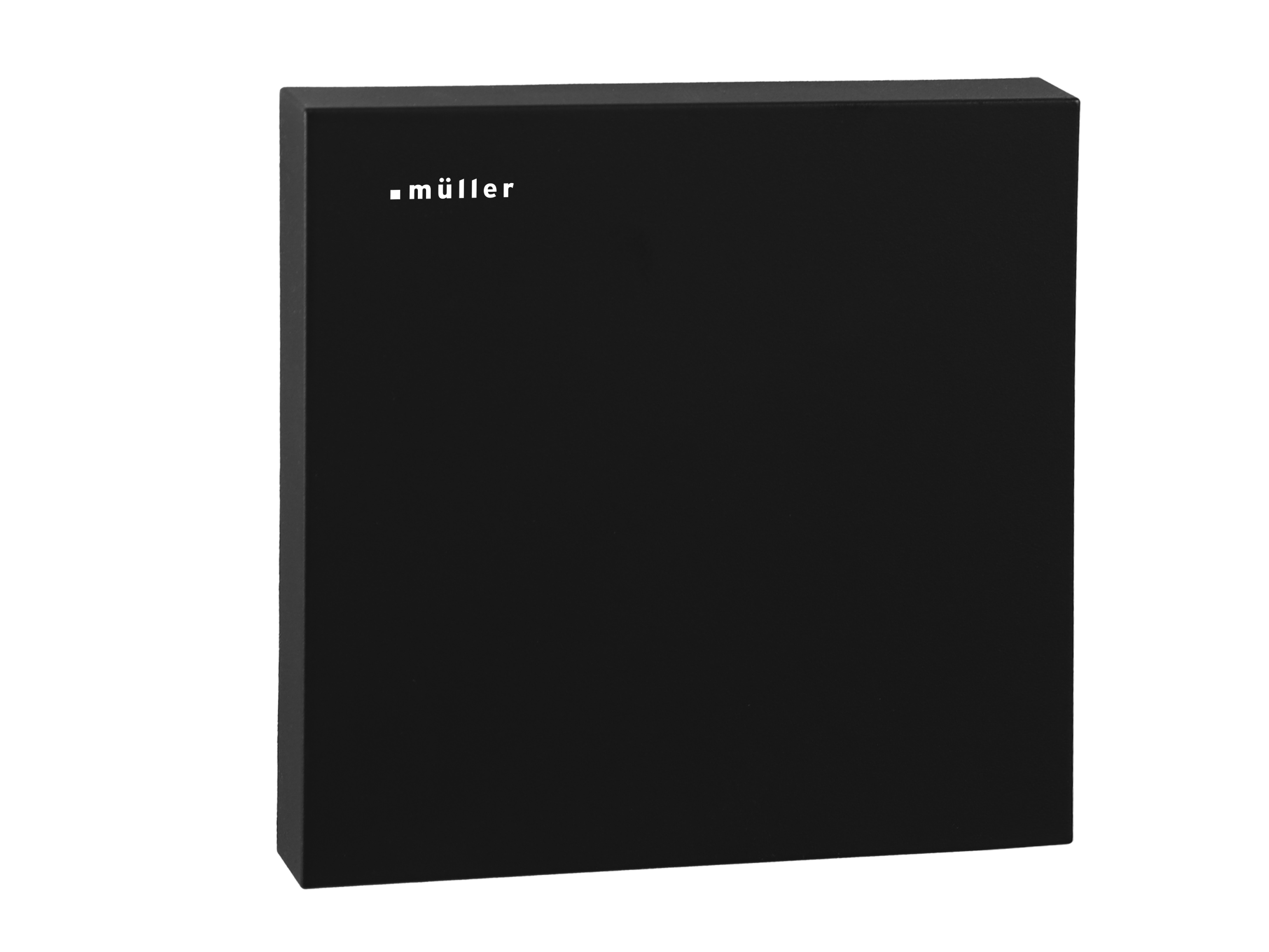

GS 40.12 knxCO2- air quality sensor & controller
GS 40.12 knx
CO2- air quality sensor & controller

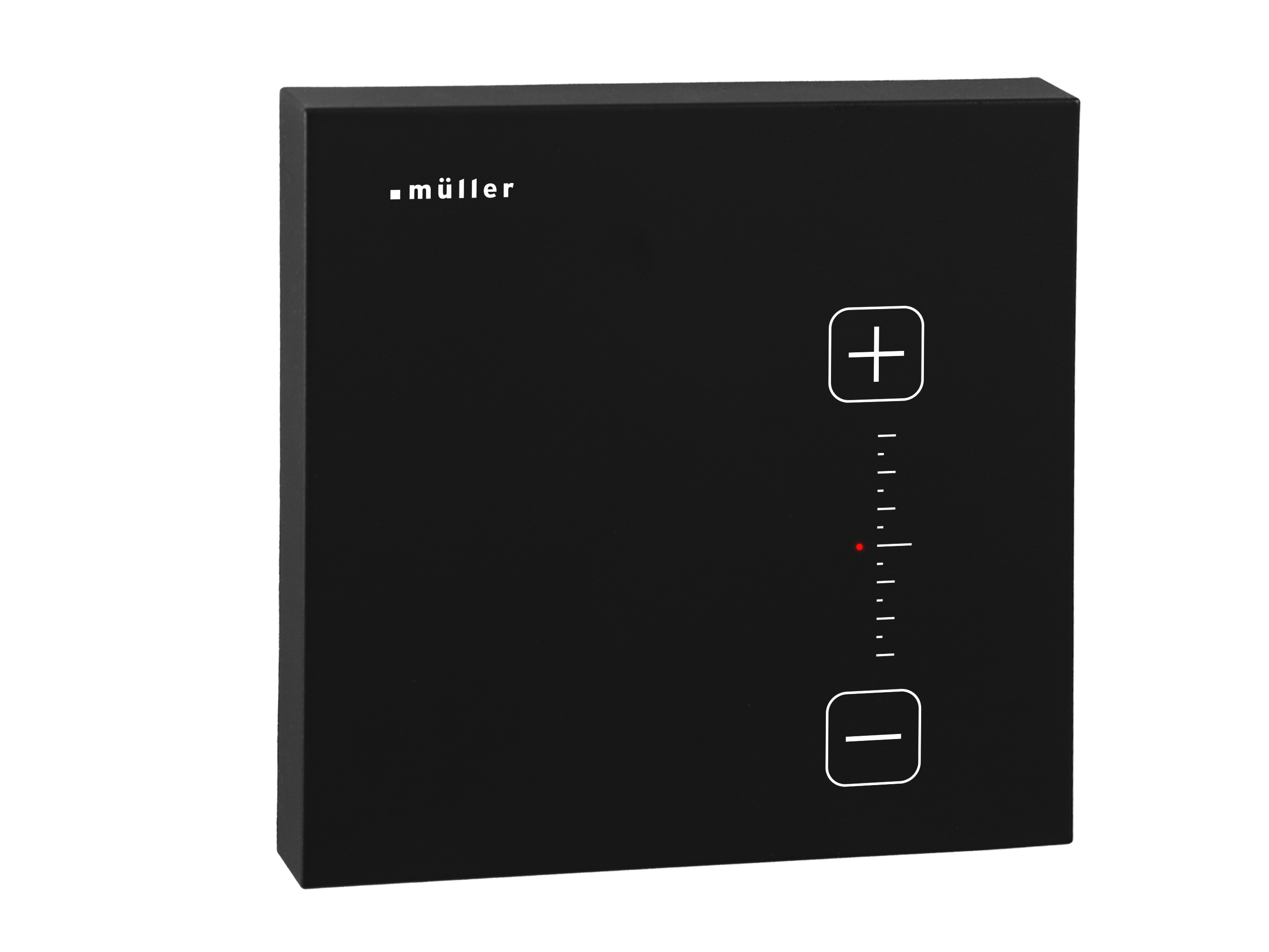

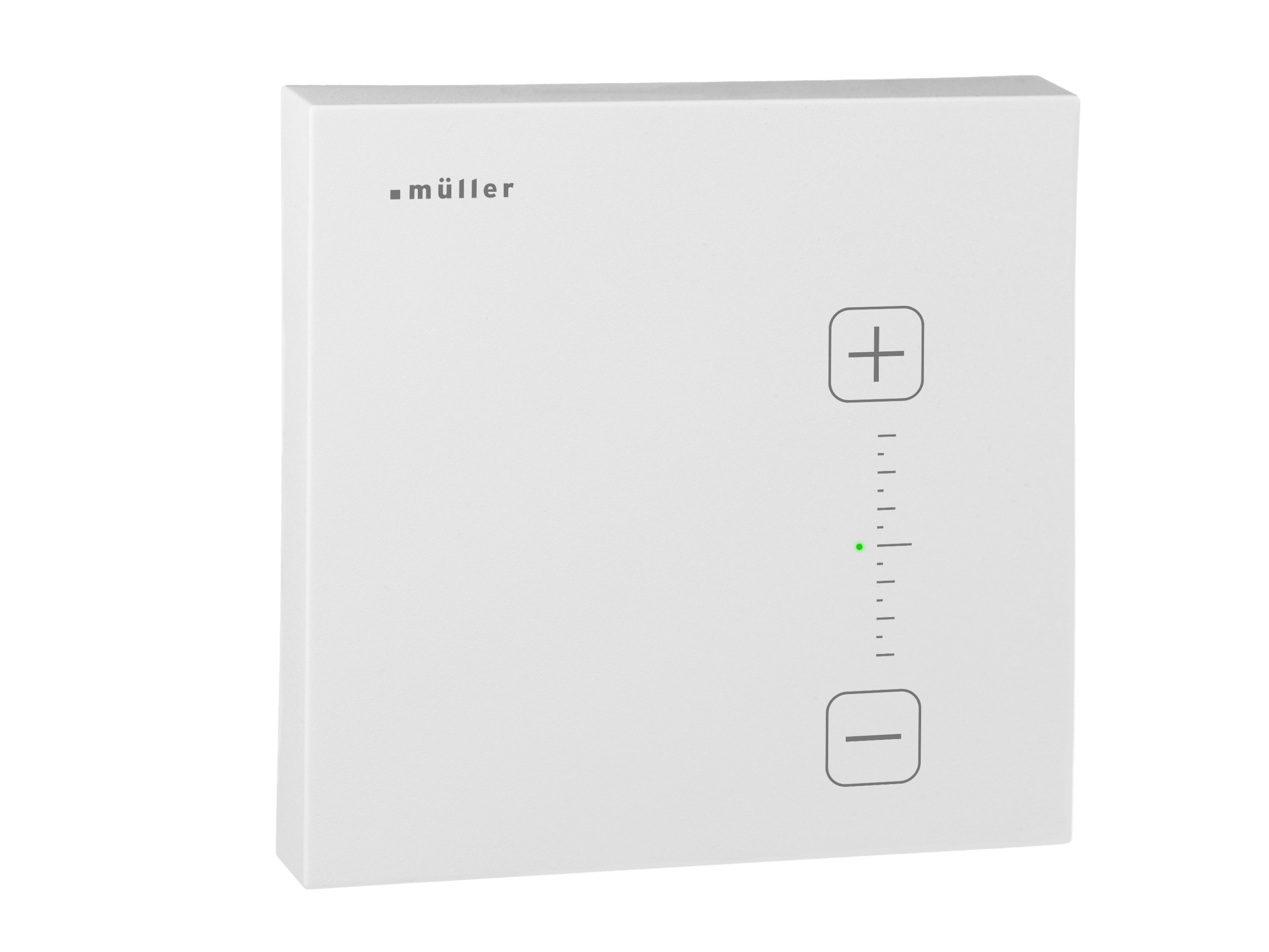

GS 41.12 knx
CO2- air quality sensor & controller with manual set-point temperature adjustment
Air quality sensors & controllers GS 40.12 / GS 41.12
Overview
- Detection of air quality
(CO2-concentration, rel. humidity, temperature) - CO2-sensor (Measuring range 425...5.000 ppm air pressure compensated)
- CO2-value is atmospheric pressure compensated
- Sensors for CO2-, temperature, humidity and atmospheric pressure measurement
- Temperature sensor (Measuring range 0...+50 °C)
- Humidity sensor (Measuring range 0...100 % rel. humidity)
- Humidity comparator function
- 2 separate temperature controls via KNX
- Temperature control with up to 4 sensor values possible
- Up to 2 VAV controls possible
- 5 binary and analogue inputs (e.g. for connecting an external temperature sensor)
- 3x analog outputs (0–10 V)
- RGB, RGBW and Tunable White dimming function
- KNX Secure
- Updatable
- Clearly structured ETS
- Easy installation and mounting
- Modern and planar design
- Wall mounting [80 mm]
- Party function
- Additionally at GS 41.12 knx:
manual adjustment of set-point temperature via touch panel
