Order numbers

AS 36.03 knx

Audio interface
without loudspeaker

AS 36.13 knx

Audio interface
with loudspeaker

Accessories

Chime / door bell for building automation KNX
6 individual MP3-files can be uploaded via ETS
12 pre-defined tones/melodies
3 binary inputs
10 input objects and 16 scenes can be configured
External loudspeaker can be connected

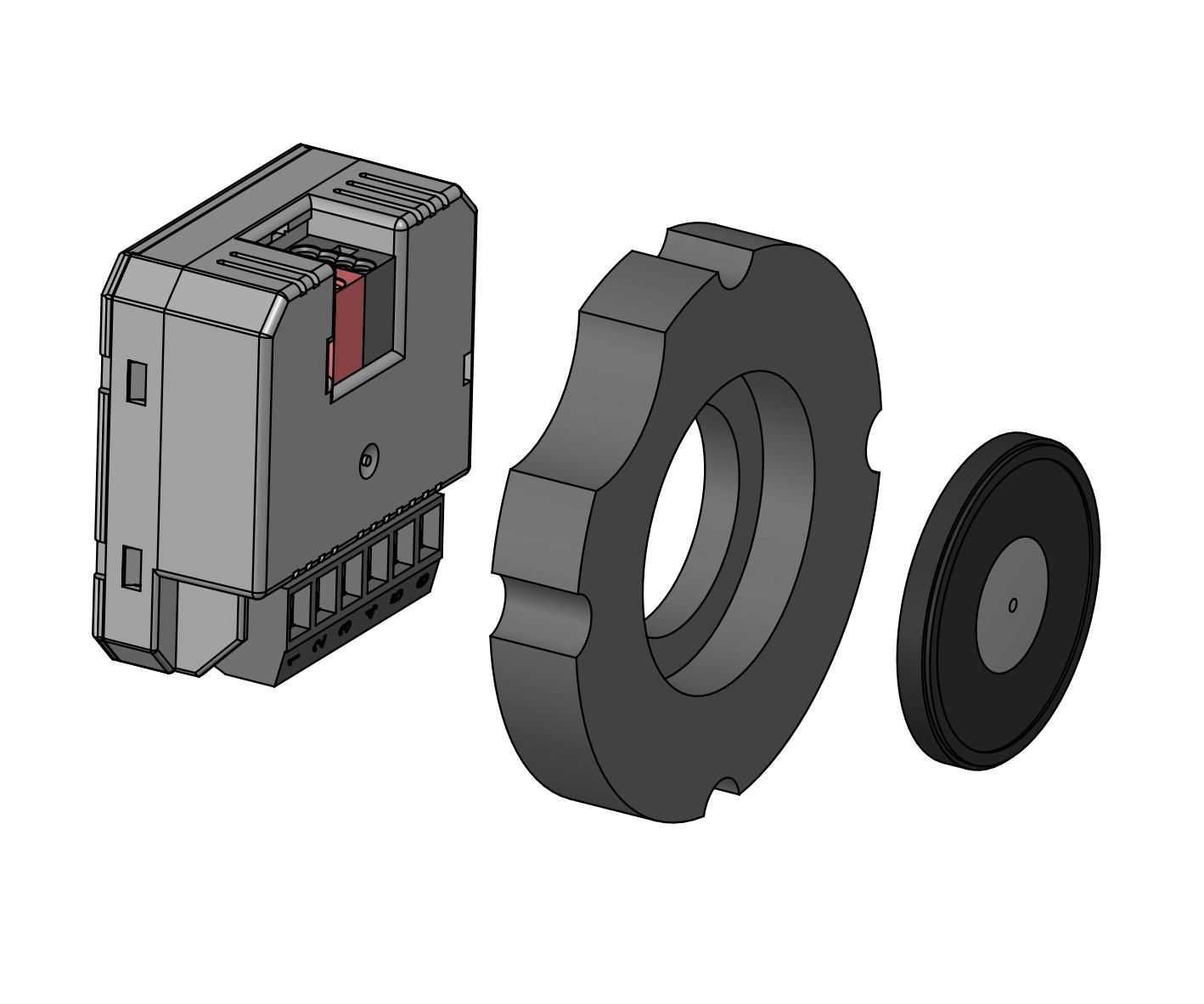

Small external loudspeaker (LA 06.10) included in delivery (AS 36.13 knx)
Adjustable volume level
No auxiliary supply needed
Day/night mode function
Mute function
Clearly structured ETS
Easy handling and mounting
Flush-mounted fitting
Compact housing
Can bei installed behind any kind of blind cover or also behind a switch/pushbutton in a long mounting box!

Hugo Müller GmbH & Co KG

Tel.: +49 (0) 7720 80 83 6

Supply voltage	via KNX bus voltage
Bus current	< 12 mA without output signal < 20 mA with output signal
Bus system	KNX
Input	3 binary inputs
Output	1 speaker output
Volume level	11 volume steps
Speaker output	max. 0,45 W
Impendance ext. speaker	4-8 Ohm
Melodies	6 own MP3-files 12 preset tones
Max. Mp3 file storage size	2x 64 kB, 2x 108 kB , 2x160 kB
Applikation software	ETS5 or higher
Permitted ambient temperature	-10...+45 °C
Housing	self-extinguishing thermoplastic
Dimensions AS 36.03 knx	44 x 41,5 x 20 mm
Dimensions loudspeaker	⌀ 60 mm incl. mounting ring
Housing color	studio white (similar to RAL 9016) specific colors on request
Mounting	flush-mounting

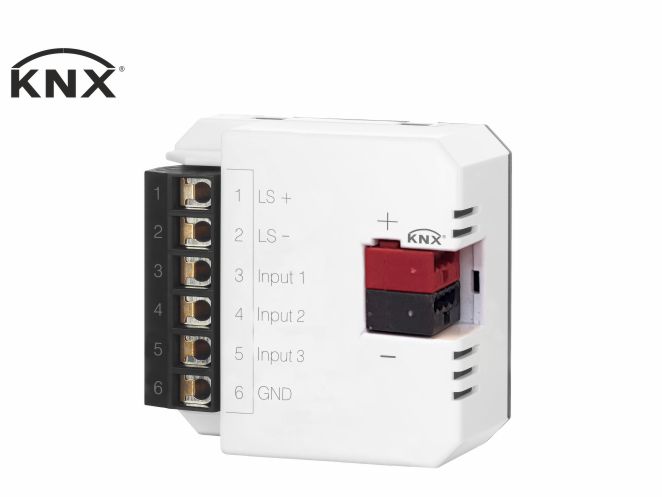

Type of connection	KNX-Connector screw-type terminals (for in-/outputs)
Type of protection	IP20 according to DIN EN 60529
Class of protection	III when installed according to regulations
