Room temperature controllers
Order numbers
TS 57.00 knx0Room temperature
controller
controller
TS 57.00 knx0
Room temperature
controller
controller
Room temperature controller TS 57.00 knx0
Order information
| EAN | Art. No. | |

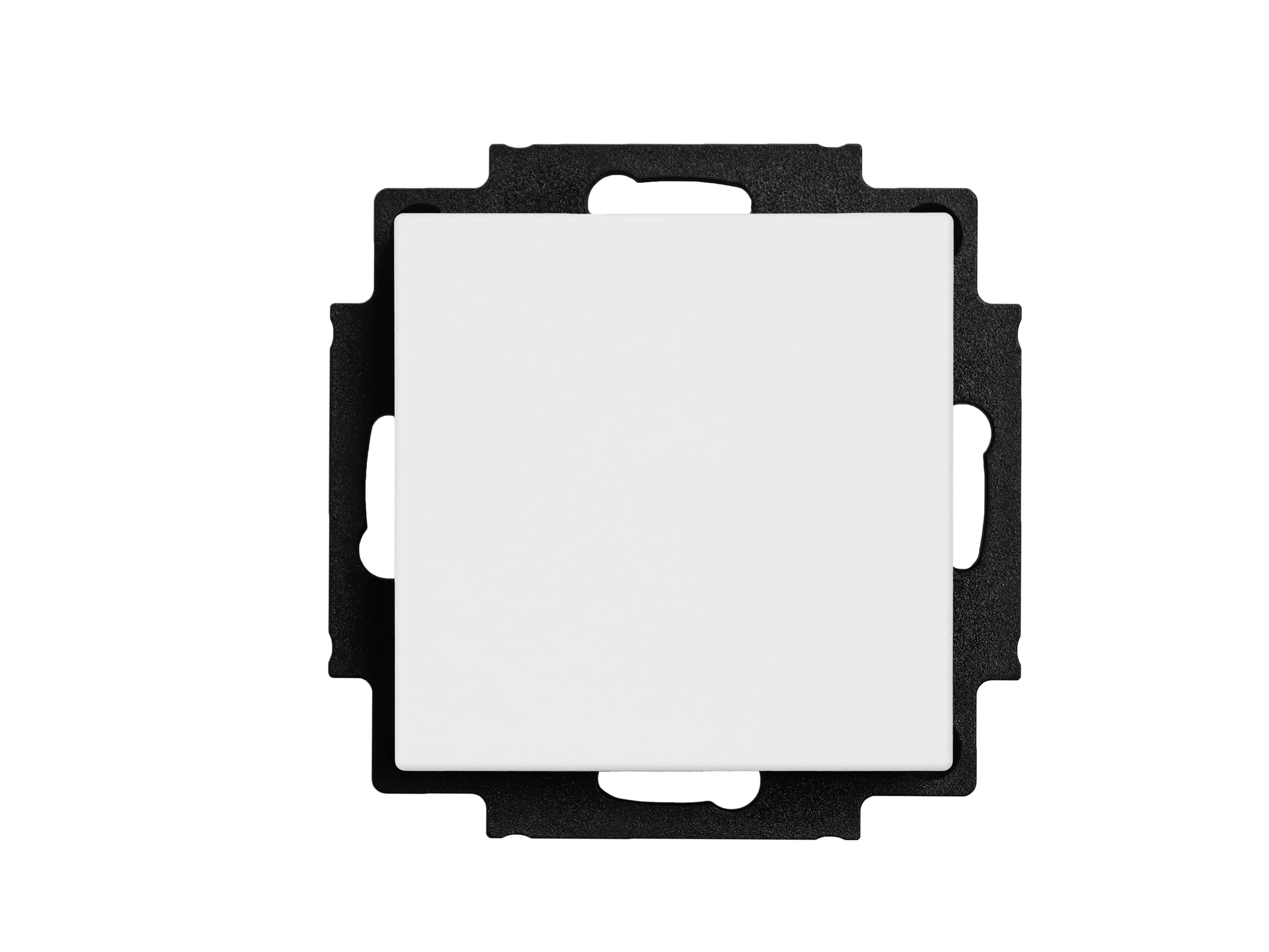

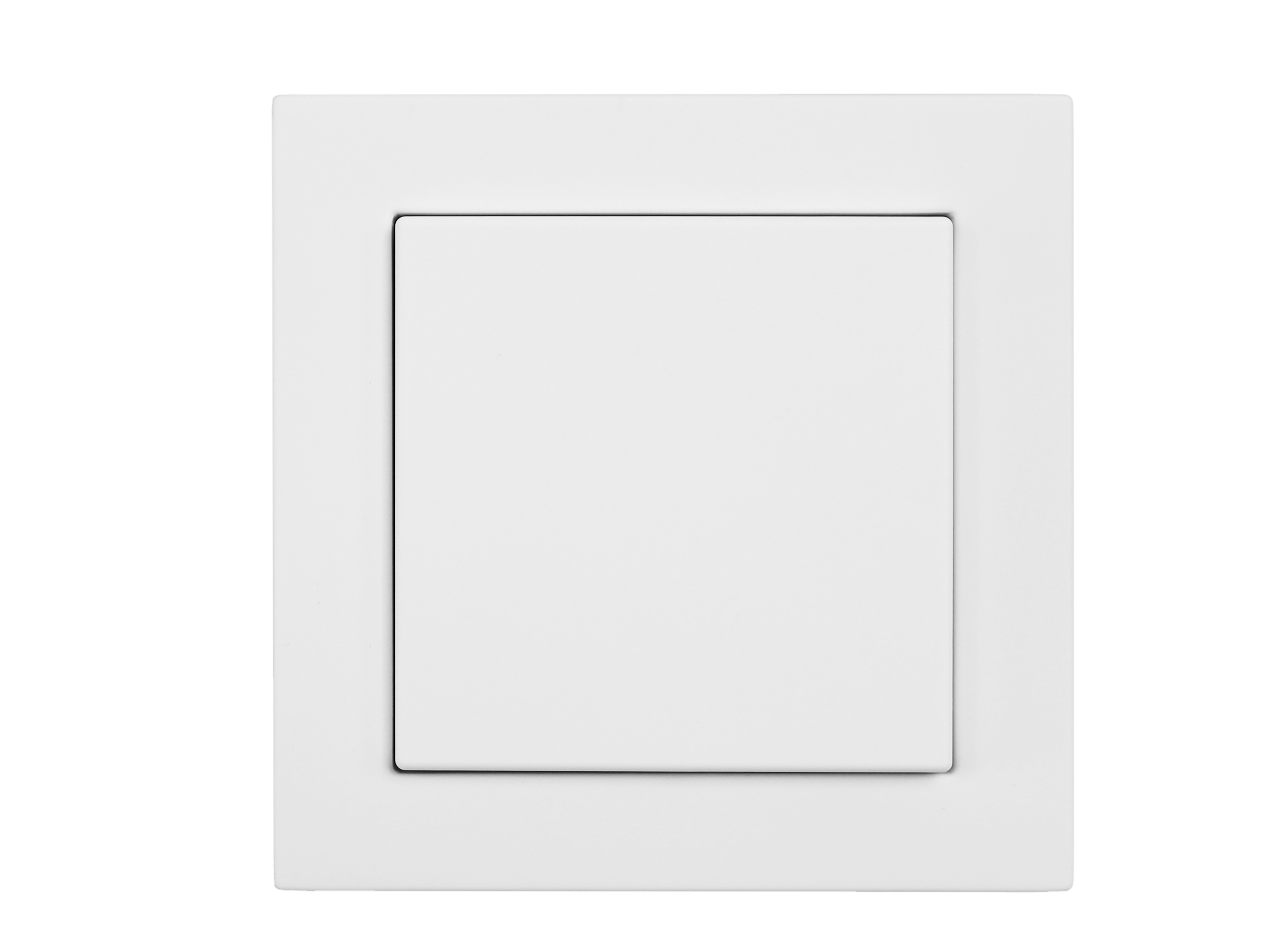

| TS 57.00 knx0 white | 4022709245892 | 24589 |

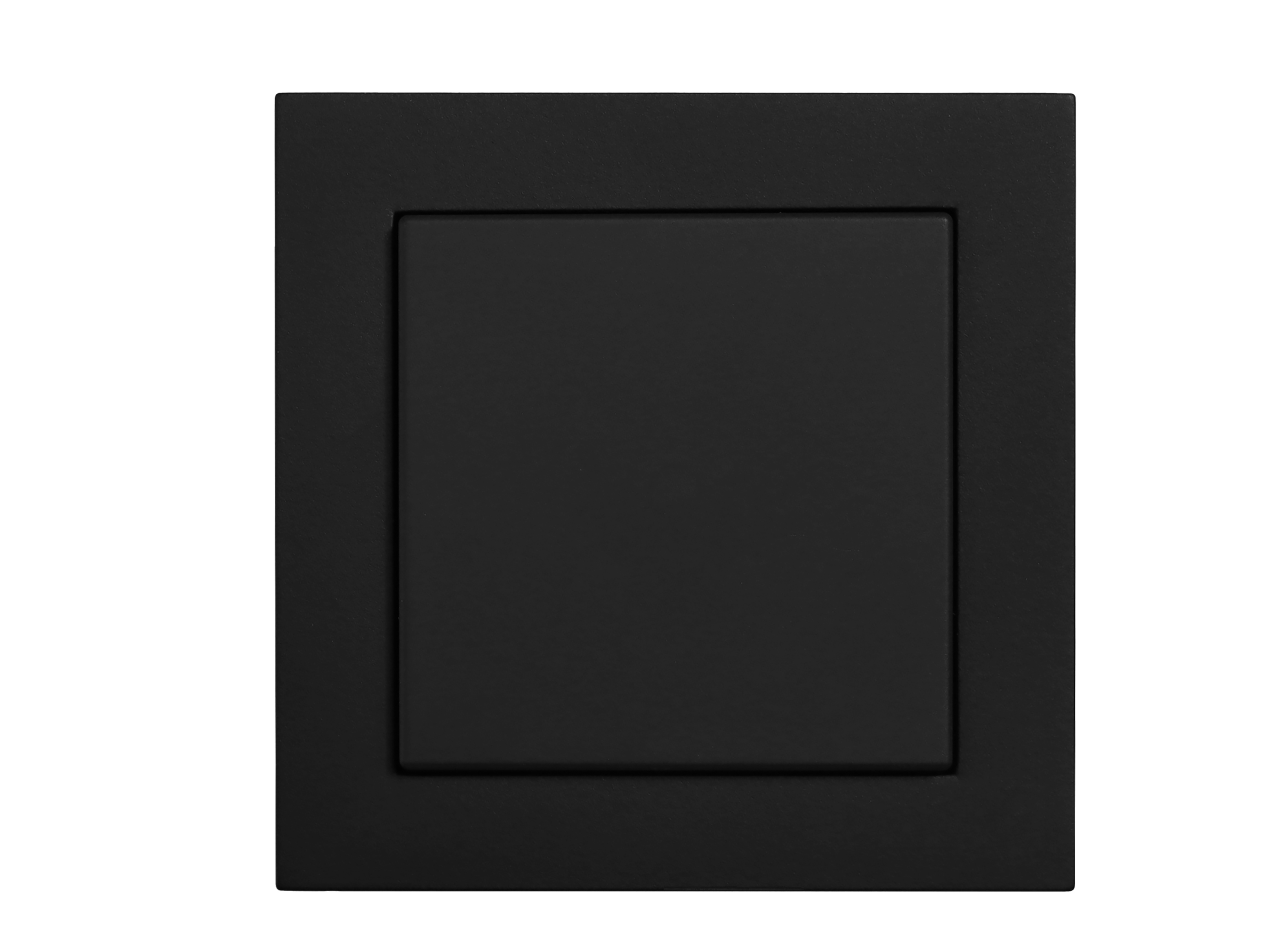

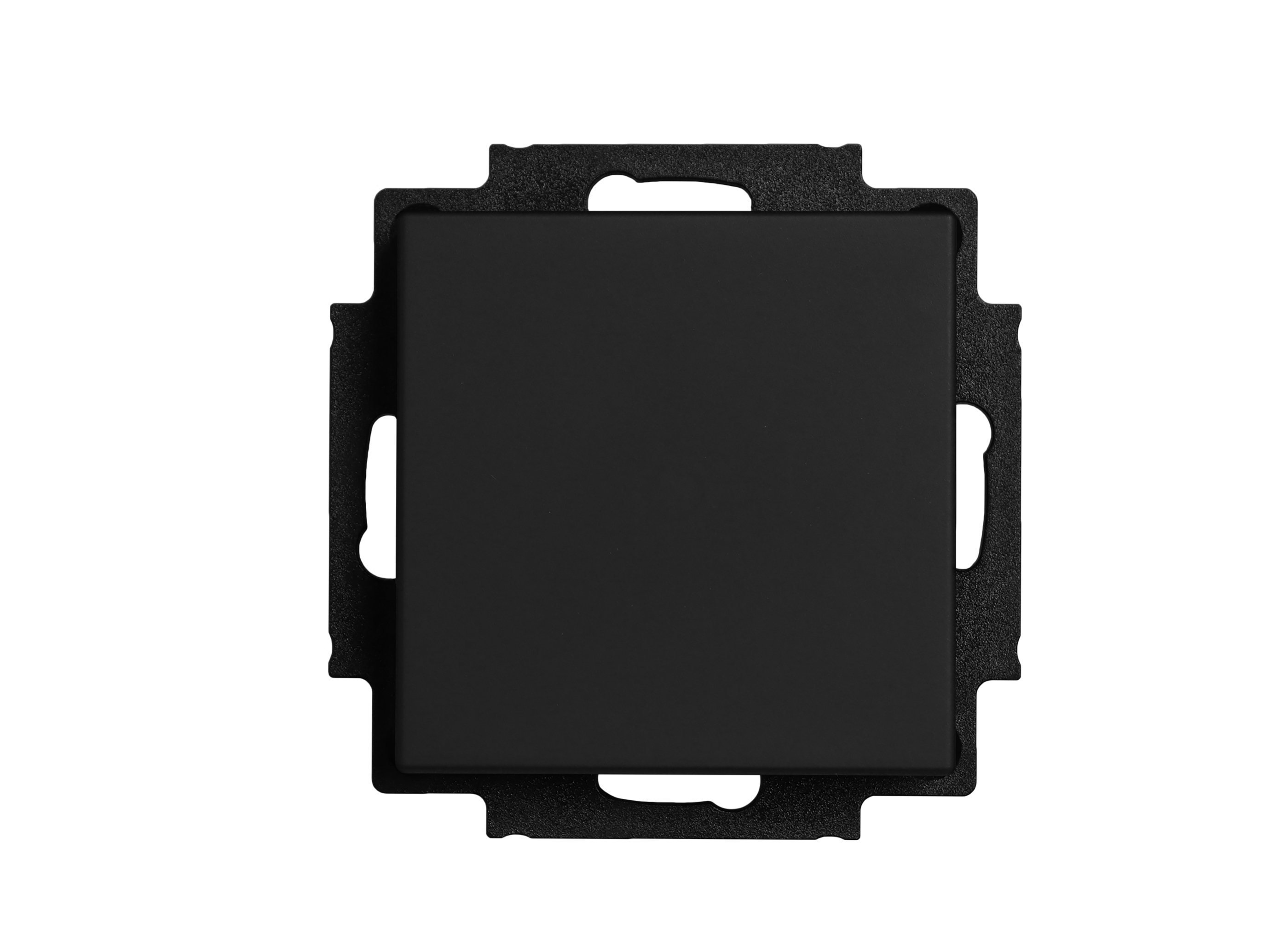

| TS 57.00 knx0 black | 4022709246257 | 24625 |
Overview
- Sensor for temperature measurement
- 2 separate temperature controls via KNX
- Temperature control with up to 4 sensor values possible
- Temperature sensor (Measuring range 0...50 °C)
- 3 analog outputs (0-10 V) and 3 binary inputs
- 1 input for external temperature sensor
- RGB, RGBW and Tunable White dimming function
- KNX Secure
- Updateable
- Clearly structured ETS
- Easy installation and mounting
- Modern design for flush mounting [55 mm]
- Fits in common switch range (55 x 55 mm)
- Party function
- Frame is not included in delivery
The 55 mm push-buttons from Müller are compatible with the switch programmes of leading manufacturers, including:
- GIRA Standard 55, E1, E2, E3, Event, Esprit, Studio
- BERKER B.3, B.7, S.1
- JUNG Serie A (A 550, A Plus, A FLOW, VIVA, A Creation), AS 500. Serie CD/LS with intermediate frame
- MERTEN System M (M-Pure, 1-M, M-Plan, M-Smart). System Design with intermediate frame
- BUSCH-JÄGER Balance SI. Future Linear, Art Linear with intermediate frame
