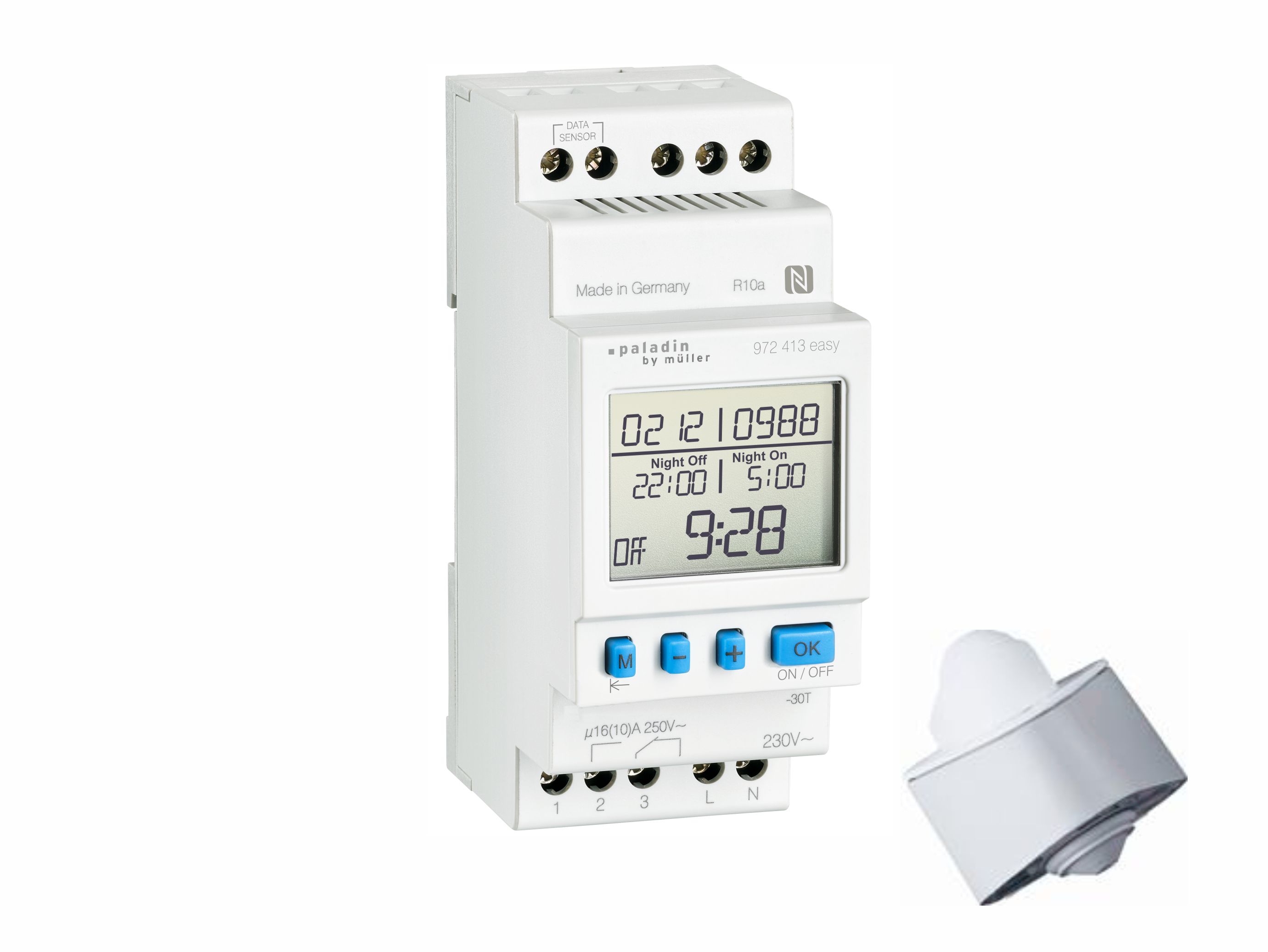

paladin 972 413 easy

Overview

Digital twilight switch with daily program
1 channel
Adjustable lux threshold (1–1,000 Lux)
Adjustable delay times
Adjustable light-hysteresis
2 memory locations
Integrated NFC
Programmable via App (iOS and Android)
10 years battery-reserve
Exchangeable battery (CR 2032)
Switching capacity 16 A
Manual permanent mode
Manuelle override
Fully automatic daylight saving time
Easy handling
Illuminated display
Security by PIN-Code
NFC programming (ISO 15693 Standard)

Highlights

Ideal for modern lamps [LED, CFL, etc.]
Complete switching program at a glance
Exchangeable battery (CR 2032) with 10 years battery reserve
Large, clear and illuminated display
Easy handling
Quick and intuitive programming
Can be programmed with supply disconnected
Programmable with NFC via smartphone (free Save'n carry App)

Intended use

The device fits for the particular use of the following tasks: light control for streets, outdoor stairs, shop windows, buildings etc.
Operate the device in a dry room only! (the sensor is mounted outdoors)
The installation must be in accordance with the instruction manual.
The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.

App to program the time switch:

Save 'n carry App (Apple App Store)

Save 'n carry App (Google Play Store)

In delivery:

Digital sensor
972 413 easy

Order information

	Voltage	EAN	Art. No.
972 413 easy	230 V 50-60 Hz	4022709230492	23049

Technical data

Supply voltage	230 V, 50–60 Hz
Power consumption (real power)	0,45–1,25 W (depending on the switching status)
Channel (potential-free)	Change-over, contact gap < 3 mm (µ)
Contact material	AgSnO₂
Switching capacity resitive load: inductive load:	16 A / 250 V~ at cosϕ=1 6 A bei at cosϕ=0,6
Min. switching power	1.000 mW (10 V / 10 mA)
Max. starting current	50 A max. 20 ms
Filament Lamp, Halogen Lamp	2.000 W
Fluorescent Lamp uncompensated	1.000 W
Fluorescent Lamp series compensated	1.000 W
Fluorescent Lamp parallel compensated	550 W
CFL	200 W
LED (230 V~) (LED lamps > 5W)	200W
Switching functions	Lux; Night OFF; Night ON
Adjustable lux threshold	1–50.000 Lux
Adjustable delay times	00:01 bis 09:59 mm:ss
Adjustable light-hysteresis	1–200 Lux
Memory locations	2
Time base	Quartz
Quartz accuracy (at 20 °C)	≤ ±0,5 sec./day (Quartz accuracy optimized for typical ambient conditions)
Power back-up (at 20 °C)	approx. 10 years (depends on the Lithium-battery life)
Program security	unlimited
Display	iluminated LCD-display
Permitted ambient temperature	Sensor unit –30…+50 °C Control unit –30…+50 °C
Housing	self-extinguishing thermoplastic
Dimensions	45 x 35 x 58 mm
Mounting	35 mm DIN-rail
Type of connection	Screw terminals (pull-up type)
Type of protection	Sensor unit IP 54 to DIN EN 60529 Control unit IP 20 to DIN EN 60529
Class of protection	II when installed according to regulations
Minimum requirement	Android: from Version 4.4 iOS: from Version 13.2.3, Modell: from IPhone7
Accessories (free download)	Programmable with smartphone via NFC: App - Save`n Carry
