Air quality controllers
Order numbers
GS 40.11 knxCO2- air quality sensor & controller
GS 40.11 knx
CO2- air quality sensor & controller
GS 41.11 knx
CO2- air quality sensor & controller with manual set-point temperature adjustment ± 3°C
Air quality sensors & controllers GS 40.11 / GS 41.11
Order information
| EAN | Art. No. | |

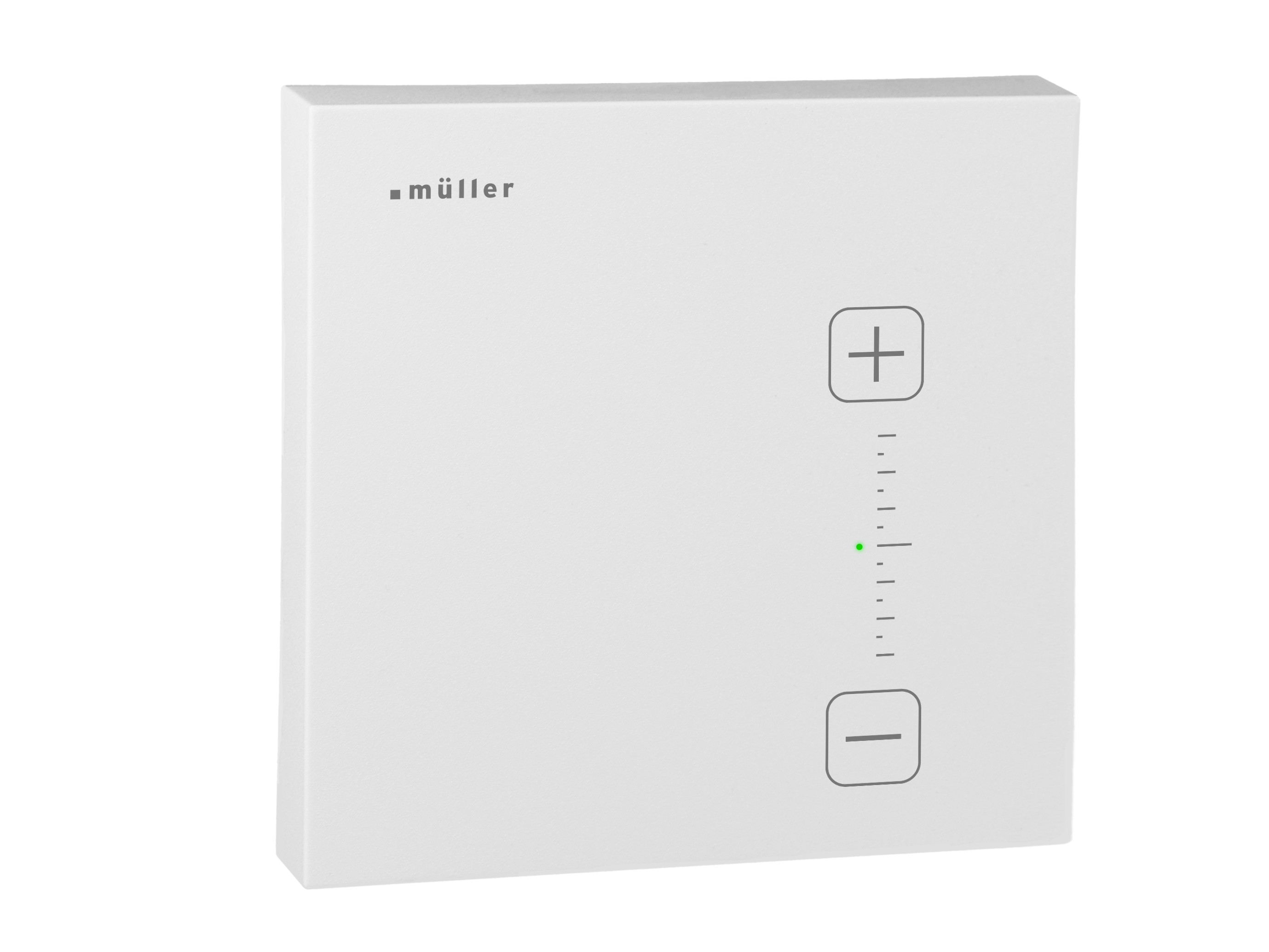

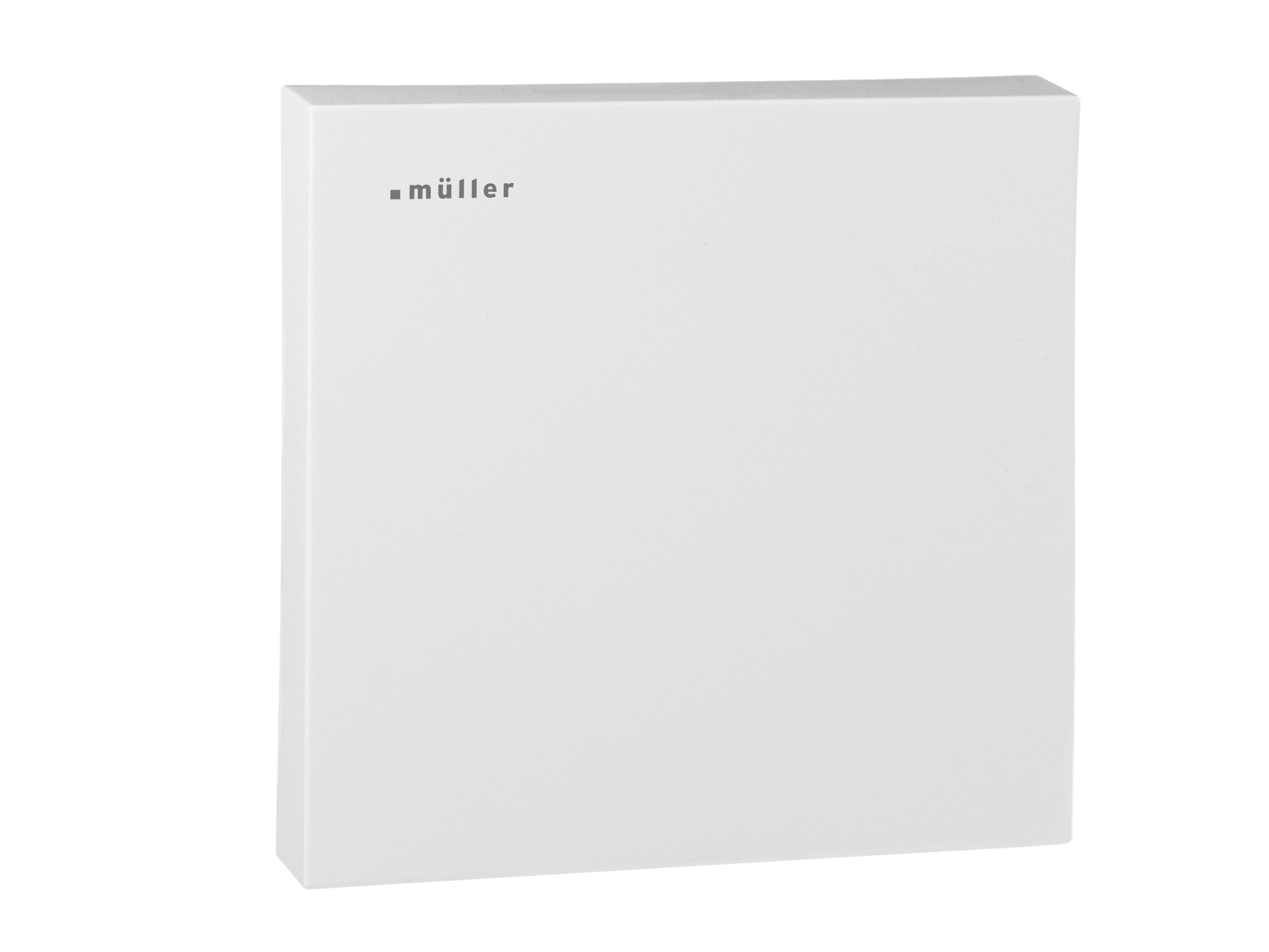

| GS 40.11 knx white | 4022709243003 | 24300 |
| GS 41.11 knx white | 4022709243010 | 24301 |

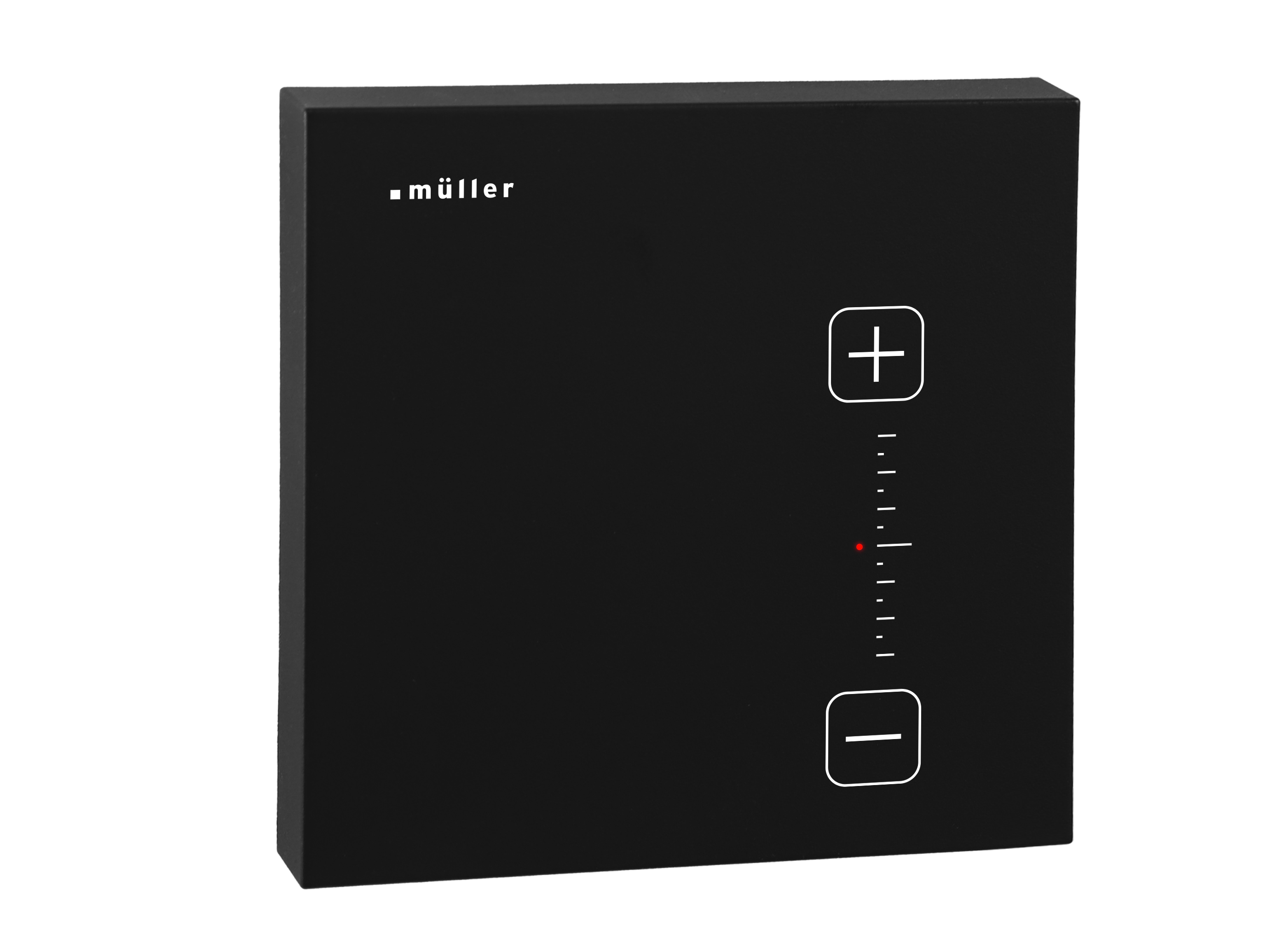

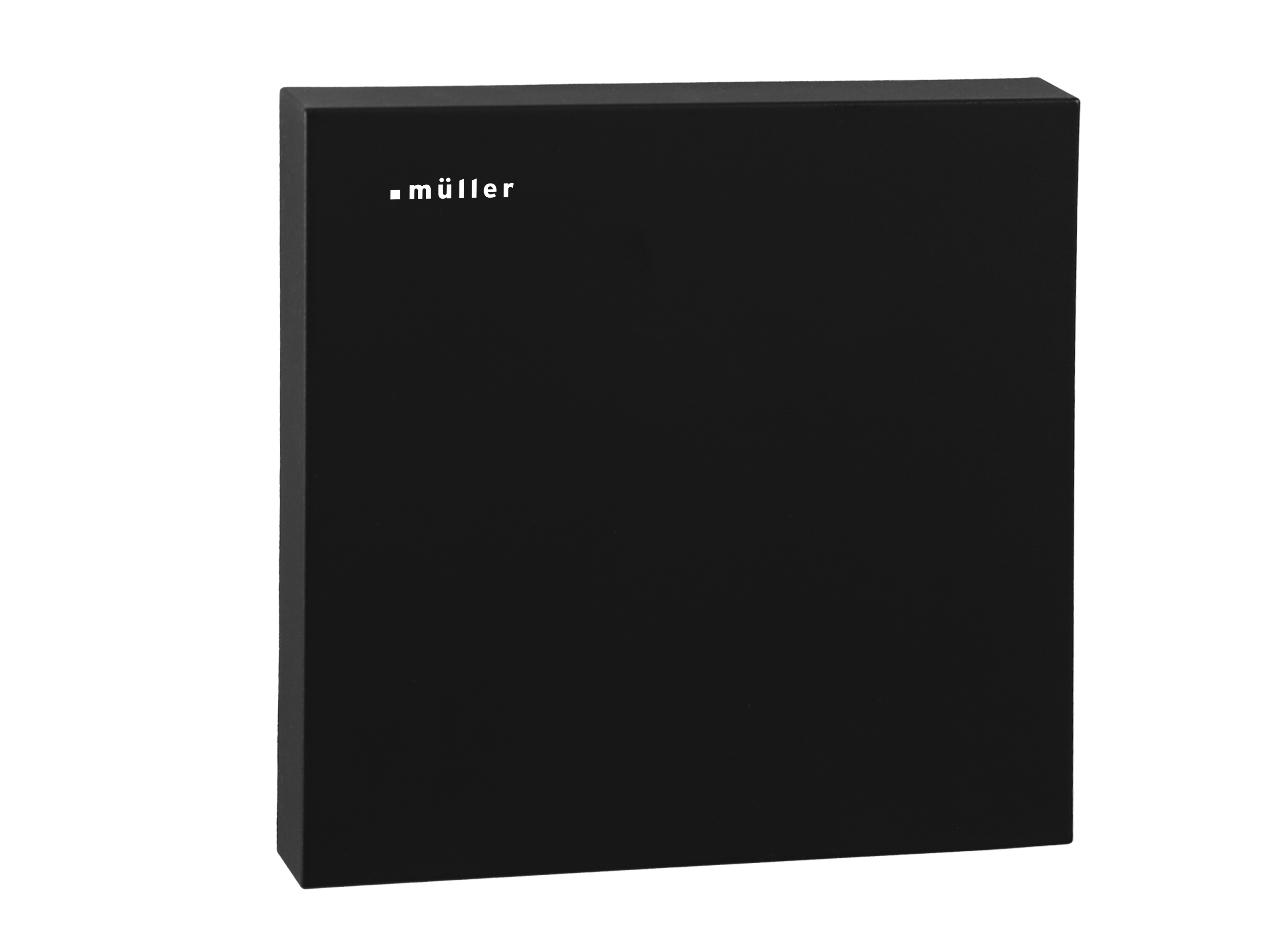

| GS 40.11 knx black | 4022709243089 | 24308 |
| GS 41.11 knx black | 4022709243096 | 24309 |
Overview
- Detection of air quality
(CO2-concentration, rel. humidity, temperature) - CO2-sensor (Measuring range 390...5.000 ppm air pressure compensated)
- CO2-value is atmospheric pressure compensated
- Sensors for CO2-, temperature, humidity and atmospheric pressure measurement
- Temperature sensor (Measuring range 0...+50 °C)
- Humidity sensor (Measuring range 0...100 % rel. humidity)
- Humidity comparator function
- 5 binary and analogue inputs (e.g. for connecting an external temperature sensor)
- Clearly structured ETS
- Easy installation and mounting
- Modern and planar design
- Wall mounting [80 mm]
- Party function
- Extension of the value range of setpoints
- Temperature control with up to 4 sensor values possible
- Additional VAV controller
- and much more
- Additionally at GS 41.11 knx:
manual adjustment of set-point temperature via touch panel (adjustment range ± 3°, increment 0,5°)
