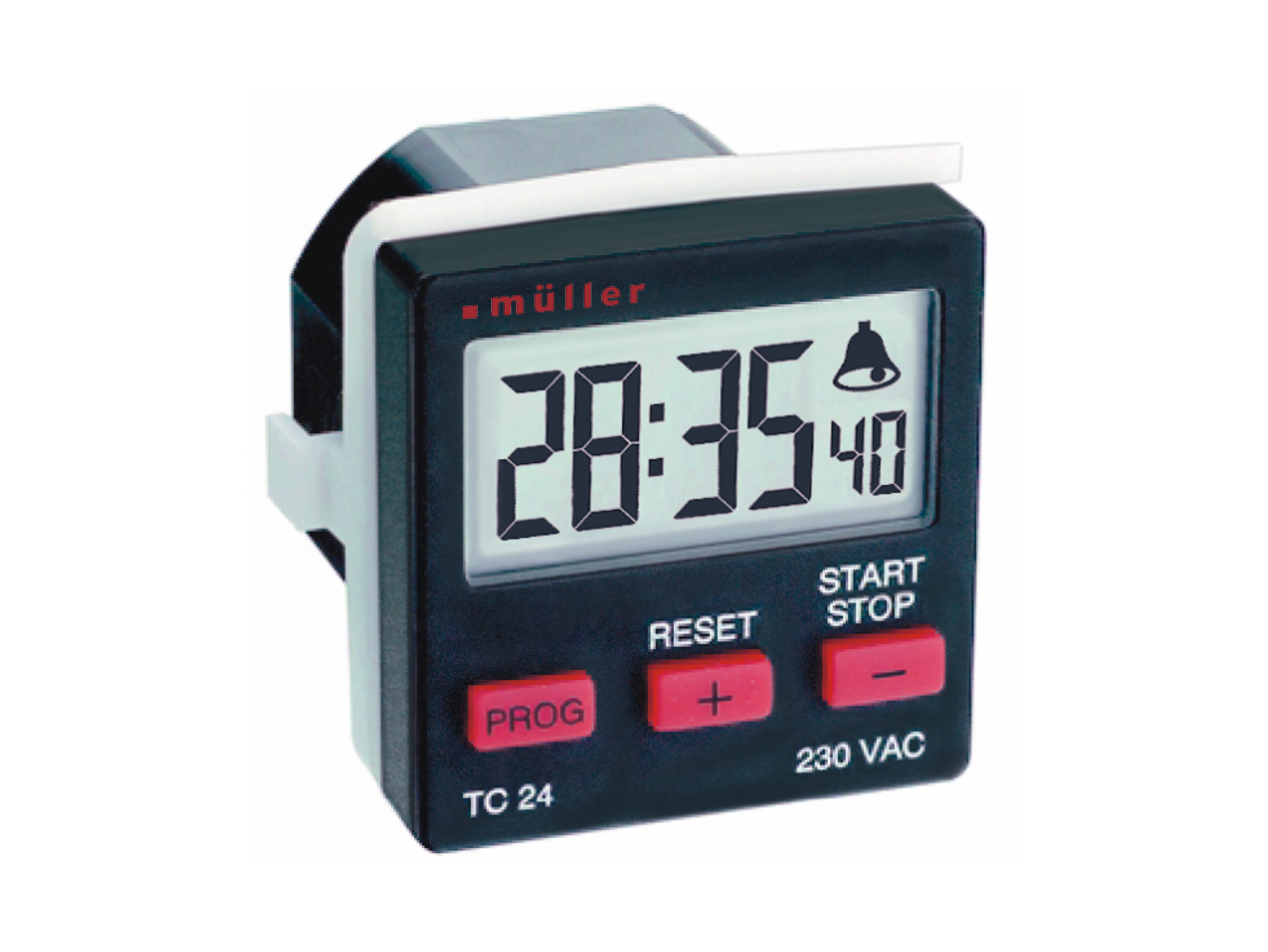

müller TC x4.21

Overview

The device fits for the particular use of the following tasks: sequence control: an application is activated or deactivated in a device or plant for a certain time.
Operate the device in a dry room only!

	Voltage	EAN	Art. No.
TC 14.21	230 V 50-60 Hz	4022709214393	21439
TC 24.21	230 V 50-60 Hz	4022709220530	22053
TC 24.21	24 V ACDC	4022709214416	21441
Other supply voltage versions on request

Supply voltages	230 V, 50–60 Hz
Power consumption (real power)	0,7 W
Channel (phase voltage)	Change-over (monostable), contact gap < 3 mm (μ)
Contact material	AgNi
Switching capacity resistive load: inductive load:	8 A / 250 V~ at cosϕ=1 6 A at cosϕ=0,6
Min. switching power	300 mW (5 V / 5 mA)
Max. starting current	30 A
Filament Lamp, Halogen Lamp	400 W
Fluorescent Lamp with electron. lamp ballast	100 W
Fluorescent Lamp with convent. lamp ballast	100 W
LED (230 V~) / CFL	50 W
Input	Start / Stop (phase voltage)
Maximum set time: TC 14: TC 24:	09:59:59 hh:mm:ss 99:59:59 hh:mm:ss
Minimum set time	1 Sec.
Accuracy of reading	1 Sec.
Time base	Quartz
Quartz accuracy (at 20 °C)	≤ ±0,5 Sec./day (Quartz accuracy optimized for typical ambient conditions)
Data storage	unlimited (E²-Prom)
Display	LCD 15 mm (7,5 mm) high numerals
Permitted ambient temperature	-10...+50 °C
Housing	self extinguishing thermoplastic
Dimensions	48 x 48 mm (to DIN EN 43700)
Mounting	Panel
Mounting aperture	Square: 45 x 45 mm Circle: Ø 50,5 mm
Type of connection	Screw clamps
Type of protection	IP 20 to DIN EN 60529
Class of protection	II when installed according to regulations
