Digital yearly timer
Order numbers
SC 38.10 pro51 channel version
SC 38.10 pro5
1 channel version

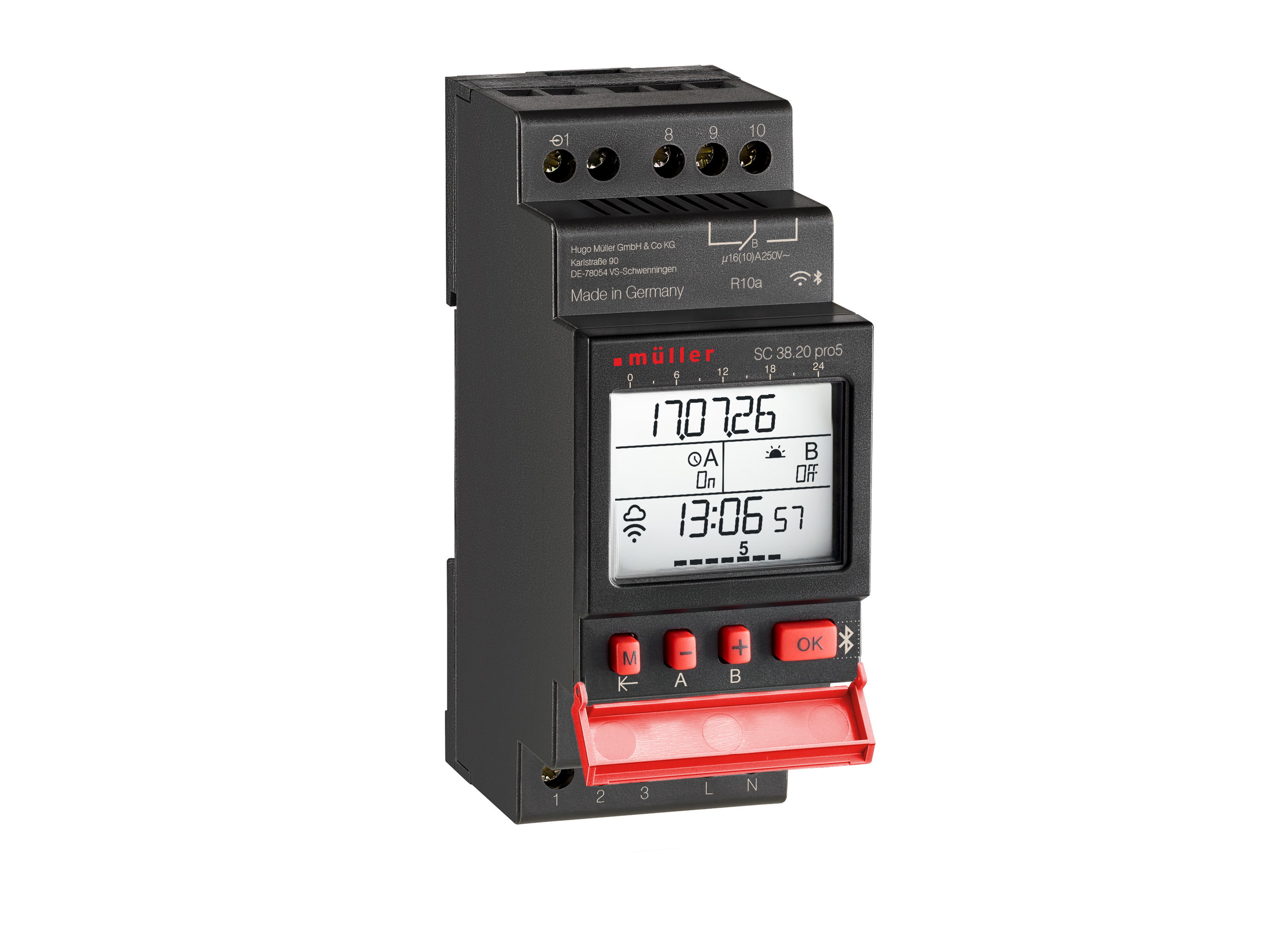

SC 38.20 pro5
2 channel version
müller SC 38.x0 pro5
Overview
- 1 or 2 channels
- Daily, weekly, astro and yearly program
- 300 memory locations
- WLAN and Bluetooth integrated
- Programmable and controllable via app (iOS and Android)
- 10 years battery-reserve
- Exchangeable battery (CR 1620)
- Zero-cross switching
- Up to 600 W LED lamp load
- Switching capacity 16 A per channel
- Cycle and random function
- External input (switch or push button)
- Timer function
- Additional switching times ON, OFF, pulse, and cycle by date and time
- Permanent switching by date and time / holiday program
- Up to 10 special programs possible
- Manual permanent switching
- Manual override switching
- Automatic daylight-saving time adjustment
- Operating hours and switching pulse counter
- Easy handling
- Illuminated display
- Security by PIN-Code
Highlights
- Programmable and controllable with smartphone via WiFi and Bluetooth (free iOS and Android app) as well as directly on the time switch via the integrated display
- Mobile access via cloud
- Supports multi-user access for collaborative programming and operation via cloud
- The external input can be freely assigned to the switching channels
- Daily, weekly, astro and yearly program
- Astro program with 3 functions: standard, inverted, and pulse
- Yearly program with 3 functions: standard, Easter, and year
- Quartz accuracy (at –30 to +55 °C) is ≤ ±0.5 s/day
- Fast and intuitive programming
- Data security through non-volatile memory
Intended use
- The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
- Operate the device in a dry room only!
- The installation must be in accordance with the instruction manual.
- The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.
Supply voltage versions
- 110-230 V, 50-60 Hz
- 12-24 V ACDC
