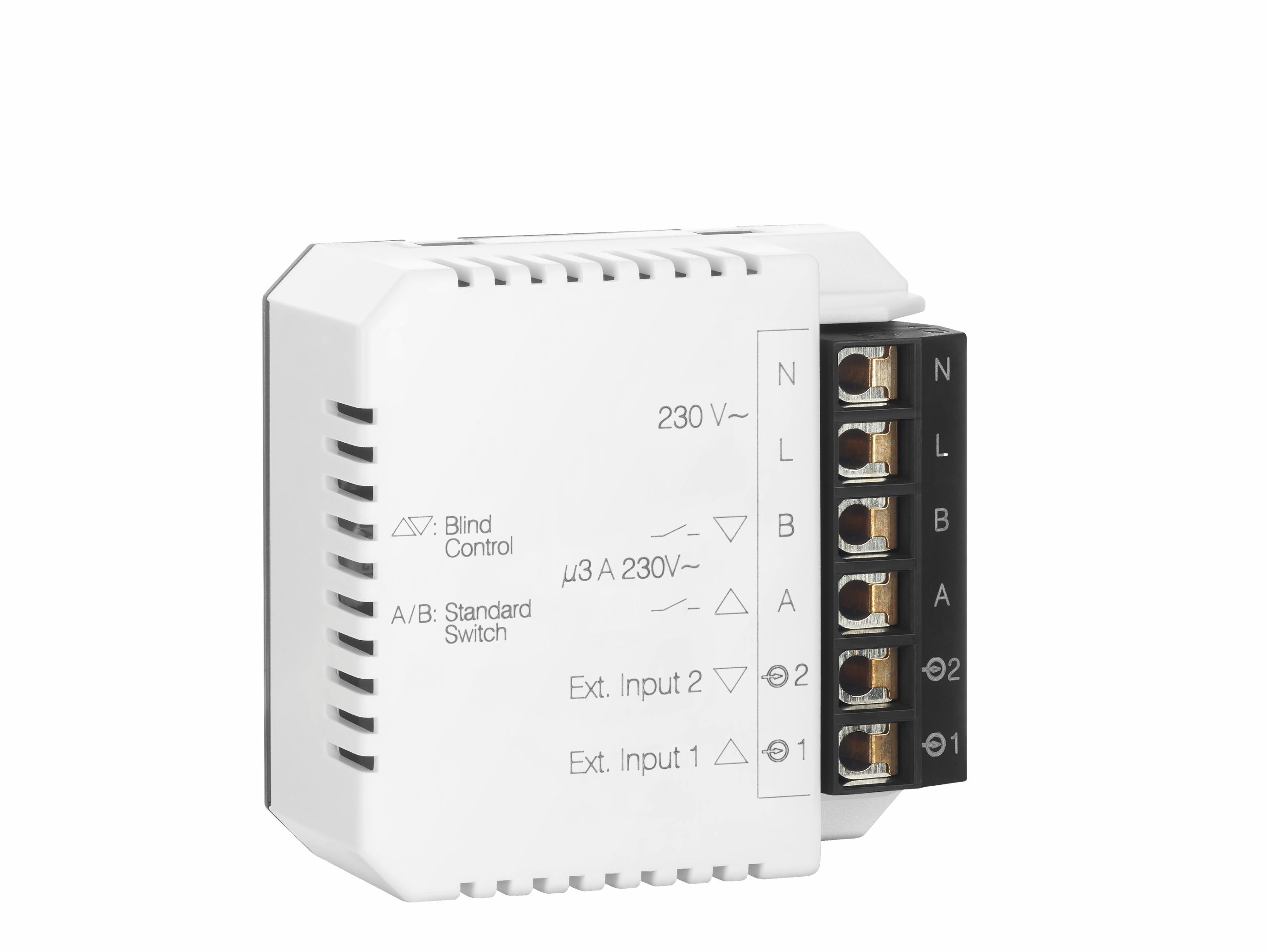

müller EA 46.22 pro4 mi.puck switch
Overview
- Multifunctional device (remote-controllable)
- Universal control
- Time switch week
- Time switch astro
- Blind control
- Clock thermostat (with LS 20.00 pro4)
- Hygrostat (with LS 20.00 pro4) - 2 output channels 230 V~
- 2 inputs 230 V~ for push-buttons or switches
- Switching capacity 6 A in total
- Fully automatic daylight saving time
- approx. 10 years reserve
- Bluetooth Mesh Technology
- Programmable and controllable via app (iOS and Android)
- Remote control possible via gateway
- Switching program can be deactivated via app
- Up to 75 m range
- Protection against overheat
- Flush-mounted fitting
- Compact housing
Time switch week
- 2 output channels 230 V~
- 100 memory locations
- Minimum interval 1 min.
- Extra switching times ON, OFF and pulse by date and time
- Permanent by date and time
- Pulse length Pulse function (switching time)
00:01 up to 59:59 mm:ss - Output functionality adjustable and depending on input signal:
- Change function between ON and OFF
- Timer function (e.g. staircase lighting, ventilation) - Option advance warning (application staircase lighting timer)
- 3 modes of operation: automatic, manual, random function
Time switch astro
- 2 output channels 230 V~
- 100 memory locations
- Minimum interval 1 min.
- Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed
- Permanent by date and time
- Output functionality adjustable and depending on input signal:
- Change function between ON and OFF
- Timer function (e.g. staircase lighting, ventilation) - Option advance warning (application staircase lighting timer)
- 2 modes of operation: automatic and manual
Blind control / roller shutter control
- 2 output channels UP / DOWN 230 V~
- 2 memory locations per day
- Astrofunction
- Movement duration for DOWN adjustable
- Limitation of switching times adjustable
- Option reverse movement pulse
- 3 modes of operation: automatic, manual, random function
- Adjustable brightness value for automatic shading (with LS 20.00 pro4)
Clock thermostat with weekly program (with LS 20.00 pro4)
- 2 adjustable set values: Eco and Comfort (10...30 °C)
Hygrostat with weekly program (with LS 20.00 pro4)
- Adjustable set value 40...95% relative humidity
