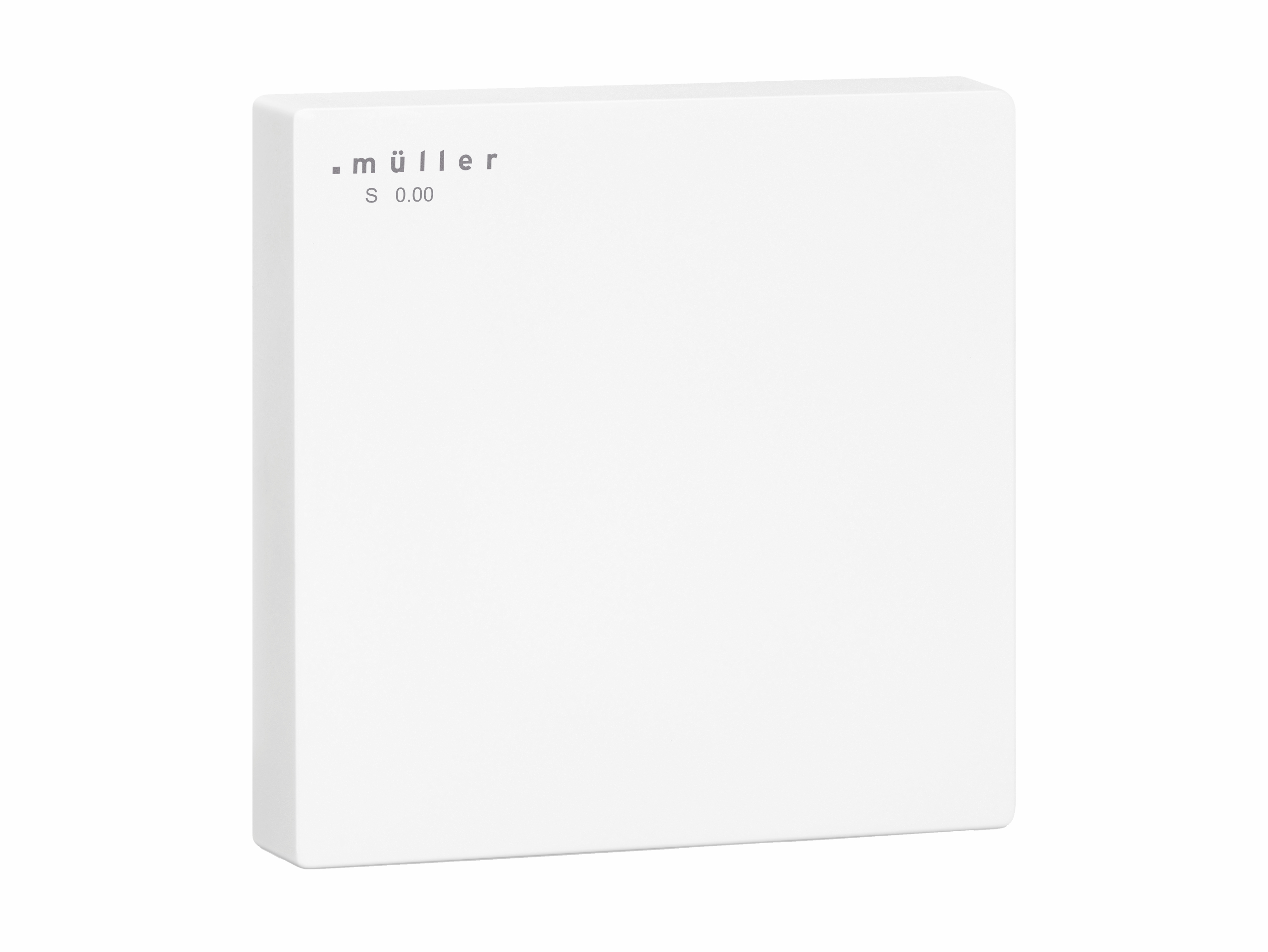

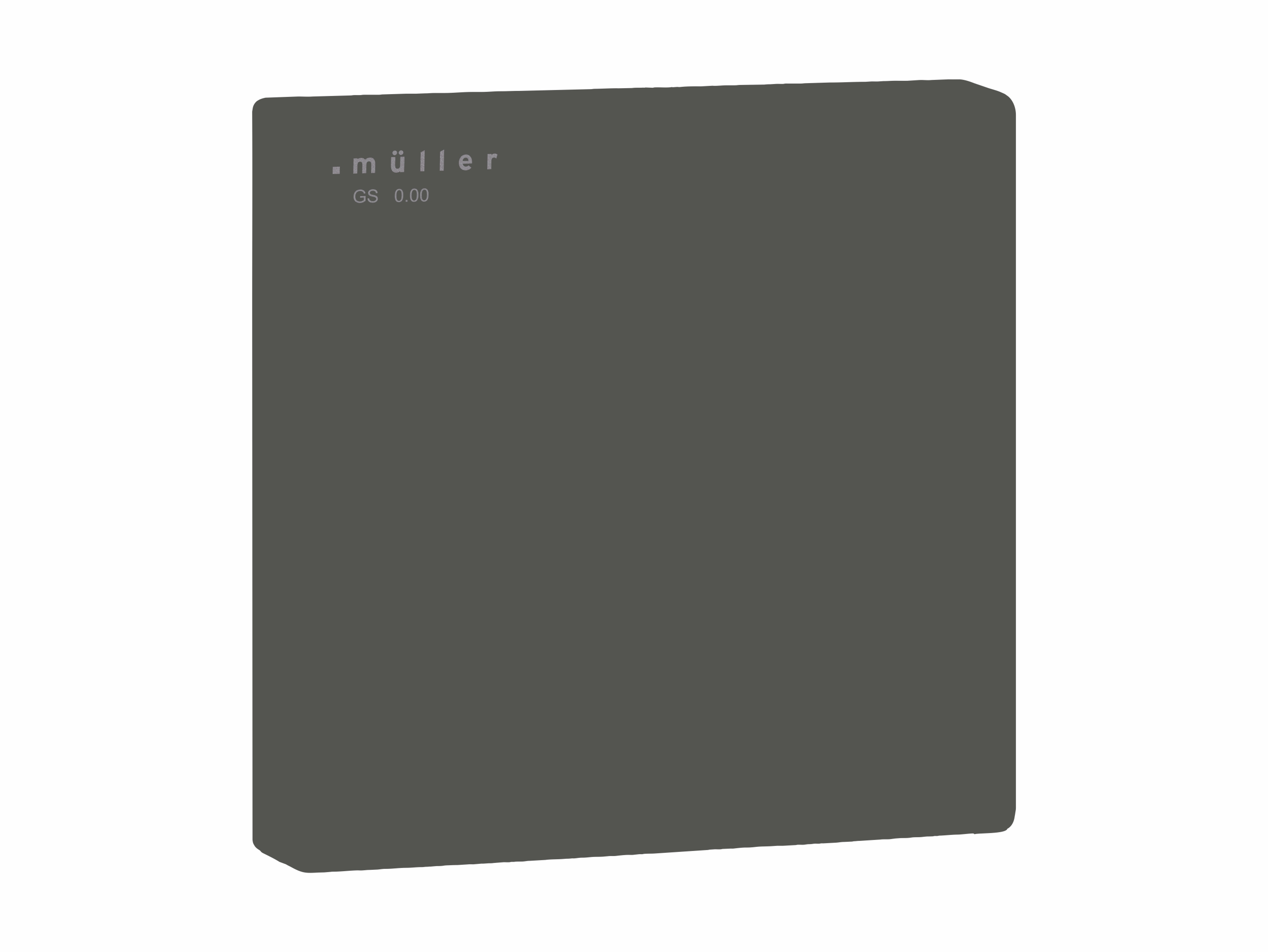

Raumtemperatursensor mit Hygrostat GS 30.00 pro

Overview

	EAN	Art. No.
GS 30.00 pro	4022709243836	24383

Supply voltage	24 V ACDC
Sensors	Temperature Relative humidity Atmospheric pressure Dew point
Measuring range temperature	0°...+50° C
Measuring range relative humidity	0...100%
Measuring range atmospheric pressure	300-1.100 hPa
Outputs	2x analogue outputs ( 0-10 V )
Analogue measurement output	Temperature: 0-50° C Relative humidity: 0-100%
Permitted ambient temperature	0°...+50° C
Housing	self-extinguishing thermoplastic
Dimensions	80,5 x 80,5 x 17 mm
Housing color	studio white (similar to RAL 9016) Specific colors on request
Mounting	Wall mounting (preferrably combined with flush-mounting box)
Type of connection	Push-in connector
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations
