numéros de commande

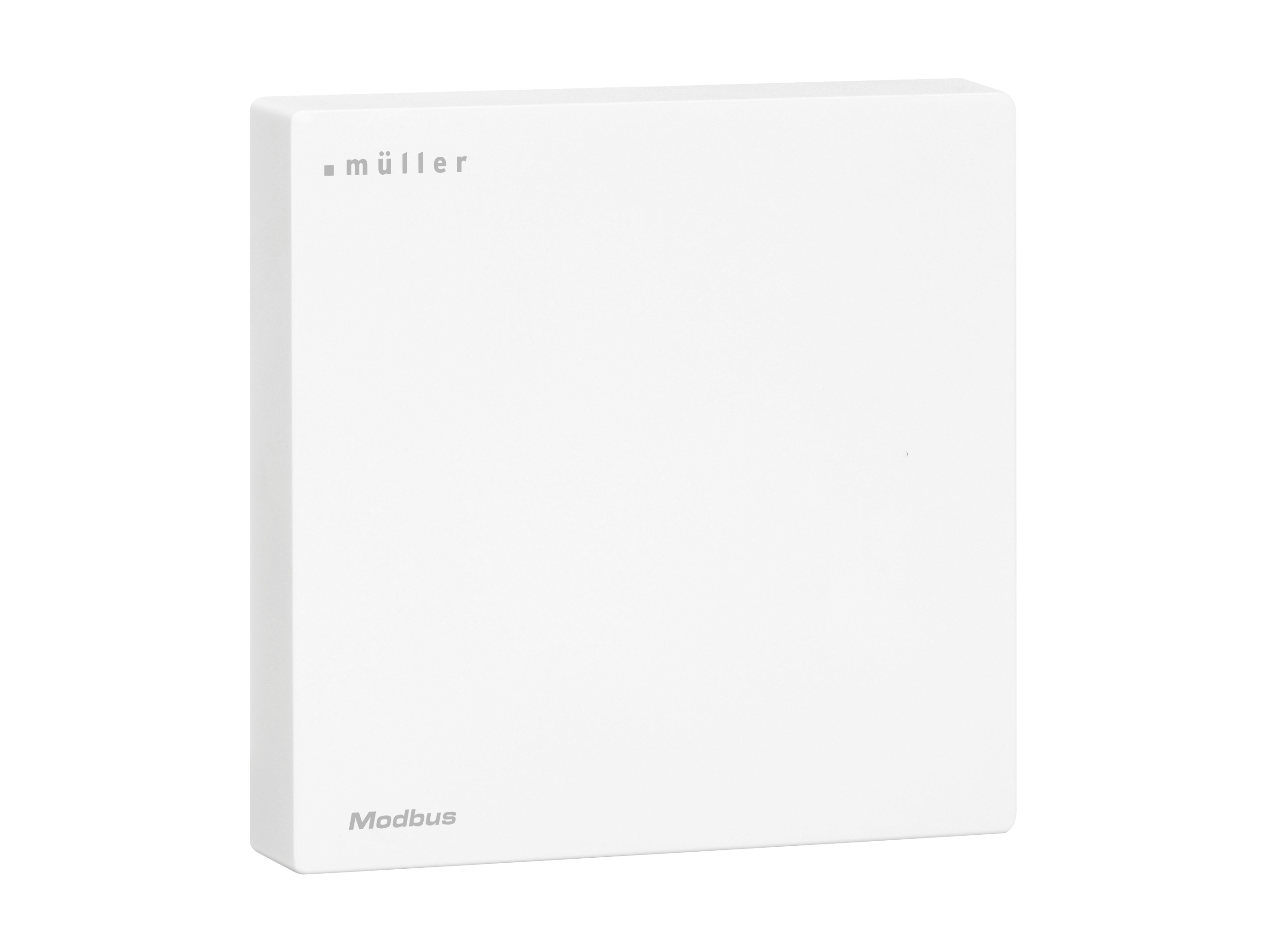

GS 40.40 mod

CO₂-Luftgüte-
Raumklimasensor

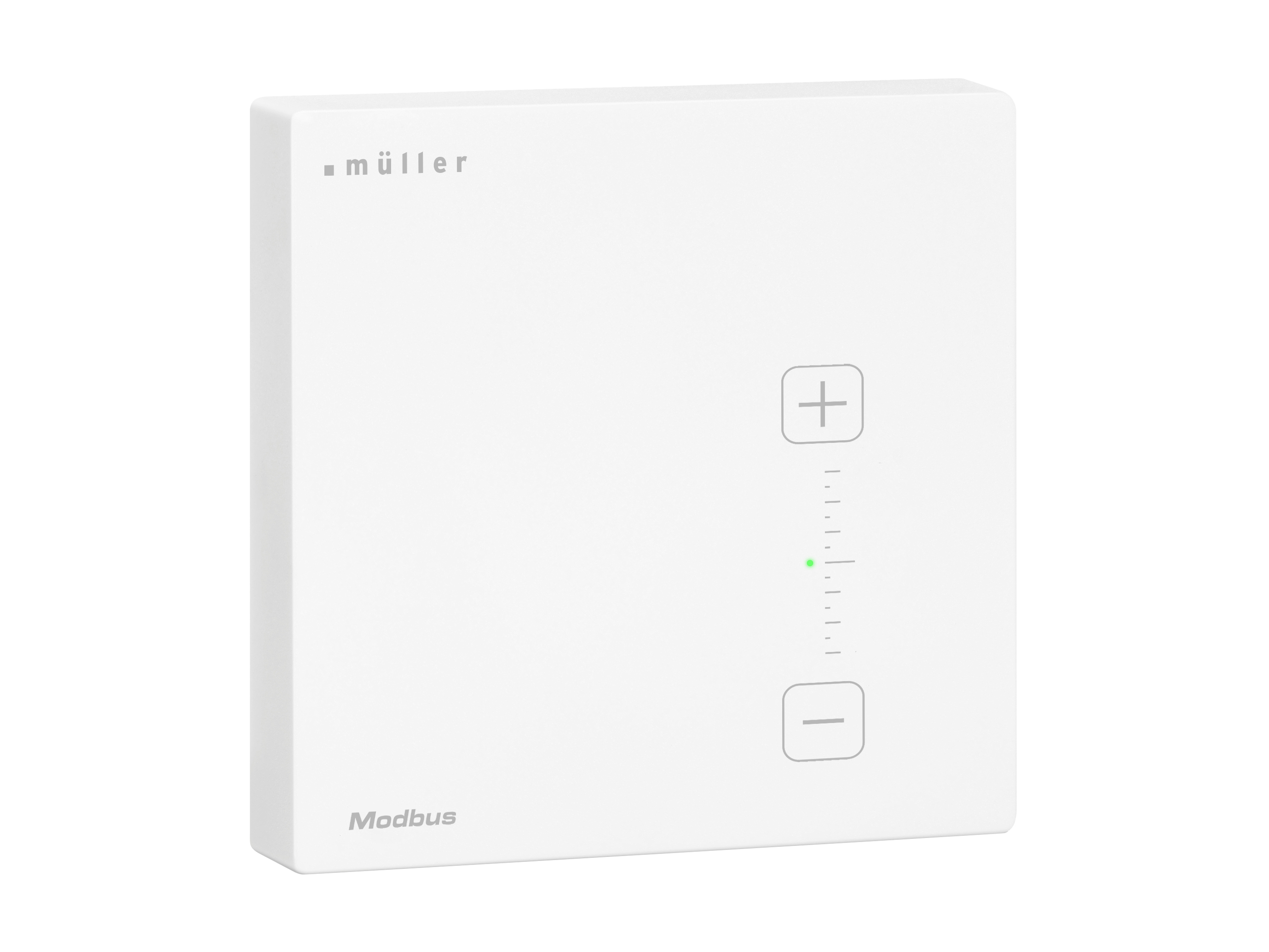

GS 41.40 mod

CO₂-Luftgüte-
Raumklimasensor mit man.
Solltemperatur-Änderung

Accessories

Rückwand für Aufputz-Verkabelung 200.004

TF06 capteur de température

Raumklimaregler / Luftgütesensoren
GS 40.40 mod /
GS 41.40 mod

APERÇU

DONNÉES TECHNIQUES

TÉLÉCHARGEMENTS

imprimer la
page de produits

Overview

Detection of air quality
(CO₂-concentration, rel. humidity, temperature)
CO₂-sensor (Measuring range 425...5.000 ppm)
CO₂-value is atmospheric pressure compensated
Sensors for CO₂-, temperature, humidity and atmospheric pressure measurement
Temperature sensor (Measuring range 0...+50 °C)
Humidity sensor (Measuring range 0...100% rel. humidity)
Modbus-Modes (ASCII / RTU) configurable
2 Control outputs (0-10 V)
2 Control outputs (FET)
1 input for external temperature sensor
Easy installation and mounting
Modern and planar design
Wall mounting [80 mm]

Order information

	EAN	Art. No.
GS 40.40 mod	4022709246233	24623
GS 41.40 mod	4022709246240	24624

Technical data

Supply voltage	20-28 V DC 50-60 Hz
Power consumption	<30 mA
Bus system	Modbus ASCII, Modbus RTU via RS 485
Baud rates	4800, 9600, 19200 (Default), 38400
Parity settings available	None, even, odd
Sensors	CO₂ Temperature Relative humidity Atmospheric pressure Dew point
Outputs 2x 0-10 V	max. 2mA
Outputs 2x FET	Inrush current: max 1.2A Permanent current: max. 350mA
Inputs	External temperature sensor (can alternatively be used as a contact input)
Measuring range CO₂-concentration	425-5.000 ppm
Measuring range temperature	0...+50° C
Measuring range relative humidity	0...100%
Measuring range atmospheric pressure	300-1.100 hPa
Permitted ambient temperature	0...+50° C
Housing	self-extinguishing thermoplastic
Dimensions	80,5 x 80,5 x 17 mm
Housing color	studio white (similar to RAL 9016) Specific colors on request
Mounting	Wall mounting (preferrably combined with flush-mounting box)
Type of connection	Screw terminals
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations

Functions and data provided to Modbus:

CO₂	Value output
Temperature	Value output
Relative humidity	Value output
Air pressure	Value output
Dewpoint	Value output
and much more...
