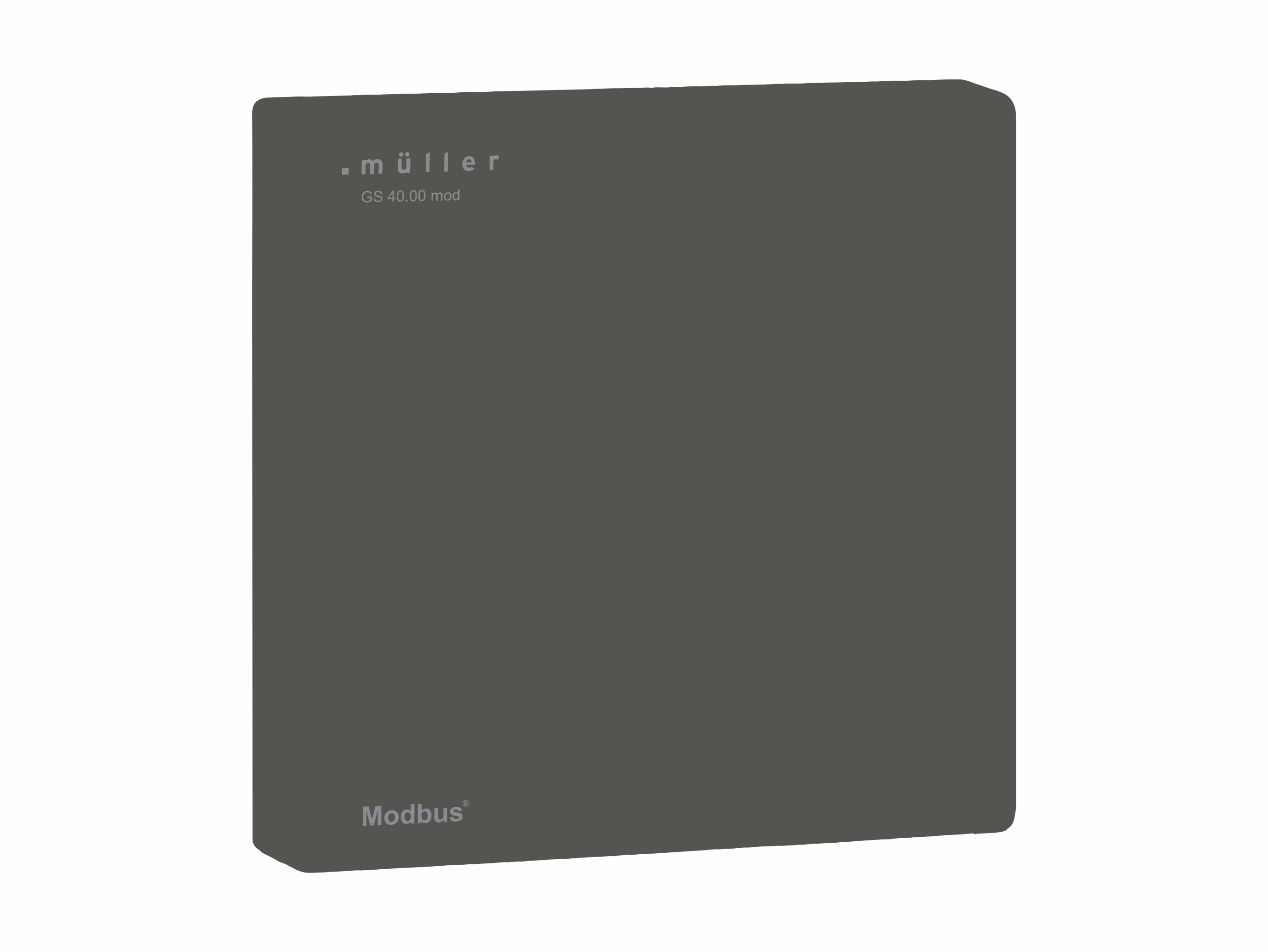

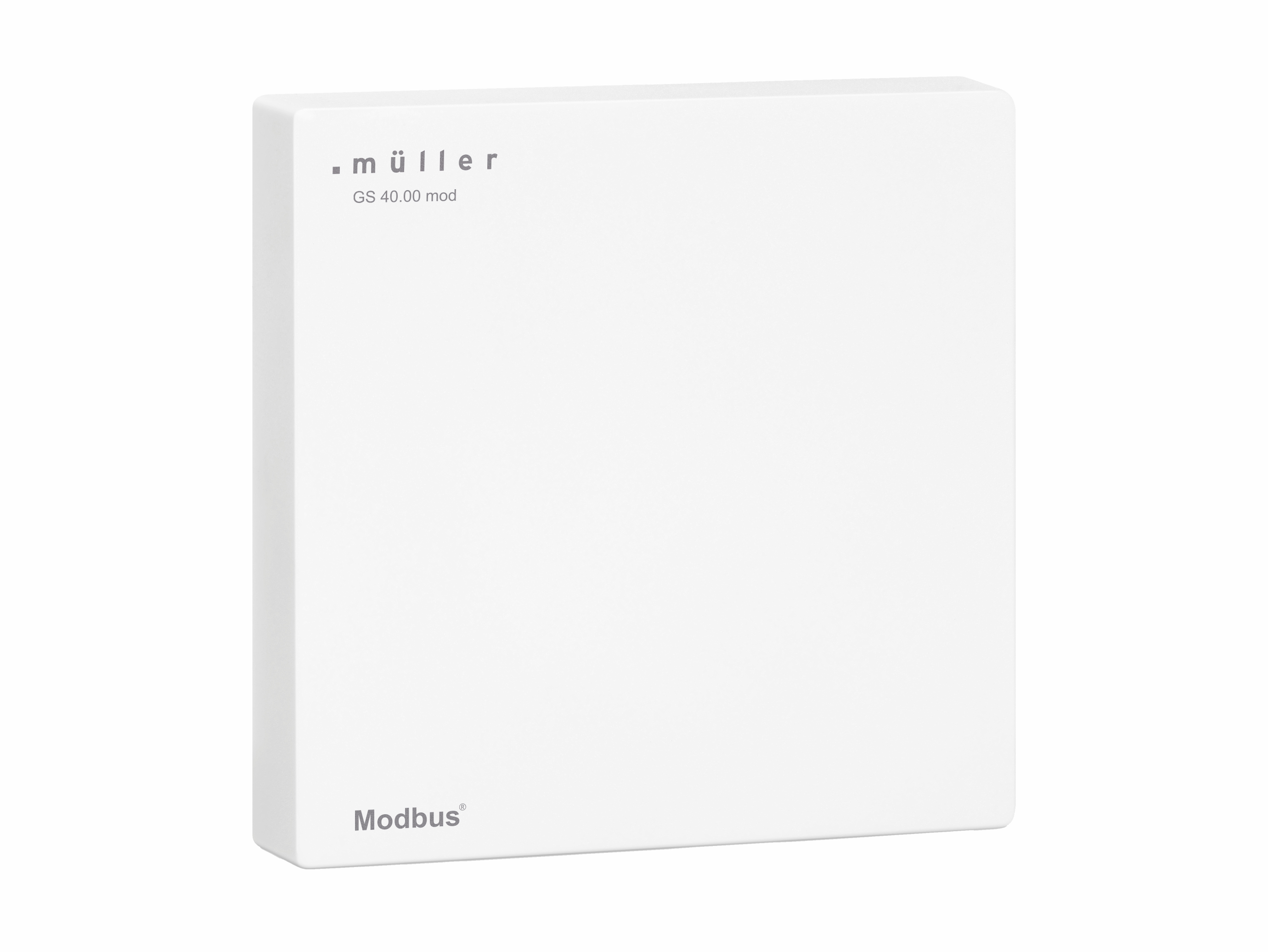

Raumklima- / Luftgütesensor GS 40.00 mod

Overview

Every person is emitting CO2 and aerosols e.g. during breathing. Today aerosols are claimed to be one of the transmission ways of SARS-CoV-2. CO2-concentrations can be measured and the correlation between the CO2 and the aerosol concentration can be used for analytical investigations, which use the measured CO2-concentration to calculate a likely aerosol concentration. (TU Berlin)
A longer stay in small, bad or not vantilated room can increase the probability of a Covid-19 spread by aerosols even on bigger distances over 2 m. (RKI)
The use of our CO₂-sensors and the resulting room ventilation helps minimizing the risk of infection e.g. in schools or offices, gyms, restaurants or other premises where several people stay together.

	EAN	Art. No.
GS 40.00 mod	4022709238757	23875

Supply voltage	12-40 V DC
Bus current	<20 mA
Bus system	Modbus ASCII, Modbus RTU via RS 485
Baud rates	4800, 9600, 19200 (Default), 38400
Parity settings available	None, even, odd
Sensors	CO₂ Temperature Relative humidity Atmospheric pressure Dew point
Measuring range CO₂-concentration	390-5.000 ppm
Measuring range temperature	0...+50° C
Measuring range relative humidity	0...100%
Measuring range atmospheric pressure	300-1.100 hPa
Permitted ambient temperature	0...+50° C
Housing	self-extinguishing thermoplastic
Dimensions	80,5 x 80,5 x 17 mm
Housing color	studio white (similar to RAL 9016) or jet black (similar to RAL 9005) Specific colors on request
Mounting	Wall mounting (preferrably combined with flush-mounting box)
Type of connection	Push-in connector
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations
