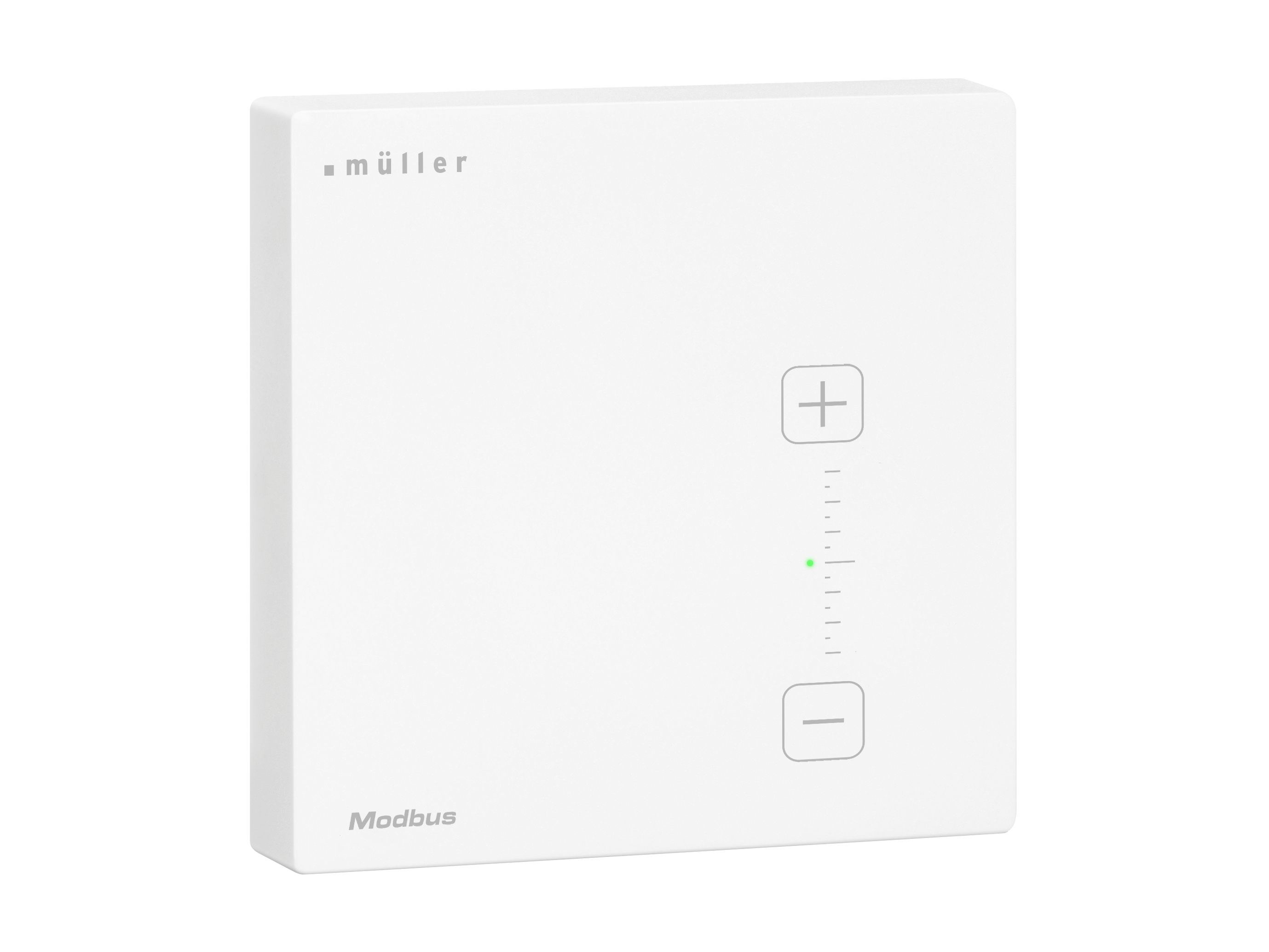

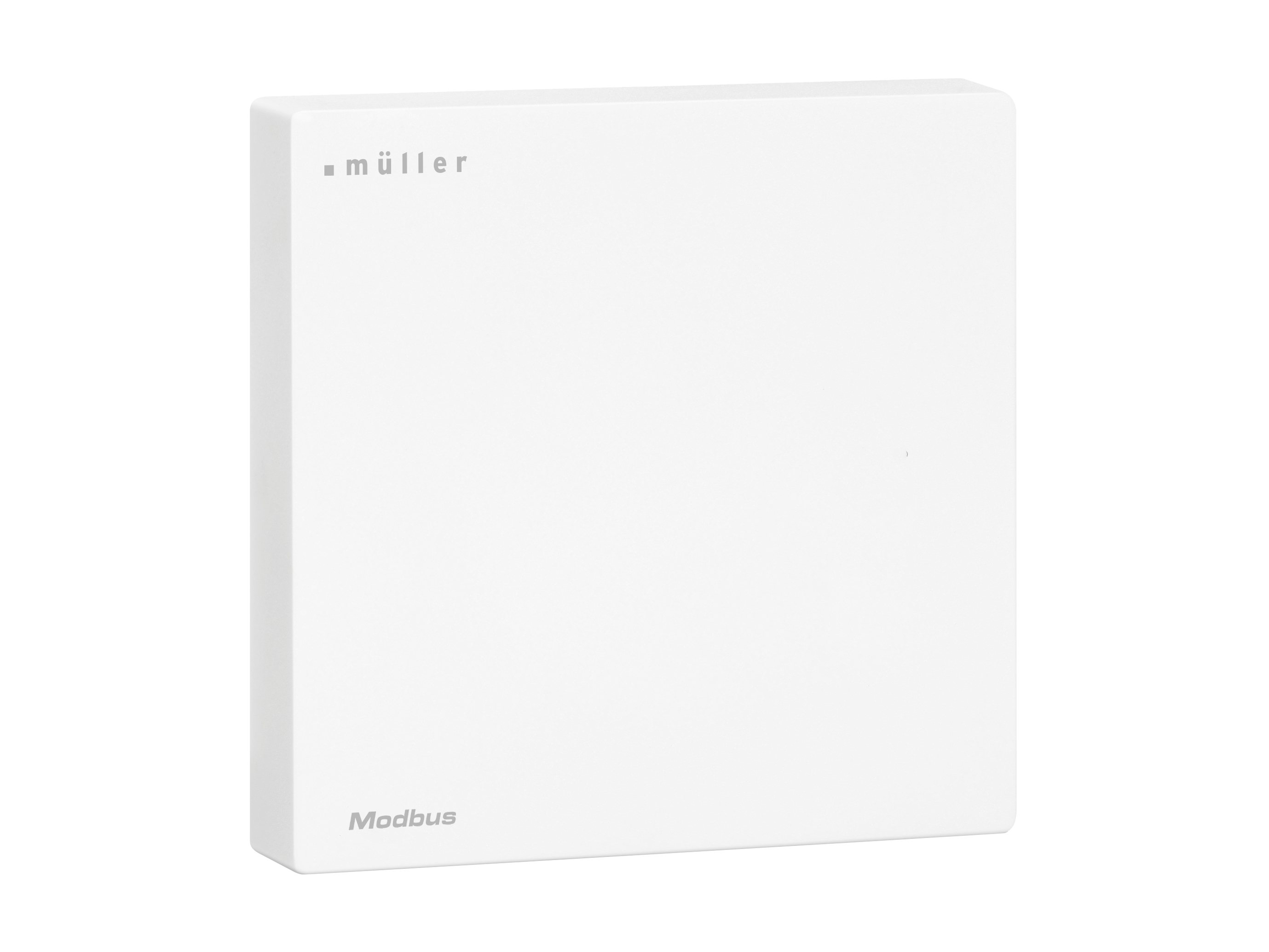

Raumtemperatursensor TS 30.40 mod / TS 31.40 mod

Overview

Supply voltage	20-28 V DC 50-60 Hz
Power consumption	<30 mA
Bus system	Modbus ASCII, Modbus RTU via RS 485
Baud rates	4800, 9600, 19200 (Default), 38400
Parity settings available	None, even, odd
Sensors	Temperature
Outputs 2x 0-10 V	max. 2mA
Outputs 2x FET	Inrush current: max 1.2A Permanent current: max. 350mA
Inputs	External temperature sensor (can alternatively be used as a contact input)
Measuring range temperature	0...+50° C
Permitted ambient temperature	0...+50° C
Housing	self-extinguishing thermoplastic
Dimensions	80,5 x 80,5 x 17 mm
Housing color	studio white (similar to RAL 9016) Specific colors on request
Mounting	Wall mounting (preferably combined with flush-mounting box)
Type of connection	Screw terminals
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations

Temperature	Value output
