| Supply voltage |
12-40 V DC |
| Bus current |
<20 mA |
| Bus system |
Modbus ASCII, Modbus RTU via RS 485 |
| Baud rates |
4800, 9600, 19200 (Default), 38400 |
| Parity settings available |
None, even, odd |
| Sensors |
Temperature |
| Measuring range temperature |
0...+50° C |
| Permitted ambient temperature |
0...+50° C |
| Housing |
self-extinguishing thermoplastic |
| Dimensions |
80,5 x 80,5 x 17 mm |
| Housing color |
studio white (similar to RAL 9016)
Specific colors on request |
| Mounting |
Wall mounting
(preferrably combined with flush-mounting box) |
| Type of connection |
Push-in connector |
| Type of protection |
IP 20 (DIN EN 60529) |
| Class of protection |
III when installed according to regulations |

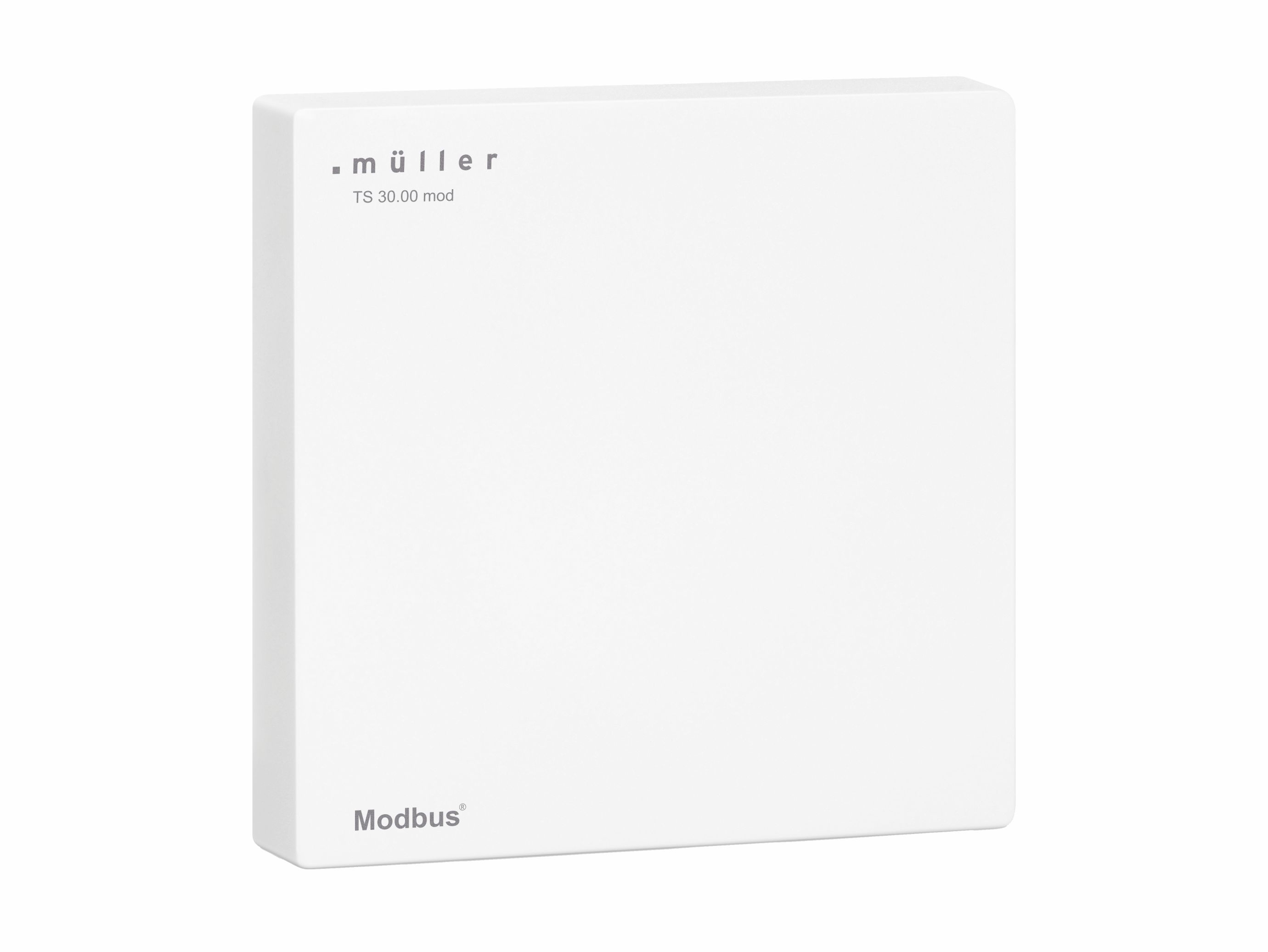

TS 30.00 mod
