Raumklimaregler / Luftgütesensoren GS 20.00 knx

Overview

Supply voltage	via KNX bus voltage
Bus current	< 10 mA
Bus system	KNX
Sensors	VOC temperature relative humidity atmospheric pressure dew point
Measuring range VOC	0...5.000 µg/m³
Measuring range temperature	-20...+55 °C
Measuring range relative humidity	0...100 %
Measuring range atmospheric pressure	300...1.100 hPa
Application software	ETS5 or higher
Permitted ambient temperature	-20...+55 °C
Housing	self-extinguishing thermoplastic
Dimensions	55 x 55 x 12 mm

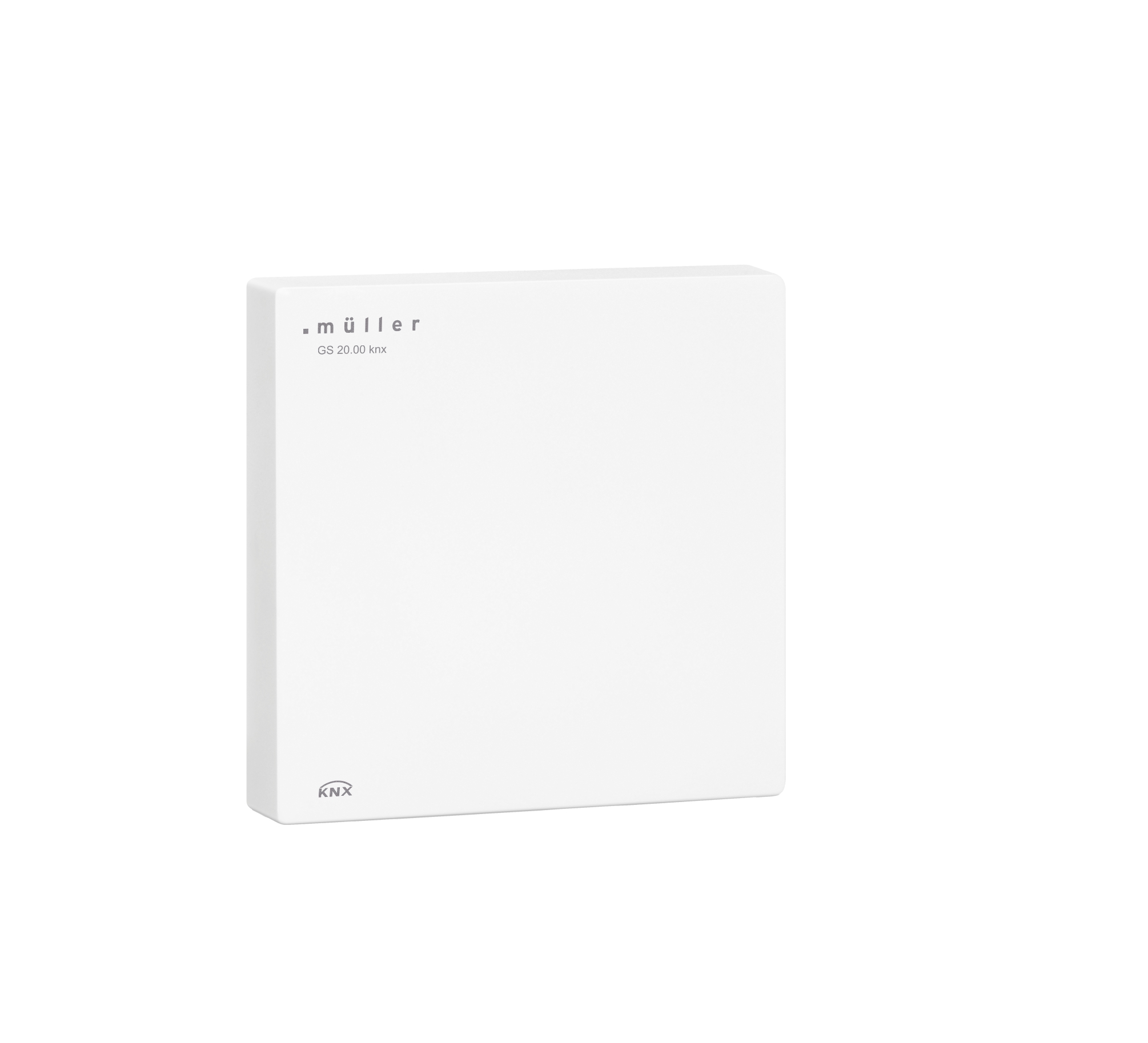

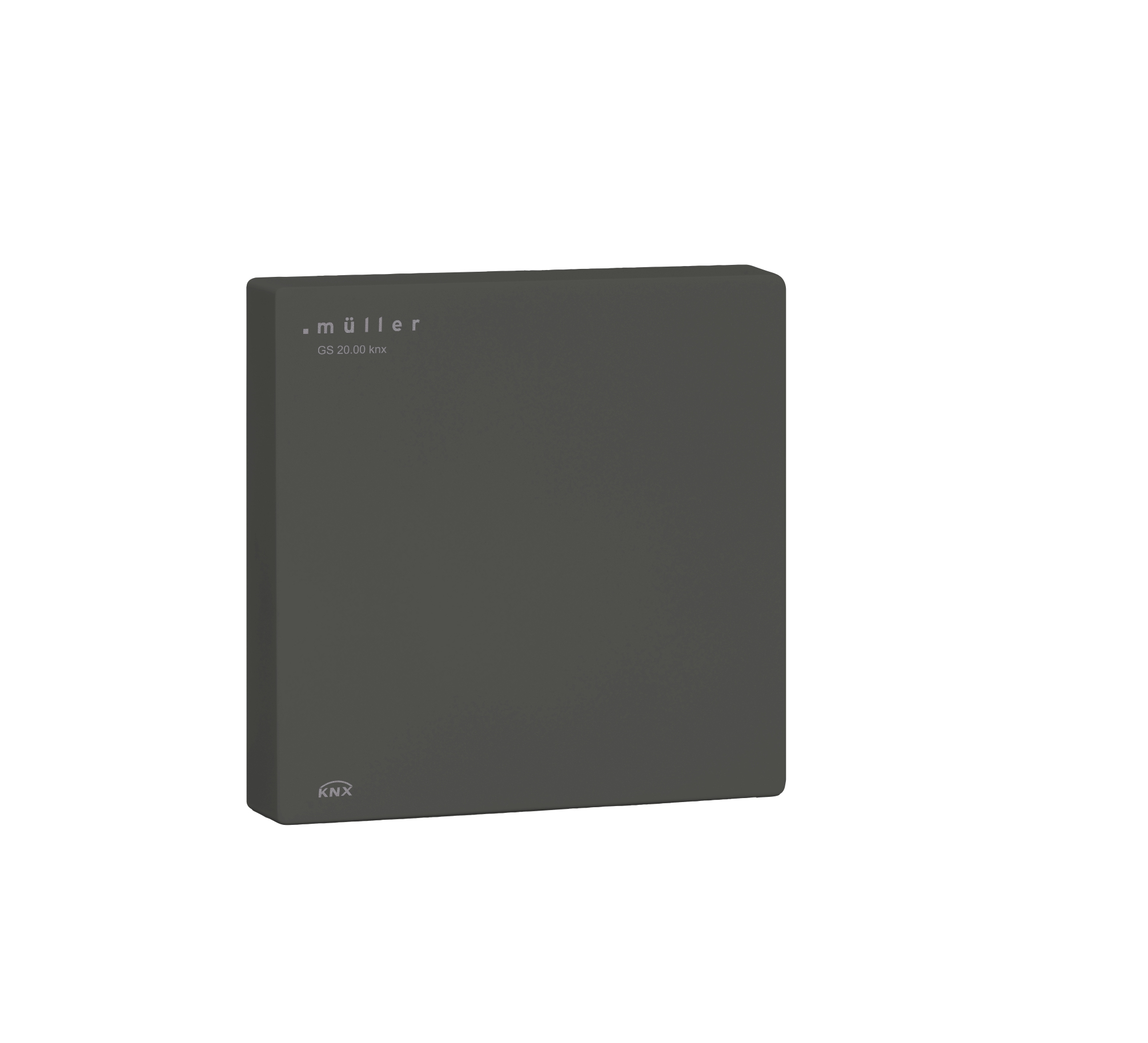

Housing color	studio white (similar to RAL 9016) or jet black (similar to RAL 9005) specific colors on request
Mounting	wall mounting in frame (55x55mm) with mounting plate wall mounting with mounting angle
Type of connection	push-in connector
Type of protection	according to DIN EN 60529: IP X1 IP X4 when mounted with mounting angle
Class of protection	III when installed according to regulations
Type of connection external inputs	wire diameter max. 6 x 0,5 mm² strip length 7 mm

VOC	Value output Control (step and PI control)
Relative humidity	Value output Control (step and PI control) Comparator
Temperature	Value output Control heating (2-point- and PI control) Control cooling (2-point- and PI control) Alarms
Dewpoint	Value output Alarms
Air pressure	Value output
VAV control	Value output (0...100 %)
and much more...
