Codice ordinativo

AS 26.01 knx

Melodie Schnittstelle
ohne Lautsprecher

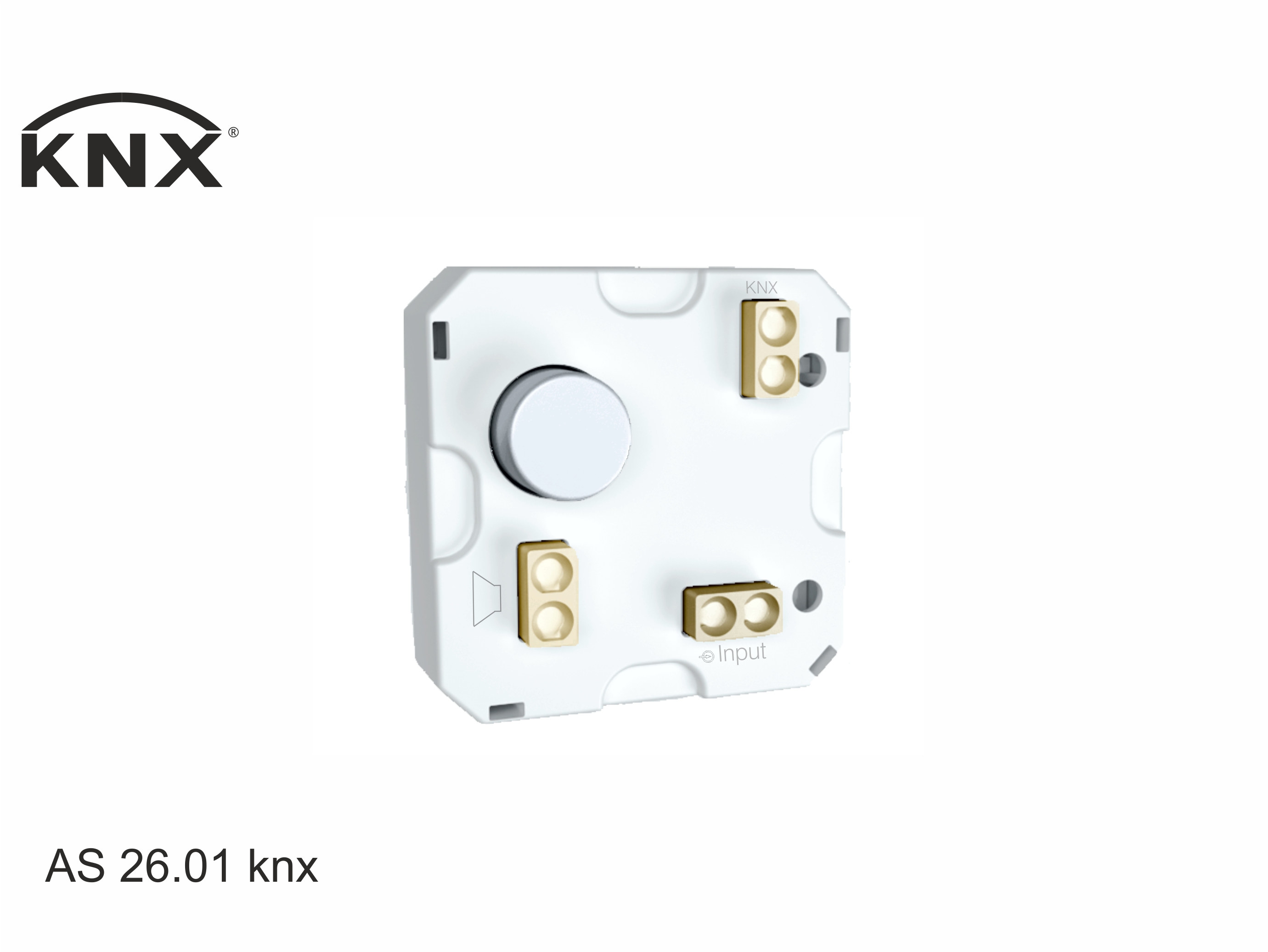

AS 26.11 knx

Melodie Schnittstelle
mit Lautsprecher

Accessories

Melody interfae for building automation KNX
12 pre-defined tones/melodies
1 binary input
10 input objects and 16 scenes can be configured
External loudspeaker can be connected

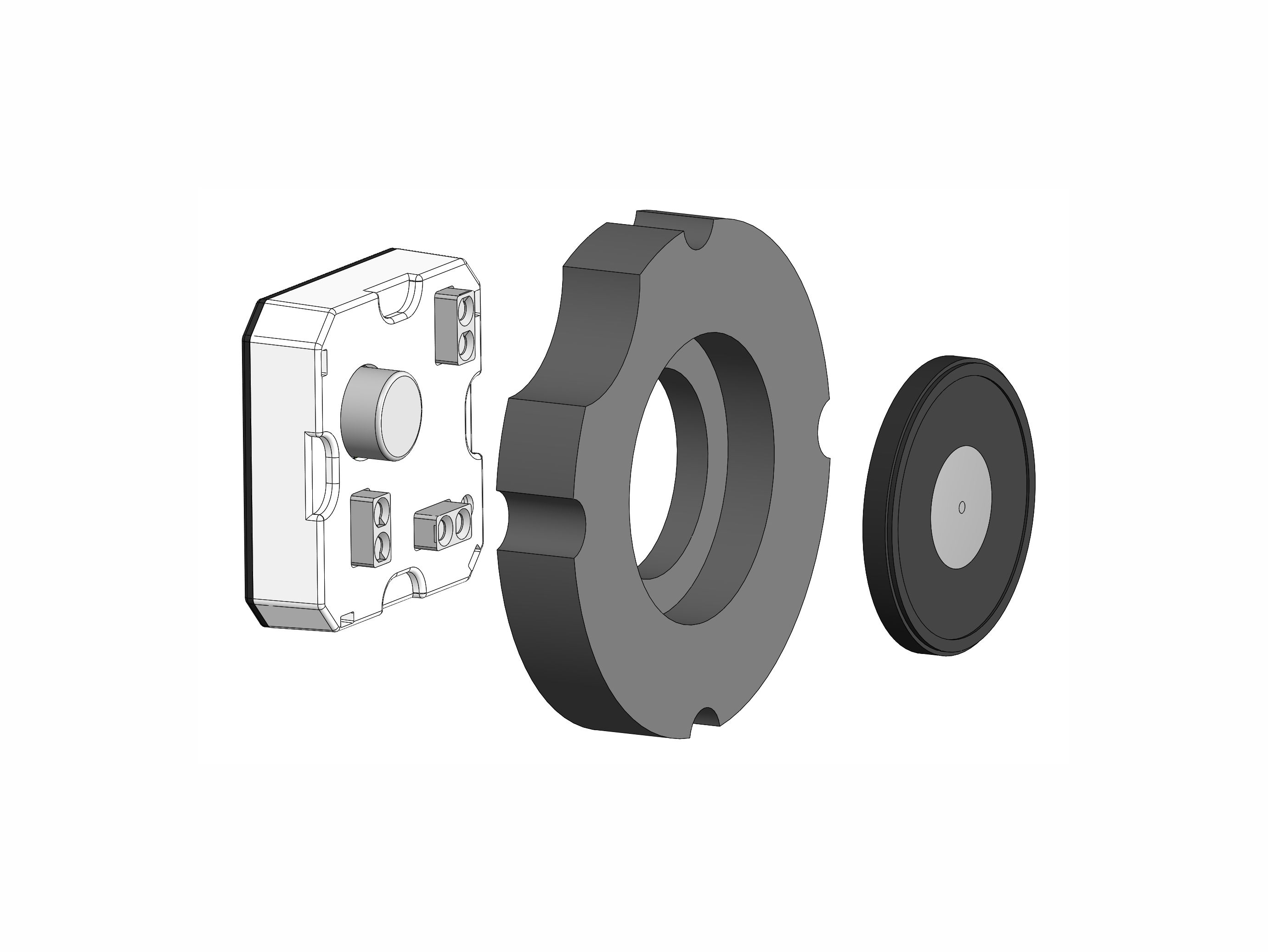

Small external loudspeaker ( LA 0610 ) included in delivery (AS 26.11 knx)
Adjustable volume level
No auxiliary supply needed
Day/night mode function
Mute function
Clearly structured ETS
Easy handling and mounting
Flush-mounted fitting
Compact housing
Can bei installed behind any kind of blind cover or also behind a switch/pushbutton in a long mounting box!

Hugo Müller GmbH & Co KG

Tel.: +49 (0) 7720 80 83 6

Supply voltage	via KNX bus voltage
Bus current	< 12 mA without output signal < 20 mA with output signal
Bus system	KNX
Input	1 binary input
Output	1 speaker output
Volume level	11 volume steps
Speaker output	max. 0,45 W
Impendance ext. speaker	4-8 Ohm
Melodies	12 preset tones
Applikation software	ETS5 or higher
Permitted ambient temperature	-10...+45 °C
Housing	self-extinguishing thermoplastic
Dimensions AS 26.01 knx	38 x 38 x 15 mm
Dimensions loudspeaker	⌀ 60 mm incl. mounting ring
Housing color	studio white (similar to RAL 9016) specific colors on request
Mounting	flush-mounting
Type of connection	push-in connector
Type of protection	IP20 according to DIN EN 60529
Class of protection	III when installed according to regulations
