TS 57.11 knx4

Order information

Supply voltage	via KNX bus voltage
Bus current	< 12,5 mA
Bus system	KNX
Safety	KNX Secure
Sensors	temperature
Functions	Switching blind / shutter control dimming scenes values logic function and much more
Inputs	3 binary inputs 1 input configurable as temperature sensor input for common temperature sensors
Outputs	3 analog outputs 0-10 V
Manual operation	manual adjustment of set-point temperature ±5° (increment adjustable)
Measuring range temperature	0...50 °C
Permitted ambient temperature	0°...50 °C
Housing	self-extinguishing thermoplastic
Dimensions	55 x 55 mm

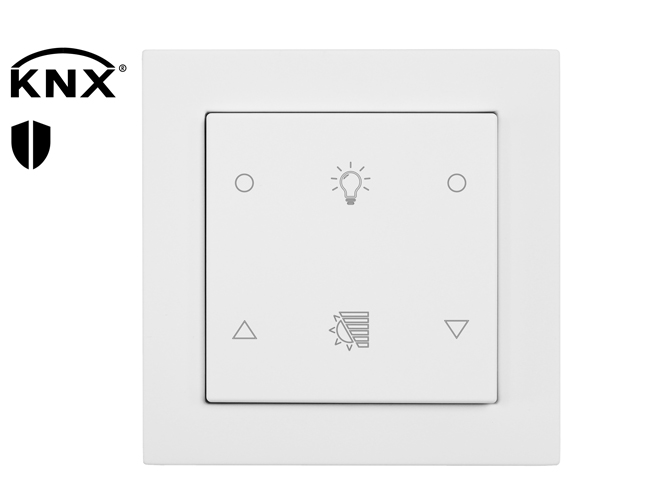

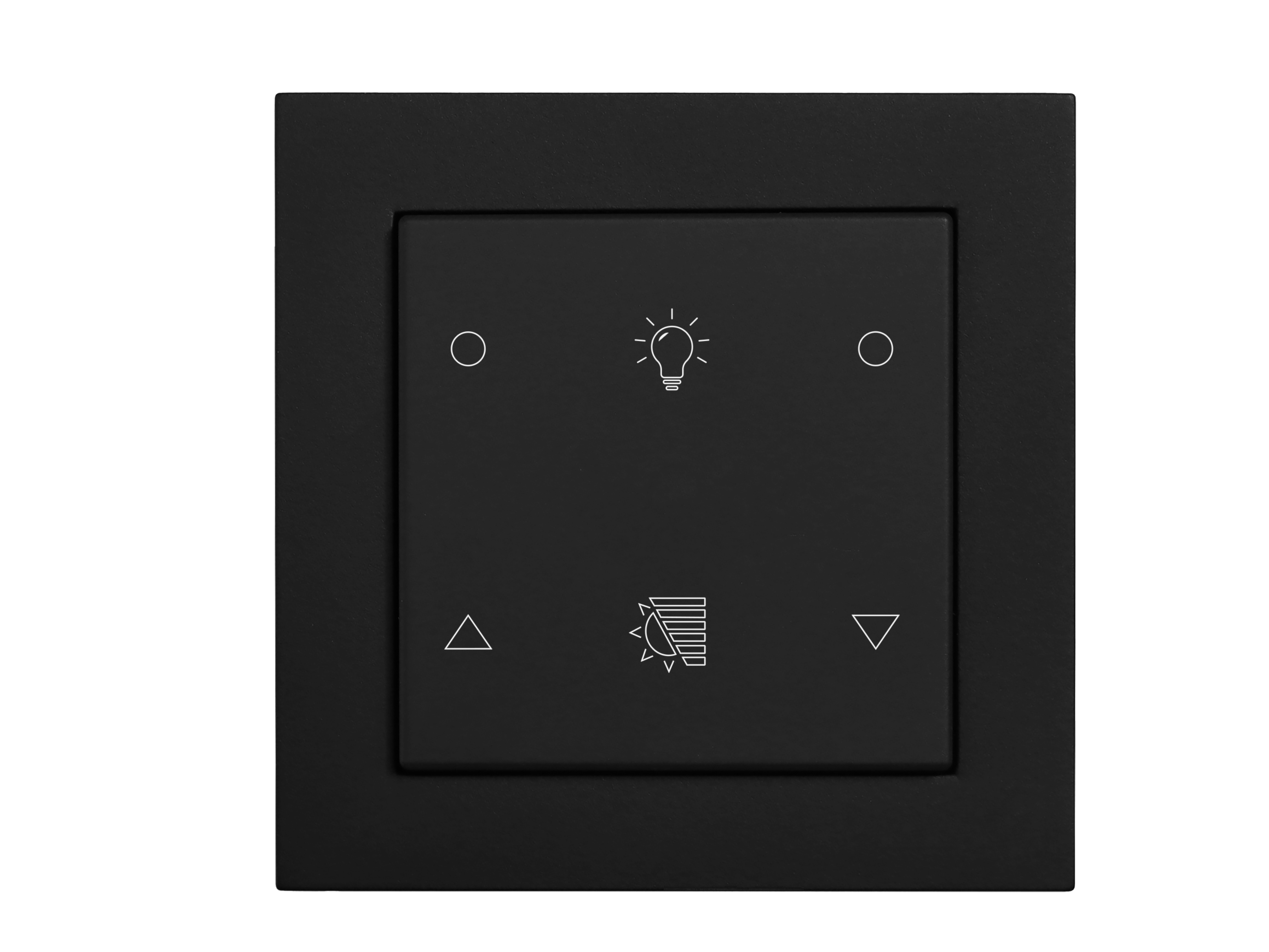

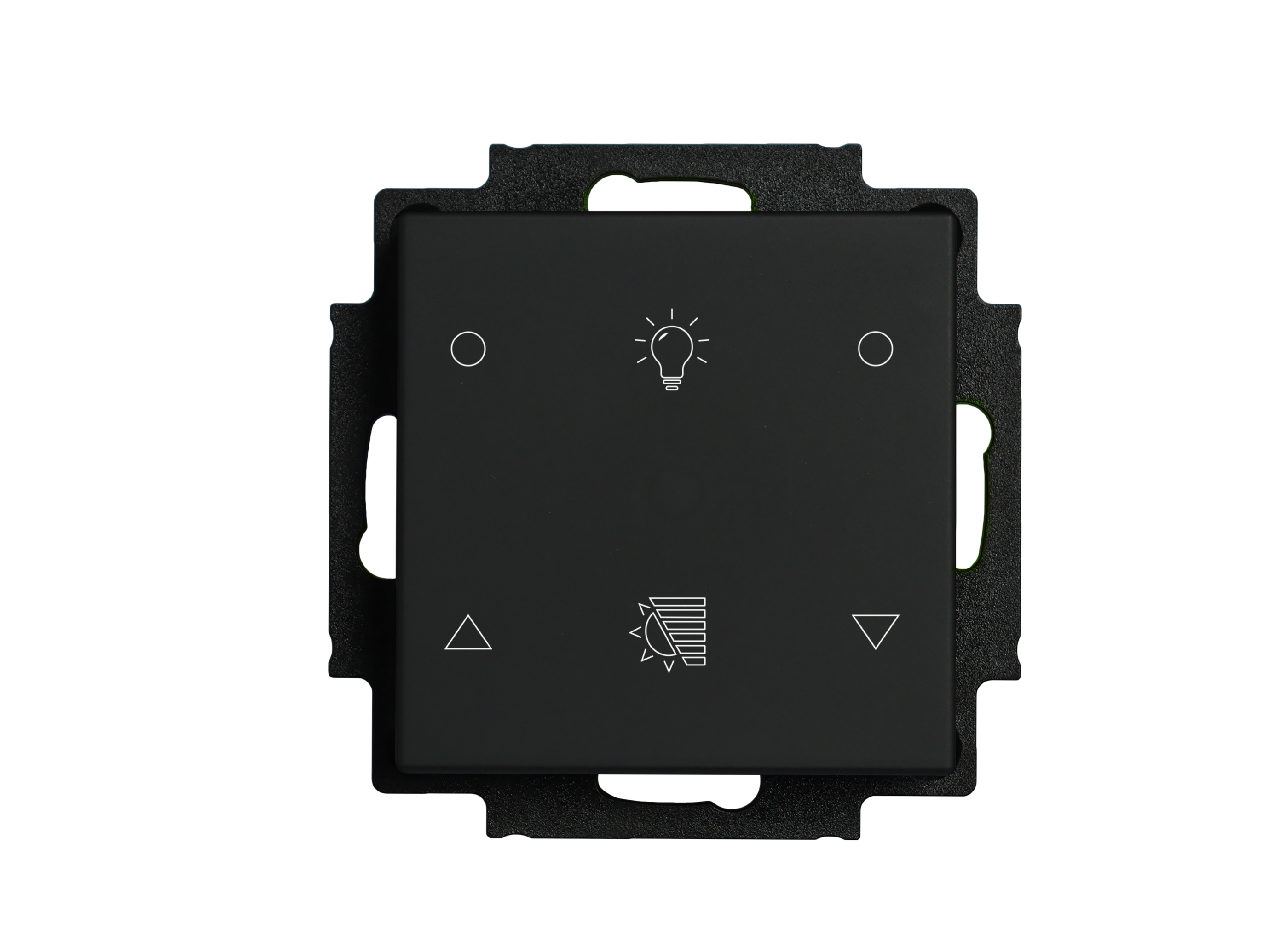

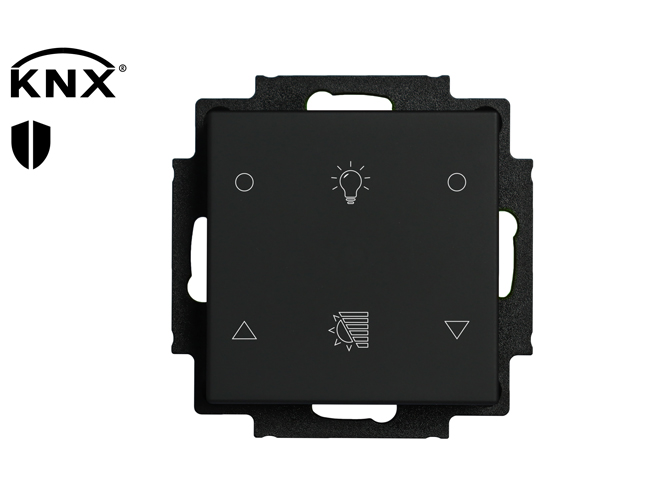

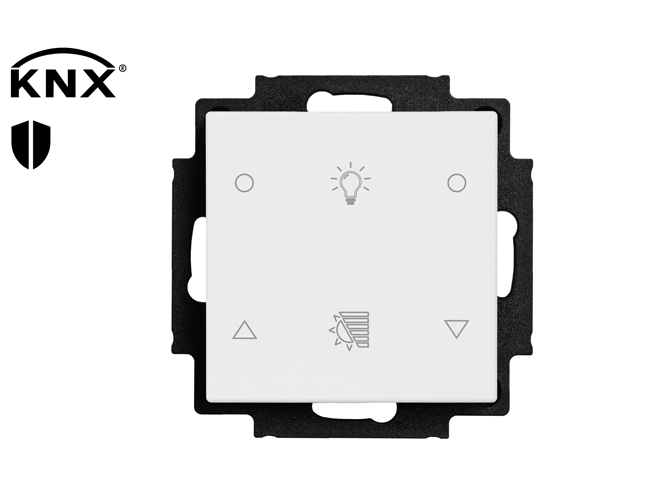

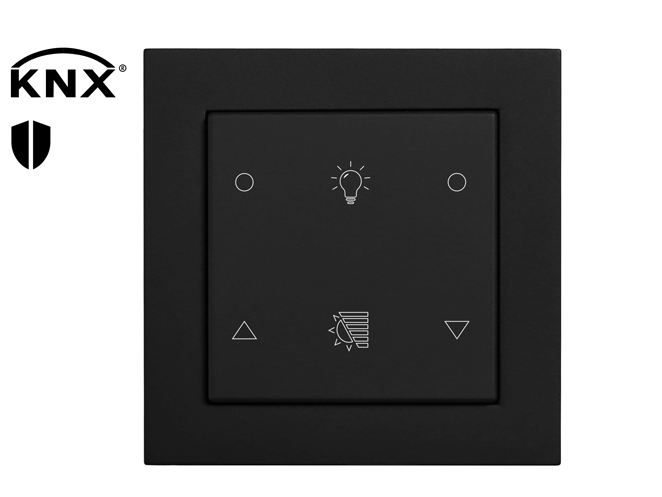

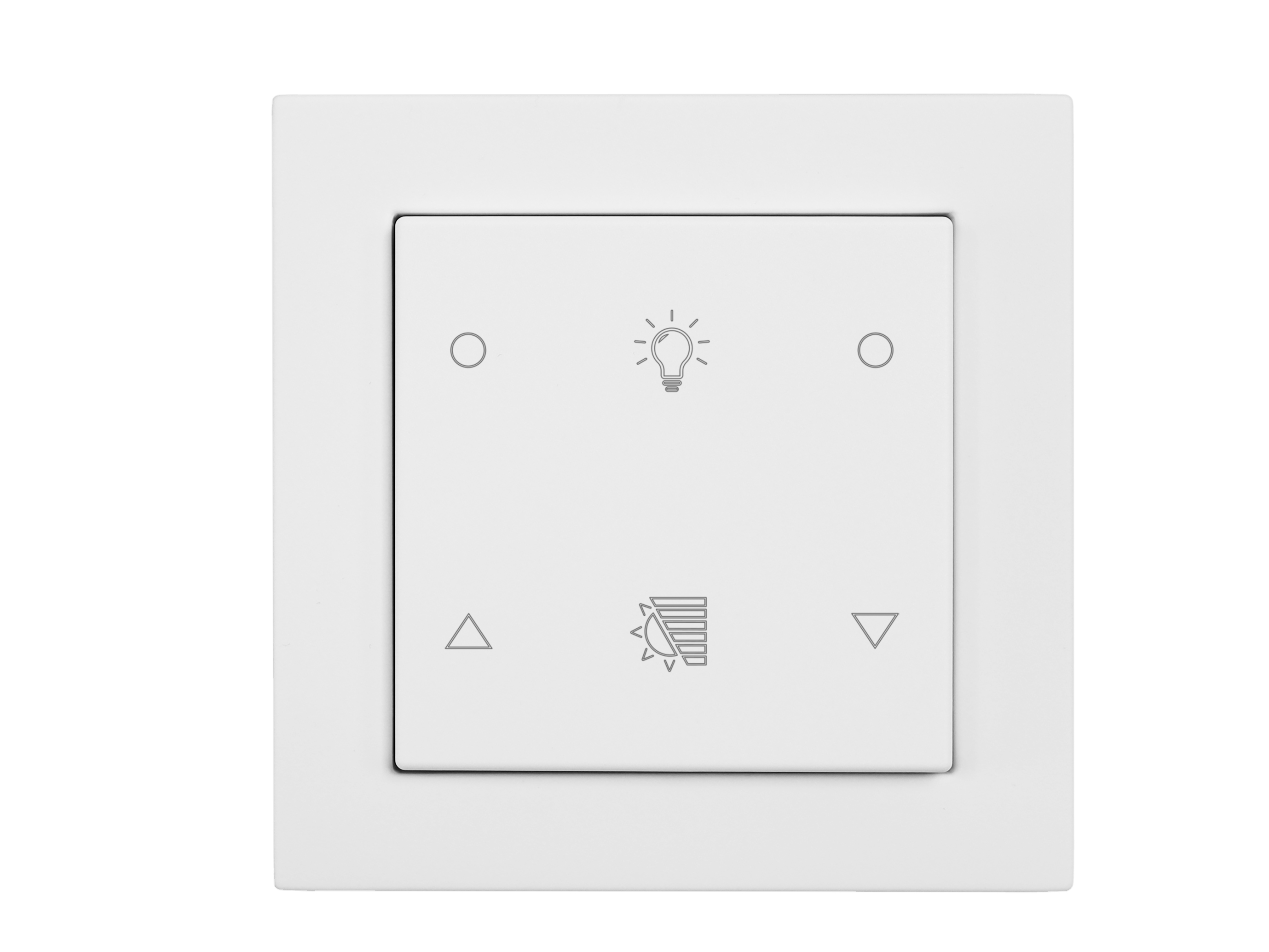

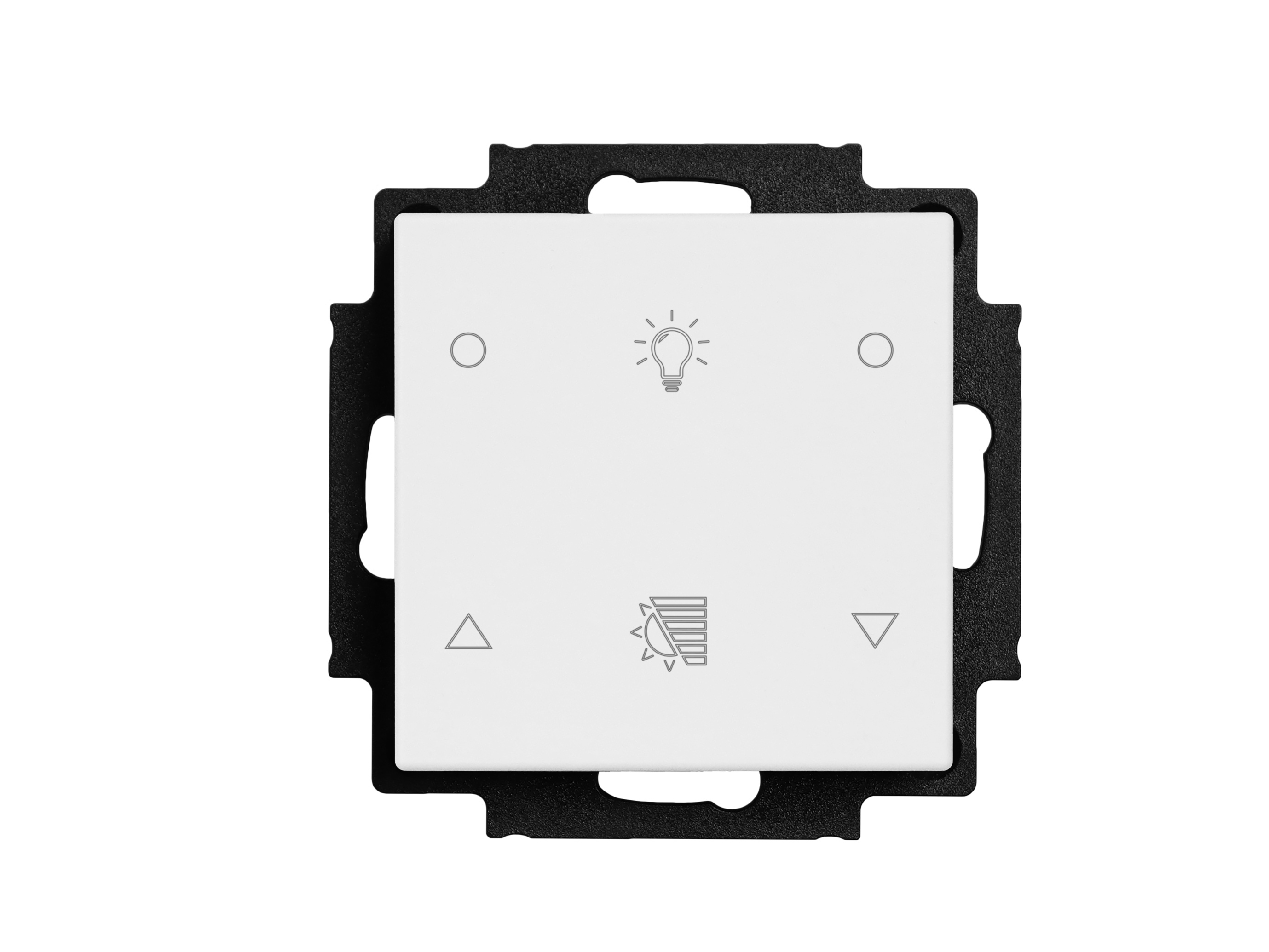

Housing color	pure white (similar to RAL 9010) or jet black (similar to RAL 9005) specific colors on request
Mounting	flush-mounting
Type of connection	push-in connector KNX-connector
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations
Type of connection analog outputs and binary inputs	wire diameter max. 0,2-0,5 mm² strip length 5-6 mm

Temperature	Value output Control heating (2-point- and PI control) Control cooling (2-point- and PI control) Alarms
and much more...
