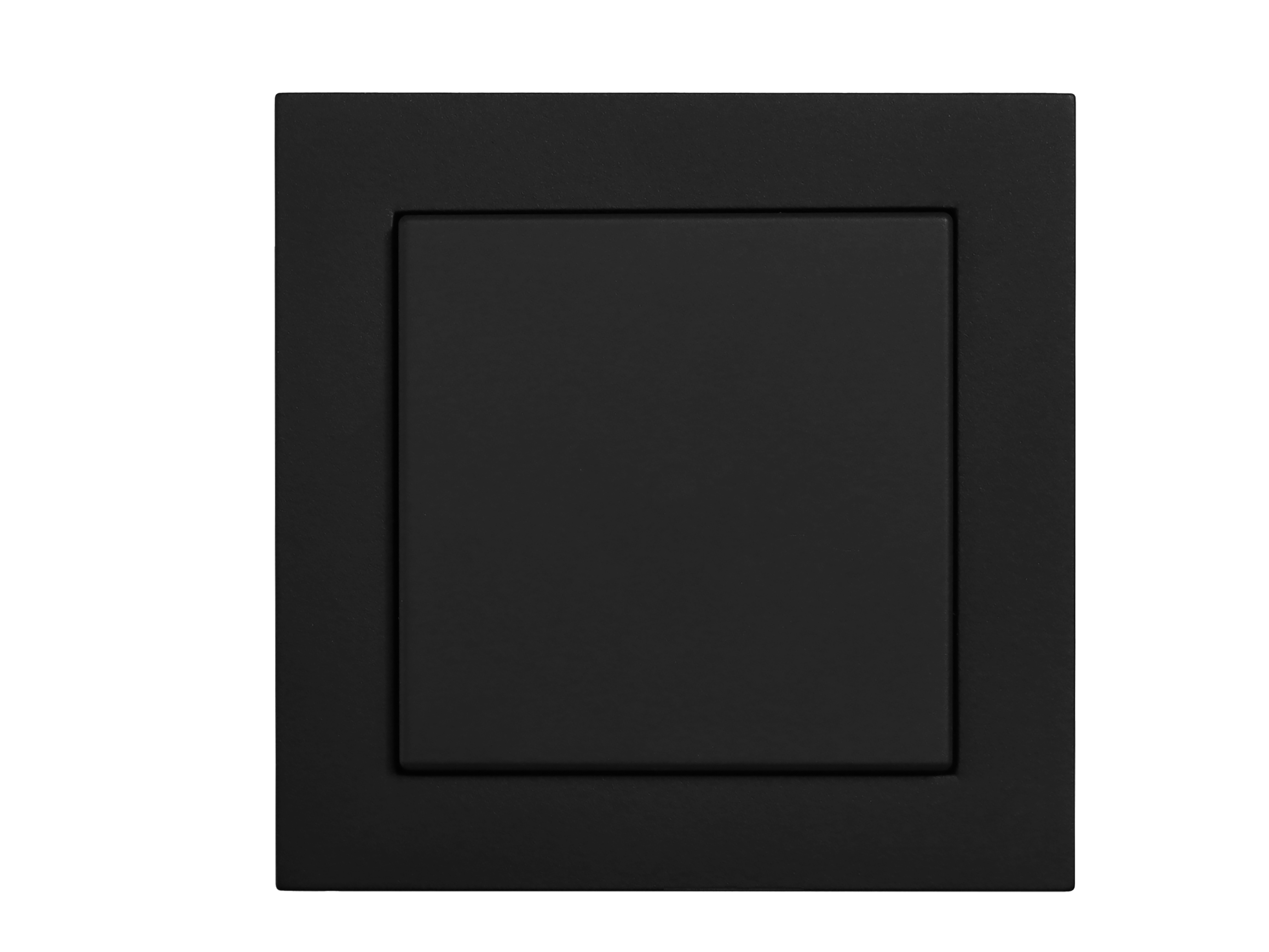

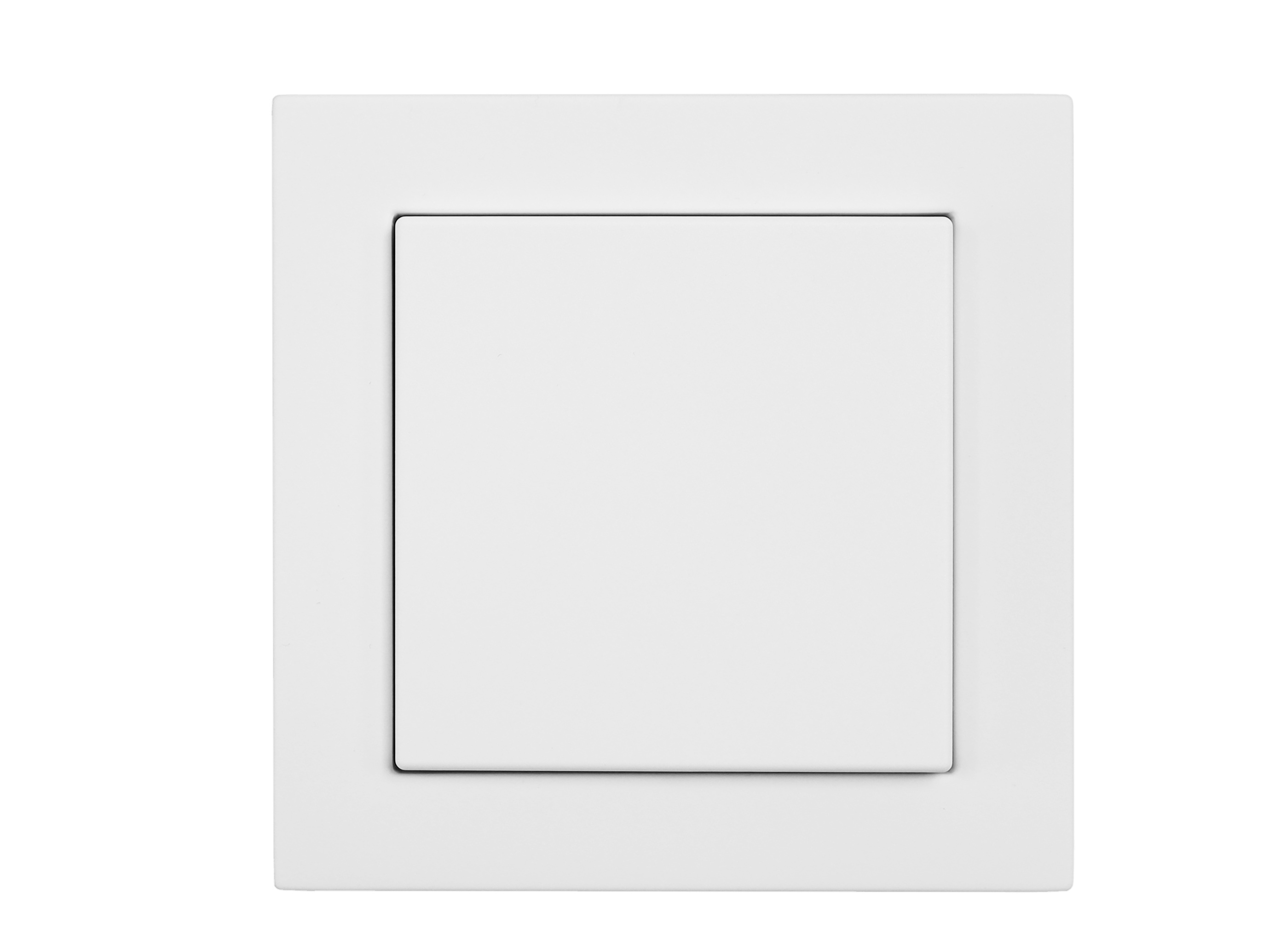

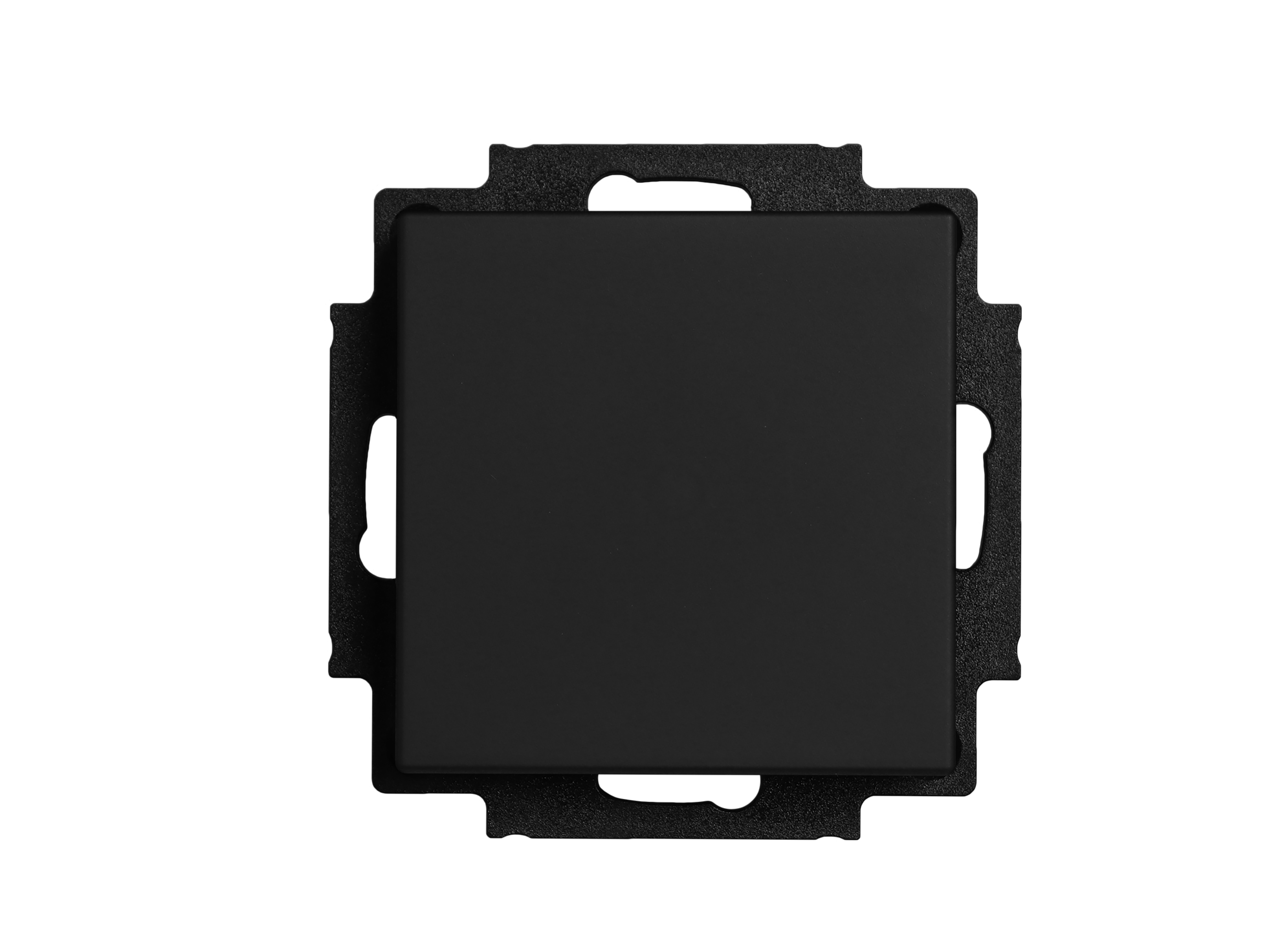

Raumtemperaturregler TS 37.11 knx / TS 38.11 knx

Overview

Sensor for temperature measurement
Temperature control over KNX
Temperature sensor (Measuring range 0...+50°C)
5 binary and analogue inputs (e.g. for connecting an external temperature sensor)
Clearly structured ETS
Easy installation and mounting
Modern design
Flush mounting [55 mm]
Fits in common switch range (55 x 55 mm)

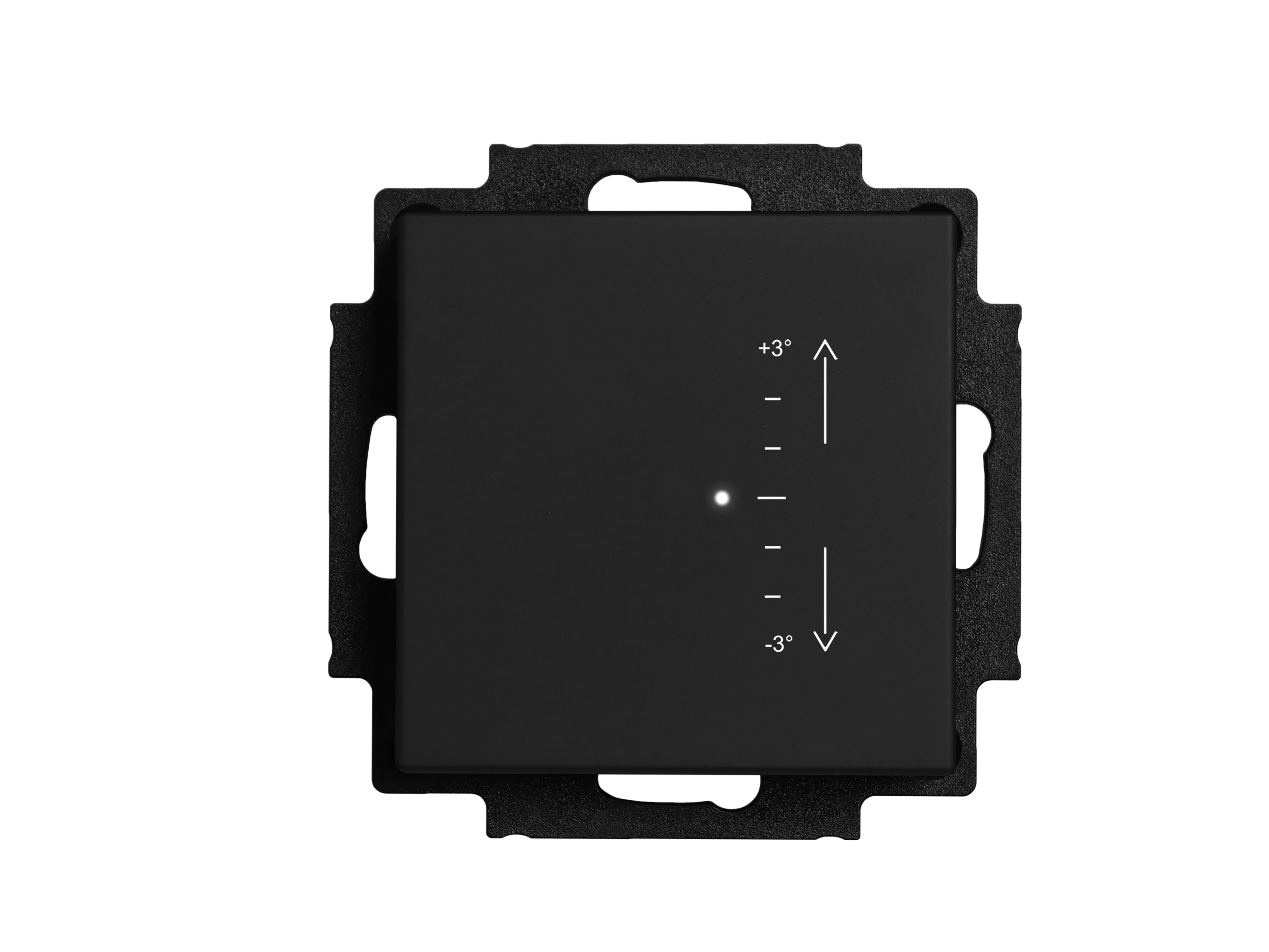

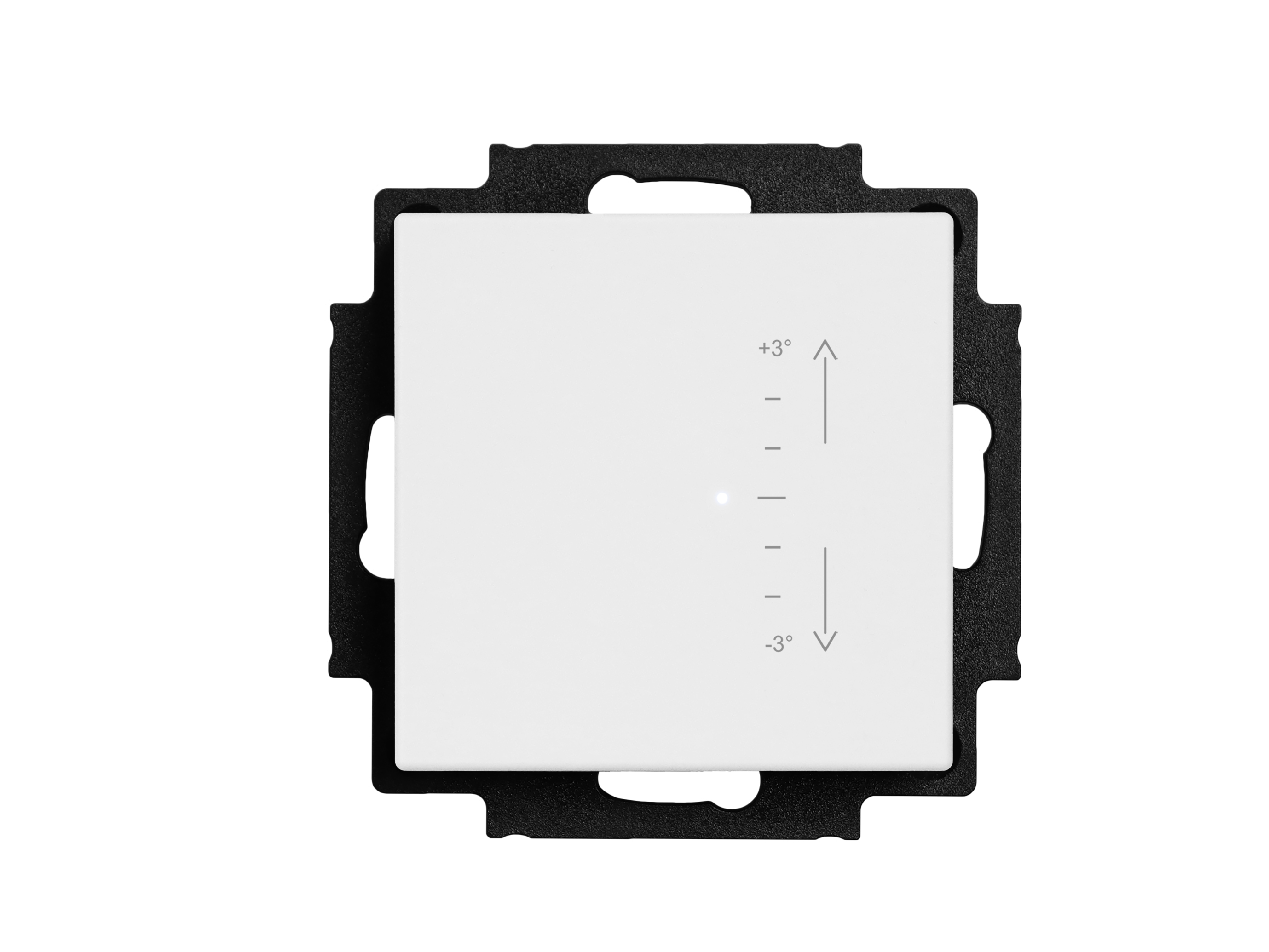

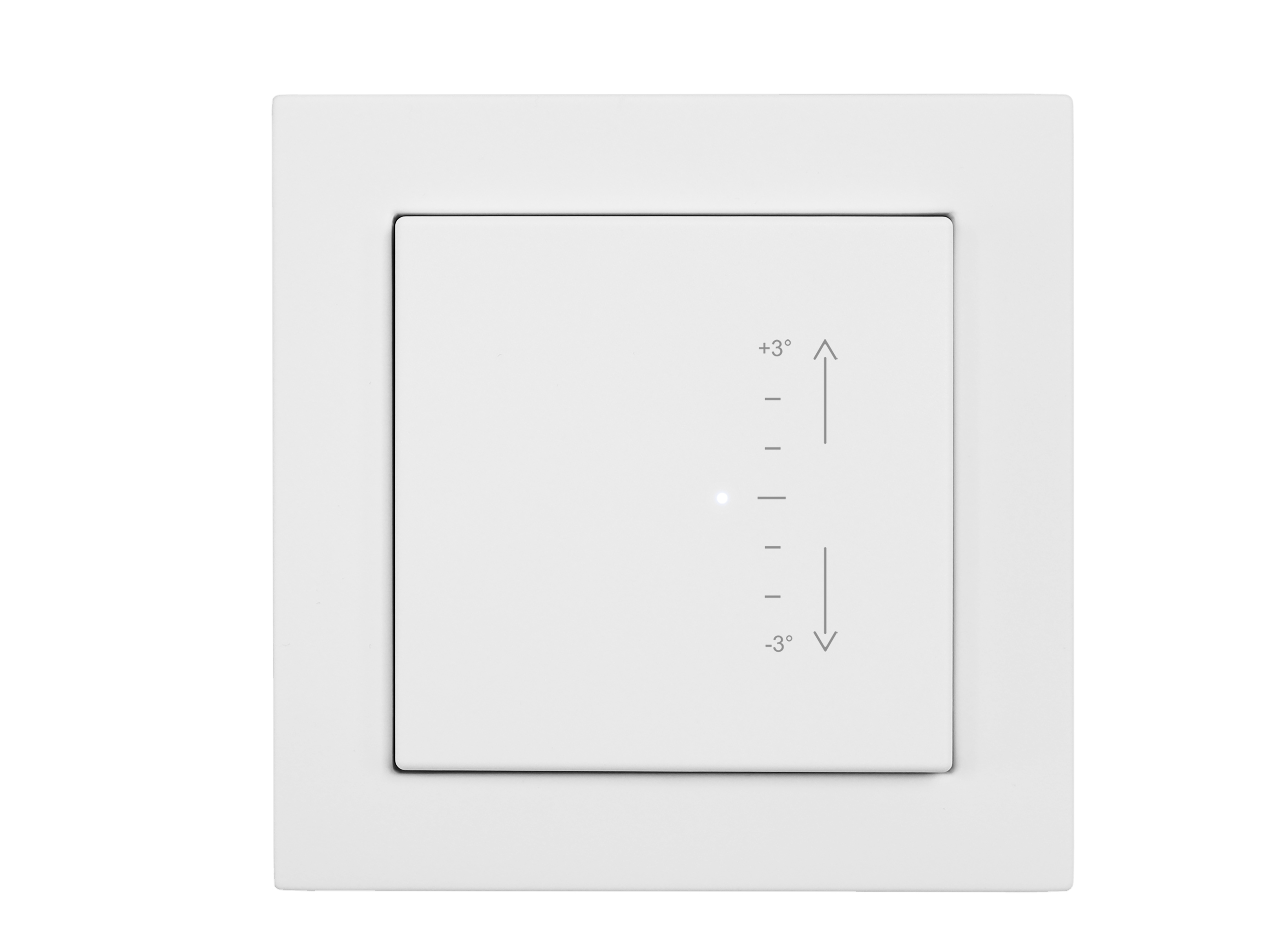

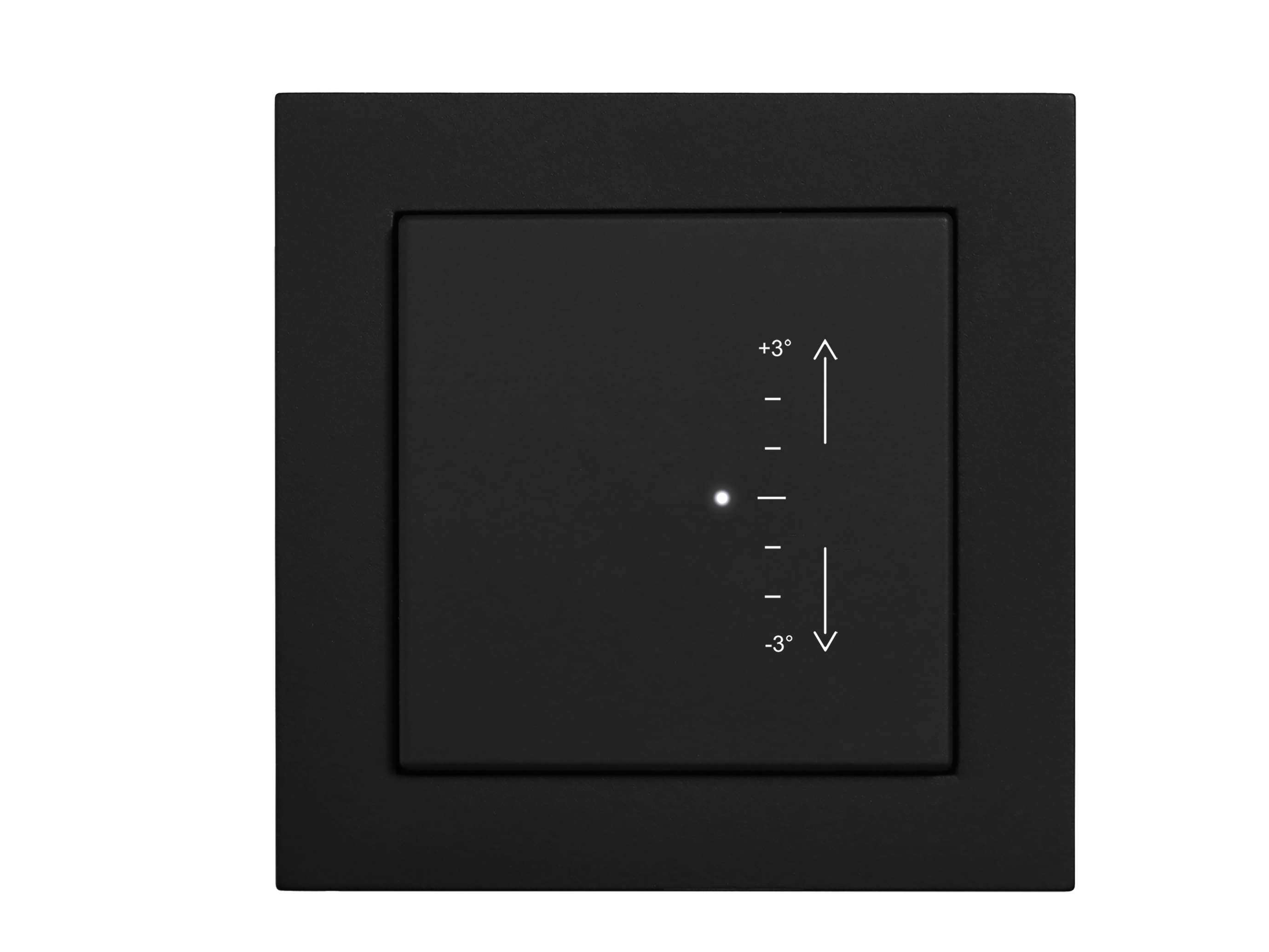

TS 38.11 knx: manual adjustment of set-point temperature via touch slider (adjustment range ± 3°, increment 0,5°)
Party function
Frame is not included in delivery

The 55 mm push-buttons from Müller are compatible with the switch programmes of leading manufacturers, including:

GIRA Standard 55, E1, E2, E3, Event, Esprit, Studio
BERKER B.3, B.7, S.1
JUNG Serie A (A 550, A Plus, A FLOW, VIVA, A Creation), AS 500. Serie CD/LS with intermediate frame
MERTEN System M (M-Pure, 1-M, M-Plan, M-Smart). System Design with intermediate frame
BUSCH-JÄGER Balance SI. Future Linear, Art Linear with intermediate frame

Supply voltage	via KNX bus voltage
Bus current	< 10 mA
Bus system	KNX
Sensors	temperature
Inputs	5 binary and analog inputs I1: analog input 0-10 V I4 & I5: For external temperature sensor input for most common temperature sensors
Manual operation	manual adjustment of set-point temperature (adjustment range ± 3 °, increment 0,5 °)
Measuring range temperature	0...+50 °C
Permitted ambient temperature	0°...+50° C
Housing	self-extinguishing thermoplastic
Dimensions	55 x 55 mm
Housing color	studio white (similar to RAL 9016) or jet black (similar to RAL 9005) specific colors on request
Mounting	flush-mounting
Type of connection	push-in connector KNX-connector
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations
Type of connection external inputs	wire diameter max. 6 x 0,2 - 4,0 mm² strip length 10 mm

Temperature	Value output Control heating (2-point- and PI control) Control cooling (2-point- and PI control) Alarms
and much more...
