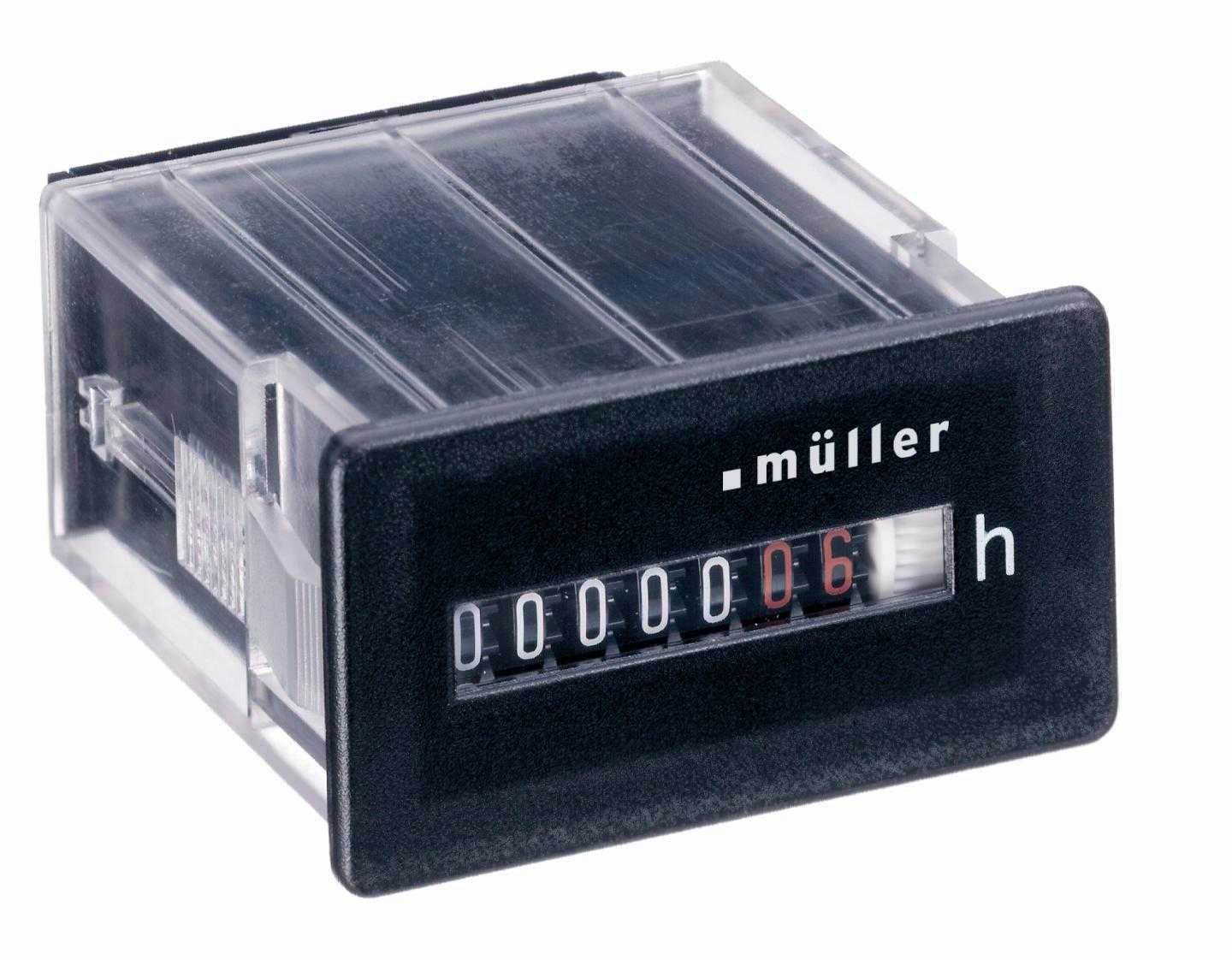

müller BW 30.18

Overview

The device fits for the particular use of the following tasks: summed measuring of operating hours in control cabinets and plants, operating hours of pumps and machines.

	Voltage	EAN	Art. No.
BW 30.18	230 V 50 Hz	4022709203069	20306
Other supply voltage versions on request

Voltage tolerance	±10%
Power consumption (real power)	0,11 W
Counter capacity	99.999 h.
Accuracy of reading	0,01 h.
Numeral height	4,4 mm
Numeral colour	white, decimal figures red
Operation indicator	fast-running wheel
Permitted ambient temperature	–15…+50 °C
Housing	self-extinguishing thermoplastic
Mounting	Panel
Type of connection	Universal: Screw, soldered and 6.3 x 0.8 mm AMP plug-type connections
Type of protection (DIN EN 60529)	Front IP 65
Class of protection	II when fitted in accordance with regulations
