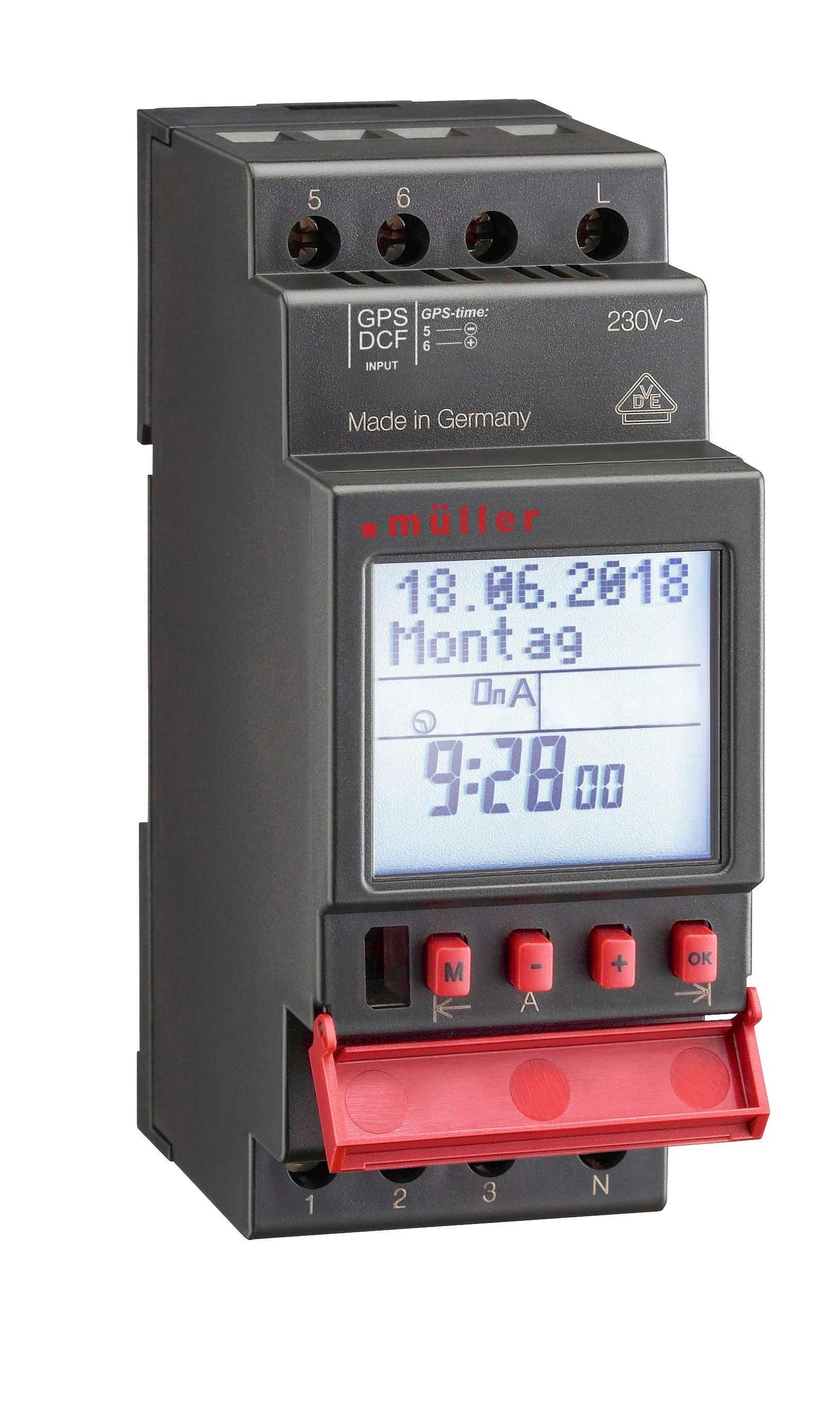

müller SC 28.19 pro

PANORAMICA

DATI TECNICI

DOWNLOADS

stampa
pagina prodotto

Overview

Time switch digital year
DIN-rail mounting 35 mm
1 channel
Daily, weekly and yearly program
300 memory locations
Minimum interval 1 min
Switching capacity 16 A per channel
Permanent by date / holiday function (up to 300)
Manual permanent mode
Manual override
Automatic sorting of switching times on readout
Unrestricted block programming
Fully automatic daylight saving time
Elapsed time and pulse counter
Pulse function
Cycle function
Timer function
Channel button function
DCF / GPS function
Security by PIN-Code
Illuminated display
Compact 35 mm wide housing
PC-programmable
Data-key function

Highlights

Yearly program within Easter function, Weekday function and Extra-switching-time function
Text based Menu
Display with a large dot matrix area to provide two high resolution text lines
Easy handling
Quick and intuitive programmable
10 years battery-reserve
Unlimited program security by E²-PROM
Programmable with Programming package PP 50 pro / PP 60 pro (not included in delivery)

Intended use

The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
Operate the device in a dry room only!
The installation must be in accordance with the instruction manual.
The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment.

Supply voltage versions

230 V, 50-60 Hz

Order information

	Voltage	EAN	Art. No.
SC 28.19 pro	230 V 50-60 Hz	4022709224125	22412

Technical data

Supply voltage	230 V, 50-60 Hz other voltages on request
Power consumption (real power)	1,4-1,9 W (depending on the switching status)
Channel (potential-free)	Change-over, contact gap < 3 mm (µ)
Contact material	AgSnO₂
Switching capacity resistive load: inductive load:	16 A / 250 V~ at cosφ=1 10 A at cosφ=0,6
Min. switching power	1.000 mW (10 V / 10 mA)
Max. starting current	50 A
Filament Lamp, Halogen Lamp	2.000 W
Fluorescent Lamp uncompensated	1.000 VA
Fluorescent Lamp series compensated	1.000 VA
Fluorescent Lamp parallel compensated	550 VA
LED (230 V~) / CFL	200 W
Switching functions:	ON OFF pulse cycle yearly program
Pulse length Pulse function (switching time)	00:01 up to 59:59 mm:ss
Pulse length Timer (man. switching)	0:00:01 up to 9:59:59 h:mm:ss
Pulse/Pause length Cycle	0:00:01 up to 9:59:59 h:mm:ss
Memory locations	300
Minimum interval	1 Min.
Time base	Quartz DCF (FU 20.00 pro) GPS (FU 3x.00 pro)
Quartz accuracy (at 20 °C)	≤±0,5 Sec./day (Quartz accuracy optimized for typical ambient conditions)
Power back-up (at 20 °C)	approx. 10 years (depends on the Lithium-battery life)
Program security	unlimited (E²-Prom)
Display	high resolution LCD (visible area 7,5 cm²)
Permitted ambient temperature	–30…+55 °C
Housing	self-extinguishing thermoplastic
Dimensions	45 x 35 x 58 mm
Mounting	35 mm DIN-rail
Type of connection	Screw terminals (pull-up type)
Type of protection	IP 20 to DIN EN 60529
Class of protection	II when installed according to regulations
Mode of operation (DIN EN 60730-1) (DIN EN 60730-2-7)	1 BSTU
Degree of contamination (DIN EN 60730-1)	2
Rated surge voltage (DIN EN 60730-1)	4 kV
Accessories (not included in delivery)	Data-key DK pro Programming package PP 50 pro Programming package PP 60 pro
Certification mark	VDE
