Interruttori orari digitali astronomici
Codice ordinativo
SC 18.13 easy
170 413 easy 1 Kanal Version
SC 18.13 easy
170 413 easy
1 Kanal Version

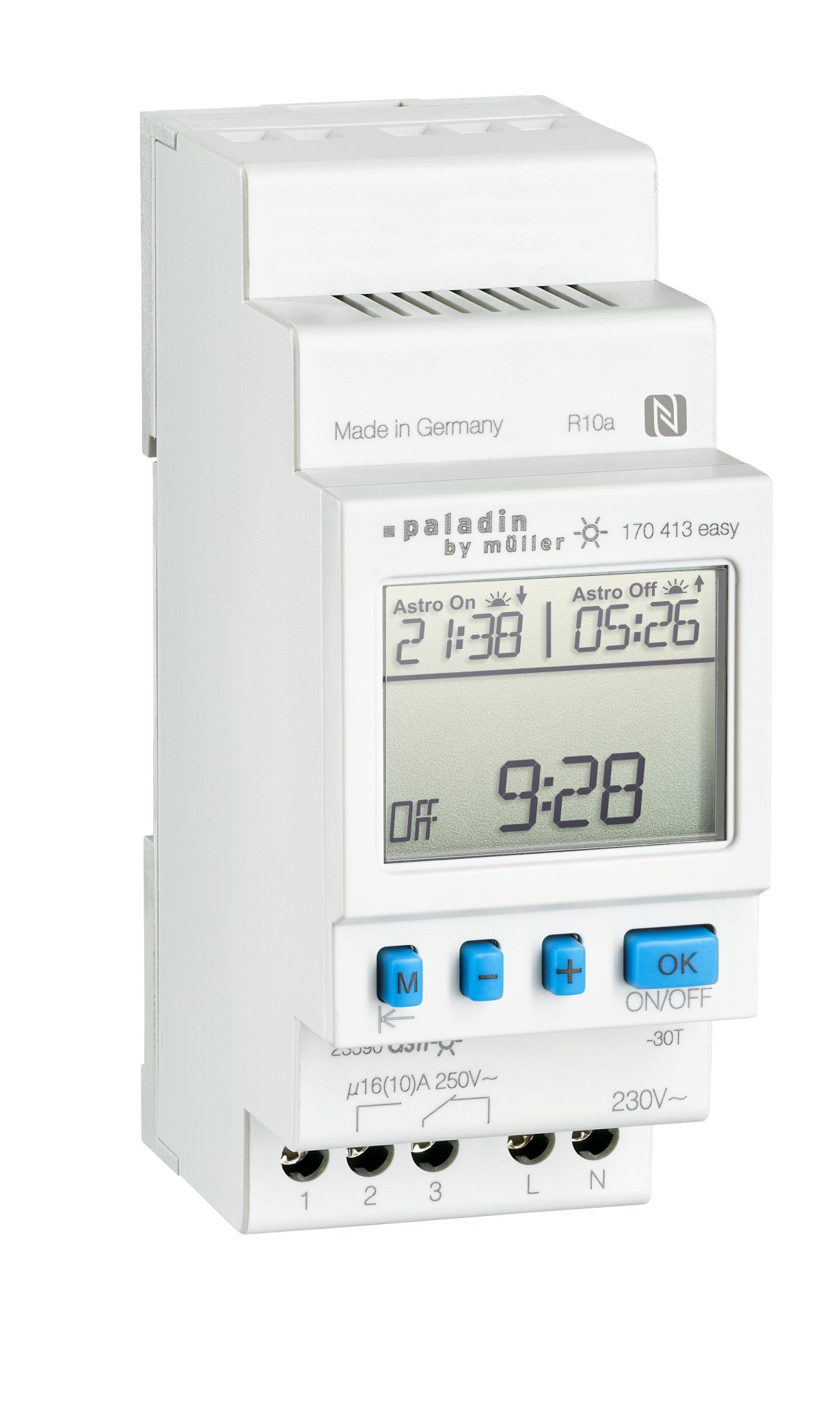

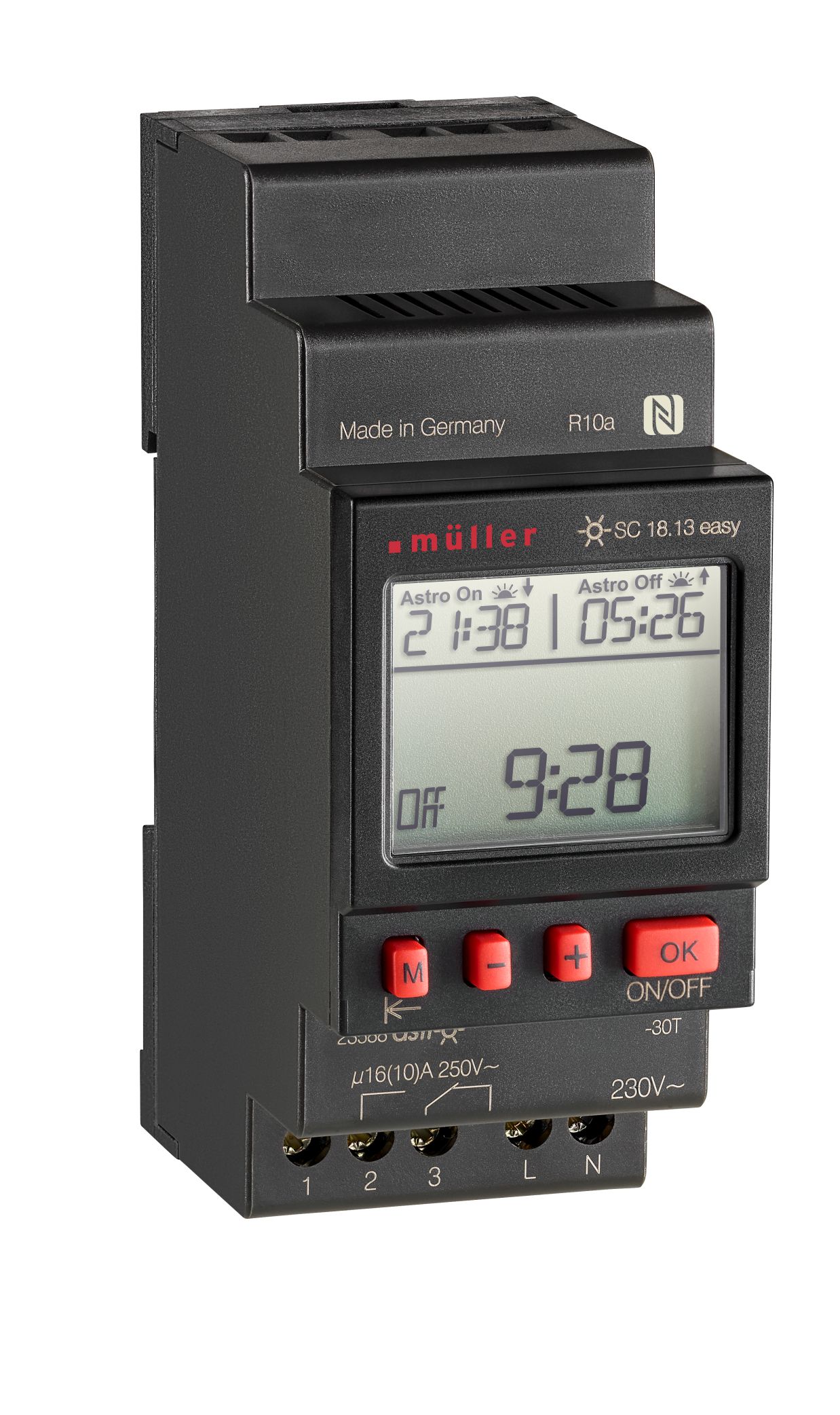

müller SC 18.13 easy - paladin 170 413 easy
Overview
- 1 channel
- Astro-daily-program
- Economical night program
- 4 memory locations
- Integrated NFC
- Programmable via App (iOS and Android)
- 10 years battery-reserve
- Exchangeable battery (CR 2032)
- Minimum interval 1 min.
- Switching capacity 16 A
- Manual permanent mode
- Manuelle override
- Fully automatic daylight saving time
- Easy handling
- Illuminated display
- Security by PIN-Code
- NFC programming (ISO 15693 Standard)
Highlights
- Complete switching program at a glance
- Exchangeable battery (CR 2032) with 10 years battery reserve
- Optimized own consumption: only 0.2 W in „standby” mode
- Large, clear and illuminated display
- Easy handling
- Quick and intuitive programming
- Can be programmed with supply disconnected
- Unlimited program security by E2-PROM
- Programmable with NFC via smartphone (free Save'n carry App)
Astro program
- Switching time in respect of the position of the sun
- Astro ON and OFF times are corrected daily with actual times of sunset and sunrise
- Offset function = for each switching time a difference (±90 min.) to the Astro time can be programmed
Intended Use
- The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
- Operate the device in a dry room only!
- The installation must be in accordance with the instruction manual.
- The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment
Supply voltage versions
- 230 V, 50-60 Hz
- Other supply voltage versions on request
