Interruttori orari digitali settimanali

Codice ordinativo

Logo Hugo Müller

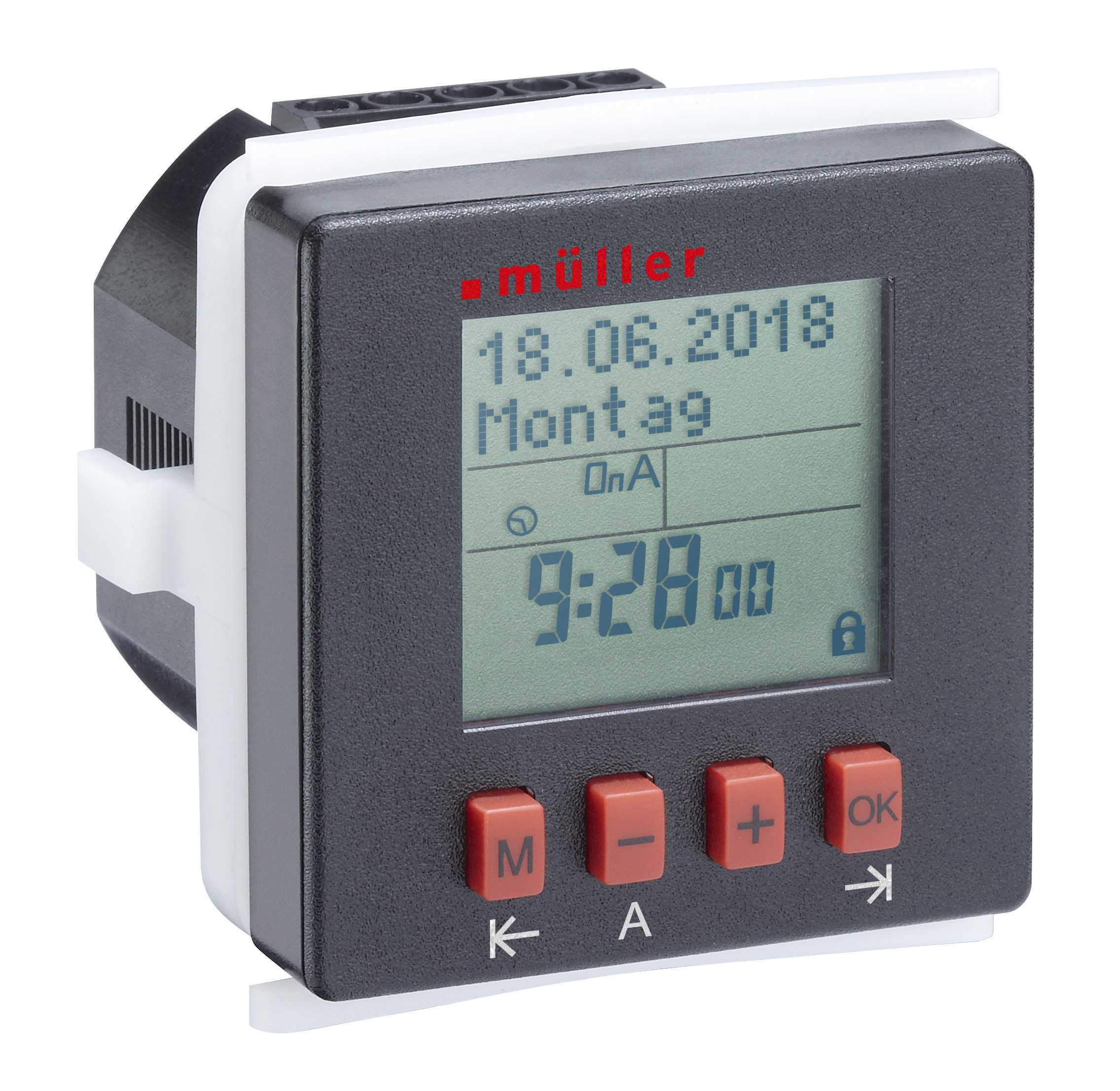

SC 24.10 pro
1 Kanal Version

müller SC 24.10 pro

Overview

  • Time switch digital weekly
  • Switchboard panel
  • 1 channel
  • Daily and weekly program
  • 46 memory locations
  • Minimum interval 1 min
  • Switching capacity 8 A per channel
  • Permanent by date / holiday function
  • Manual permanent mode
  • Manual override
  • Automatic sorting of switching times on readout
  • Unrestricted block programming
  • Fully automatic daylight saving time
  • Elapsed time and pulse counter
  • Pulse function
  • Security by PIN-Code
  • Data-key function
  • External input

Highlights

  • Text based Menu
  • High resolution Display with two text lines
  • Easy handling
  • Quick and intuitive programmable
  • 4 years battery-reserve
  • Unlimited program security by E2-PROM

Intended use

  • The device fits for the particular use of the following tasks: Illumination of private and industrial areas, street and shop-window lightening, regulation of air conditioning, flushing, motors, pumps, plants and machinery as well as to simulate presence etc.
  • Operate the device in a dry room only!
  • The installation must be in accordance with the instruction manual.
  • The device is not qualified for security relevant tasks such as emergency doors, fire protection equipment

Supply voltage versions

  • 230 V, 50-60 Hz
  • 24 V ACDC
  • Other supply voltage versions on request
