Overview

Adapted for slave clocks up to 250 V AC
Pulse amplifier is not needed.
Automatic adjustment of the slave clocks
Automatic time correction of slave clock/s after supply voltage interruption
Repetition of the last applied minutepulse
Fully automatic summertime change (European standard) with 60 additional pulses of 1 hour pulse suppression of the slave-clock-line
Security by PIN-Code
Illuminated display
DCF function

Highlights

Text based Menu
Display with a large dot matrix area to provide two high resolution text lines
Easy handling
Quick and intuitive programmable
10 years battery-reserve
Unlimited program security by E²-PROM

Intended use

The device fits for the particular use of the following tasks: Regulation of slave clocks in schools, sports halls, hospitals, factories and companies or huge buildings as well as for church clocks.
Operate the device in a dry room only!
The installation must be in accordance with the instruction manual.

Order information

	Voltage	EAN	Art. No.
SC 58.08 pro	230 V 50-60 Hz	4022709225276	22527

Technical data master clock unit

Supply voltages	max. 250 V~
Output current	at 1 A approx. 10 years durability of the relay max. = 10 A / 250 V~ at cosϕ=1
Max. number slave clocks	depends on slave clocks
Output signal	Pole changing pulse
Pulse sequence	normal operation = 1/min. during adjustment = 6/min.
Pulse length	approx. 8 sec. (adjustable)

Technical data

Supply voltages	230 V, 50-60 Hz
Power consumption (real power)	1,2 W
Time base	Quartz DCF (FU 20.00 pro) GPS (FU 3x.00 pro)
Quartz accuracy (at 20 °C)	≤ ±0,5 Sec./day (Quartz accuracy optimized for typical ambient conditions)
Power back-up (at 20 °C)	approx. 10 years (depends on the Lithium-battery life)
Display	high resolution LCD (visible area 12,8 cm²)
Permitted ambient temperature	–30…+50 °C
Housing	self-extinguishing thermoplastic

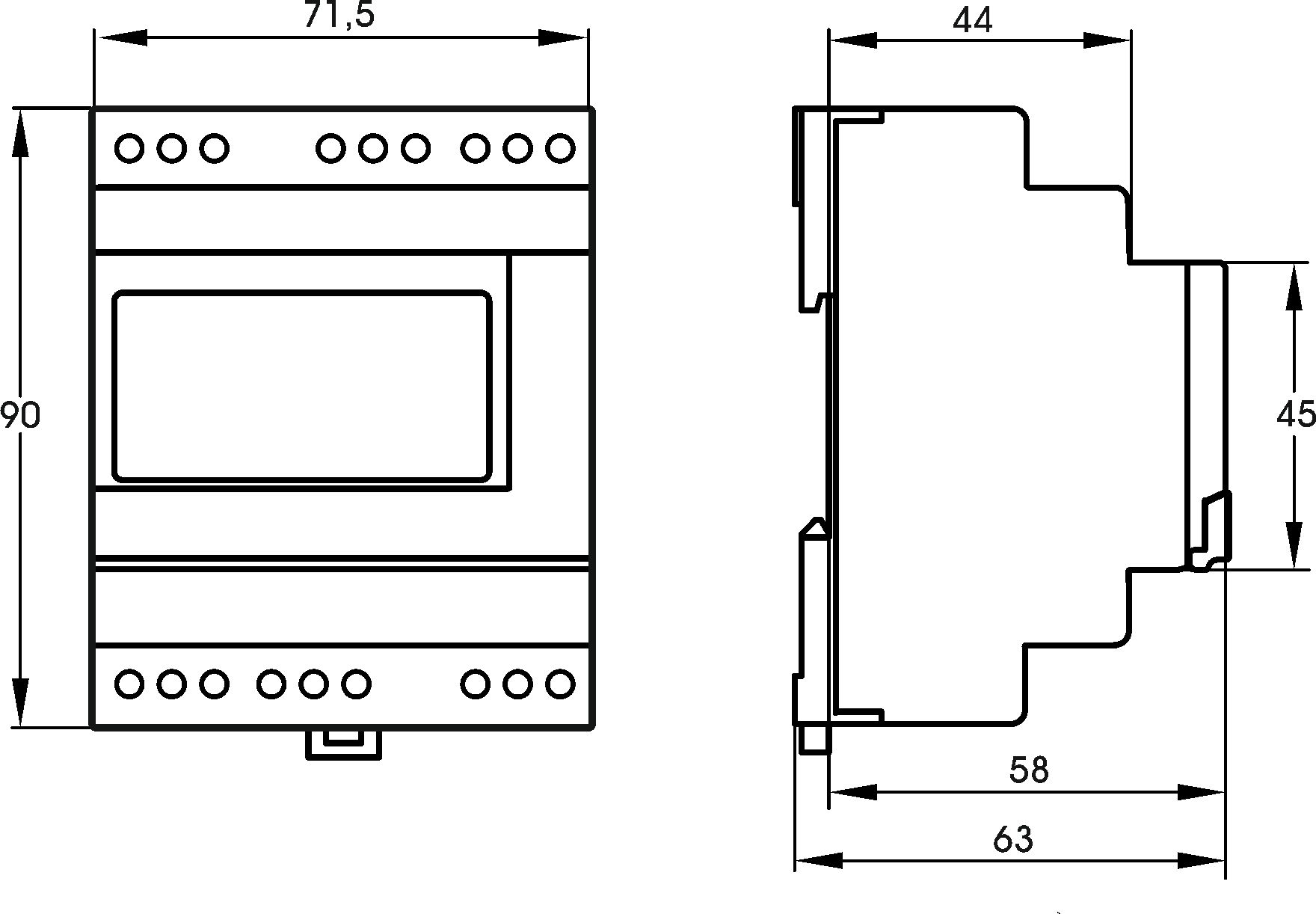

Dimensions	45 x 71,5 x 58 mm
Mounting	35 mm DIN-rail

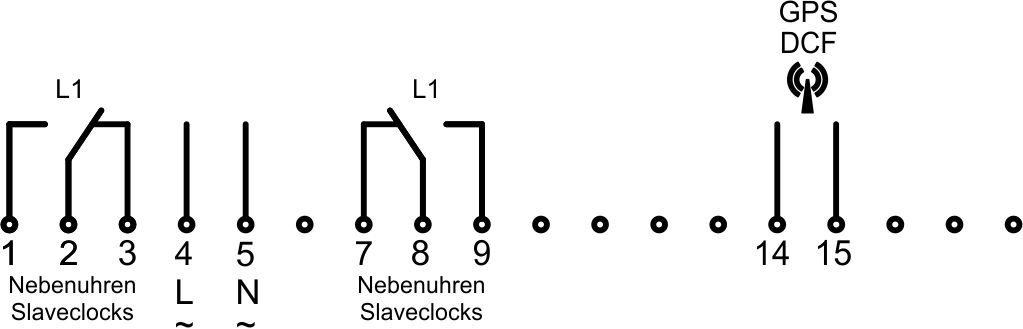

Type of connection	Screw terminals (pull-up type)
Type of protection	IP 20 to DIN EN 60529
Class of protection	I when installed according to regulations
Mode of operation (DIN EN 60730-1) (DIN EN 60730-2-7)	1 BSTU
Degree of contamination (DIN EN 60730-1)	2
Rated surge voltage (DIN EN 60730-1)	4 kV
Accessories (not included in delivery)	Radio receiver FU 20.00 pro Radio receiver FU 3x.00 pro Mini terminal box 4PLE
