Master clocks
Codice ordinativo
SC 95.47 pro1 Nebenuhren-Linie
4 Kanäle
4 Kanäle
SC 95.47 pro
1 Nebenuhren-Linie
4 Kanäle
4 Kanäle

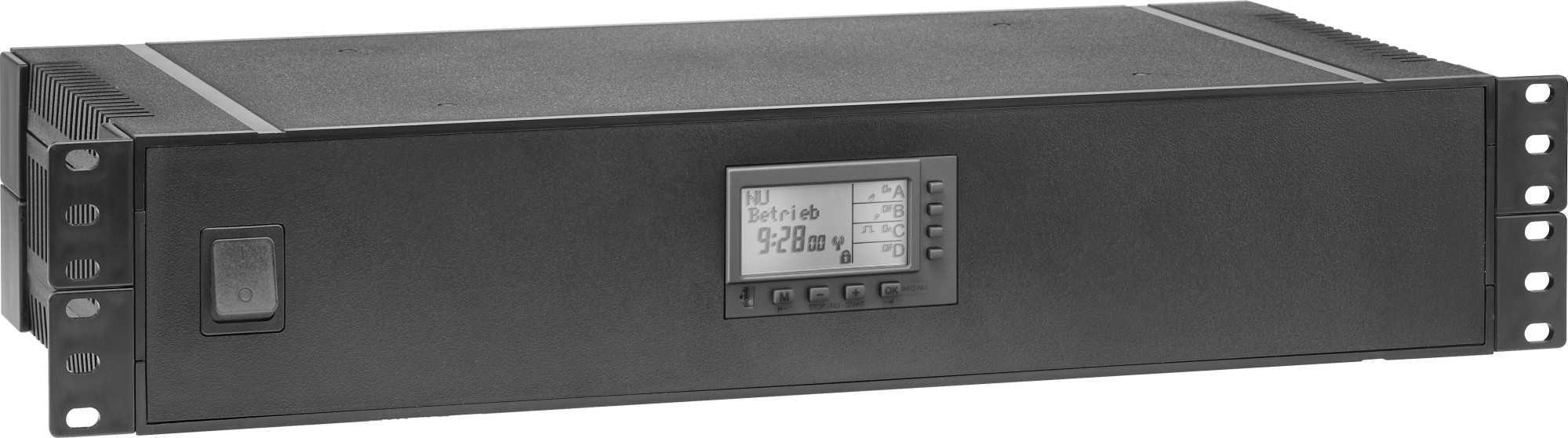

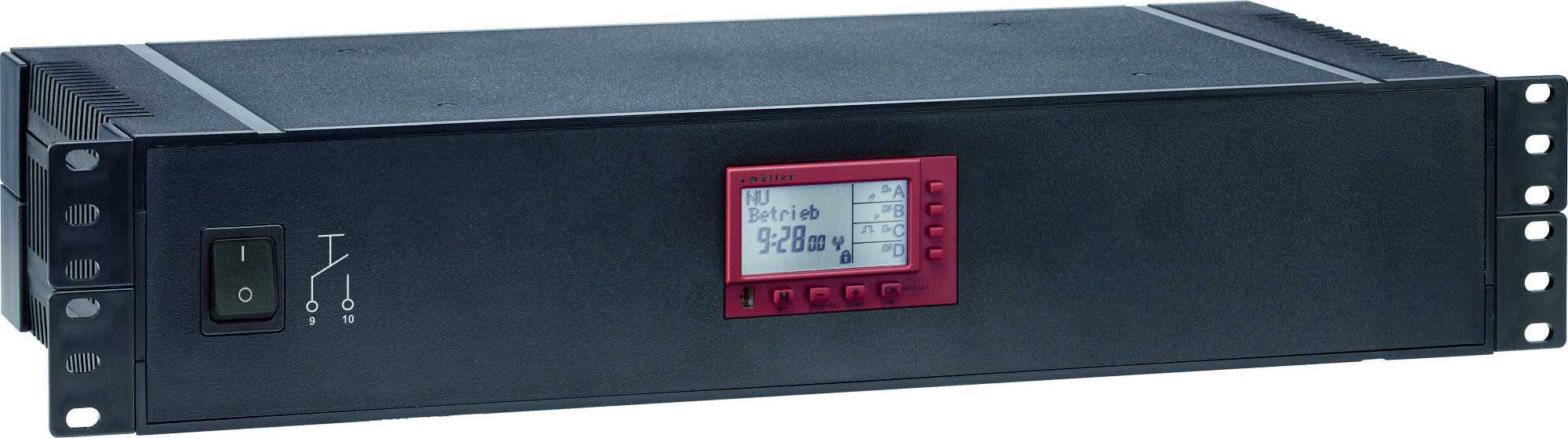

müller SC 95.47 pro
Overview
- For approx. 200 slave clocks (24 V DC, 1.5 A, pole changing pulse)
- No extra power supply unit needed (24 V DC slave clocks and GPS-time antenna included)
- Short-circuit proof
- Automatic adjustment of the slave clocks
- Automatic time correction of slave clock/s after supply voltage interruption
- Fully automatic summertime change (European standard) with 60 additional pulses or 1 hour pulse suppression of the slave-clock-line
- Monitoring of the slave-clock-line and malfunction indicator in display
- Security by PIN-Code
- Illuminated display
- Data-key function
- DCF / GPS function
- Frontswitch (potential-free) can be used to control an arbitrary application
Overview time switch function
- 4 channels (change-over)
- Daily, weekly and yearly program
- 300 memory locations
- Minimum interval 1 min
- Permanent by date
- Manual override
- Elapsed time and pulse counter
- Pulse function
- Cycle function
- Timer function
- Channel button function
- DCF / GPS function
- Data-key function
Highlights
- Yearly program within Easter function, Weekday function and Extra-switching-time function
- Text based Menu
- Display with a large dot matrix area to provide two high resolution text lines
- Easy handling
- Quick and intuitive programmable
- Unlimited program security by E2-PROM
- Programmable with PC (Accessory Data-key DK pro and Programming package PP 50 pro / PP 60 pro)
Intended use
- The device fits for the particular use of the following tasks: Regulation of slave clocks in schools, sports halls, hospitals, factories and companies or huge buildings as well as for church clocks.
- Operate the device in a dry room only!
- The installation must be in accordance with the instruction manual.
