Raumtemperaturregler TS 30.12 knx / TS 31.12 knx

Order information

Measurement of room temperature
Temperature sensor (measuring range 0...50 °C)
2 separate temperature controls via KNX
Temperature control with up to 4 sensor values possible
5 binary and analog inputs (e.g. for connecting an external temperature sensor)
3 analog outputs (0-10V)
RGB, RGBW and Tunable White Dimming function
KNX Secure
Updatable
Clearly structures ETS configuration
Easy handling and installation
Modern, slim design for surface mounting [80 mm]
Party function

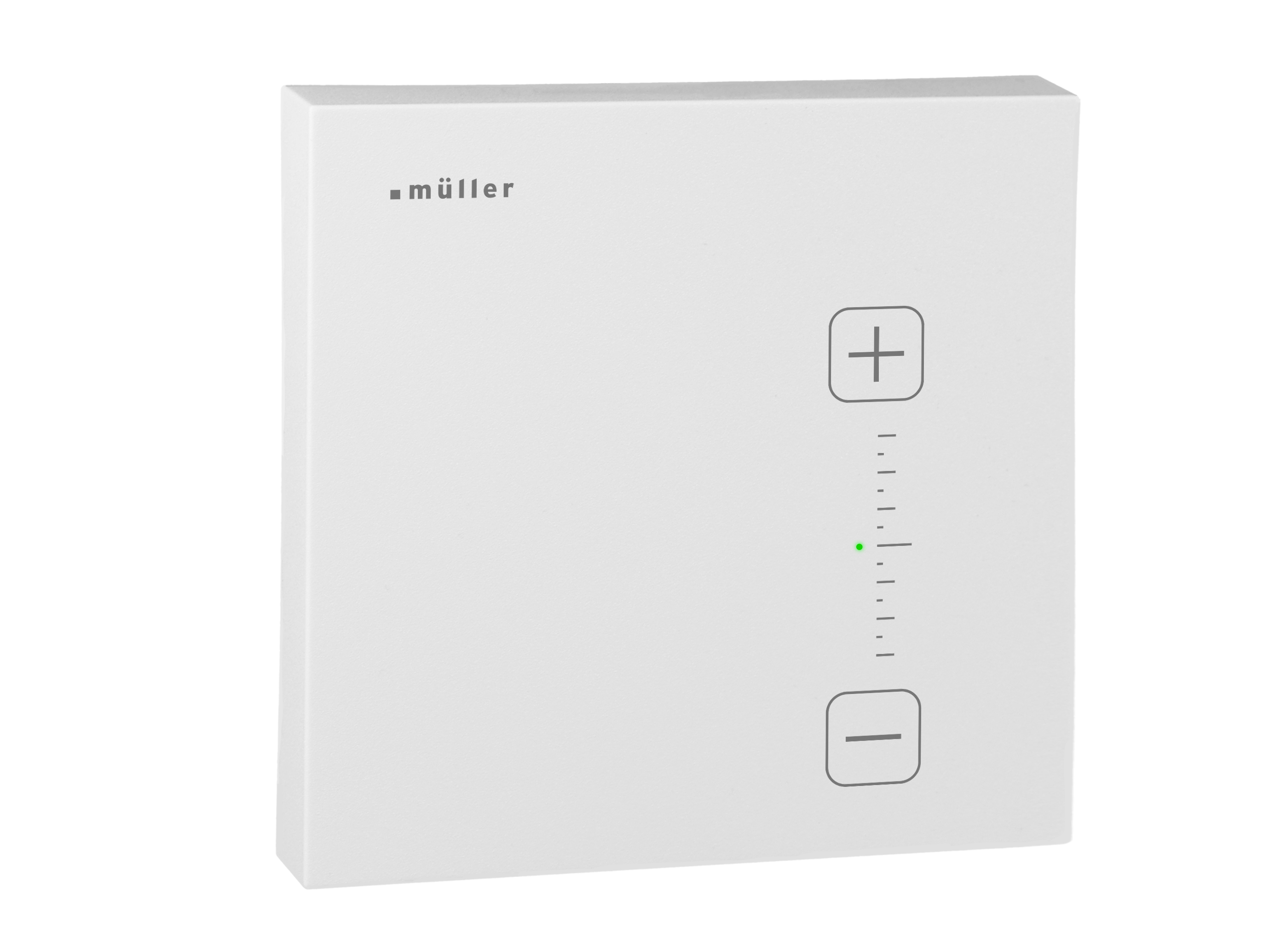

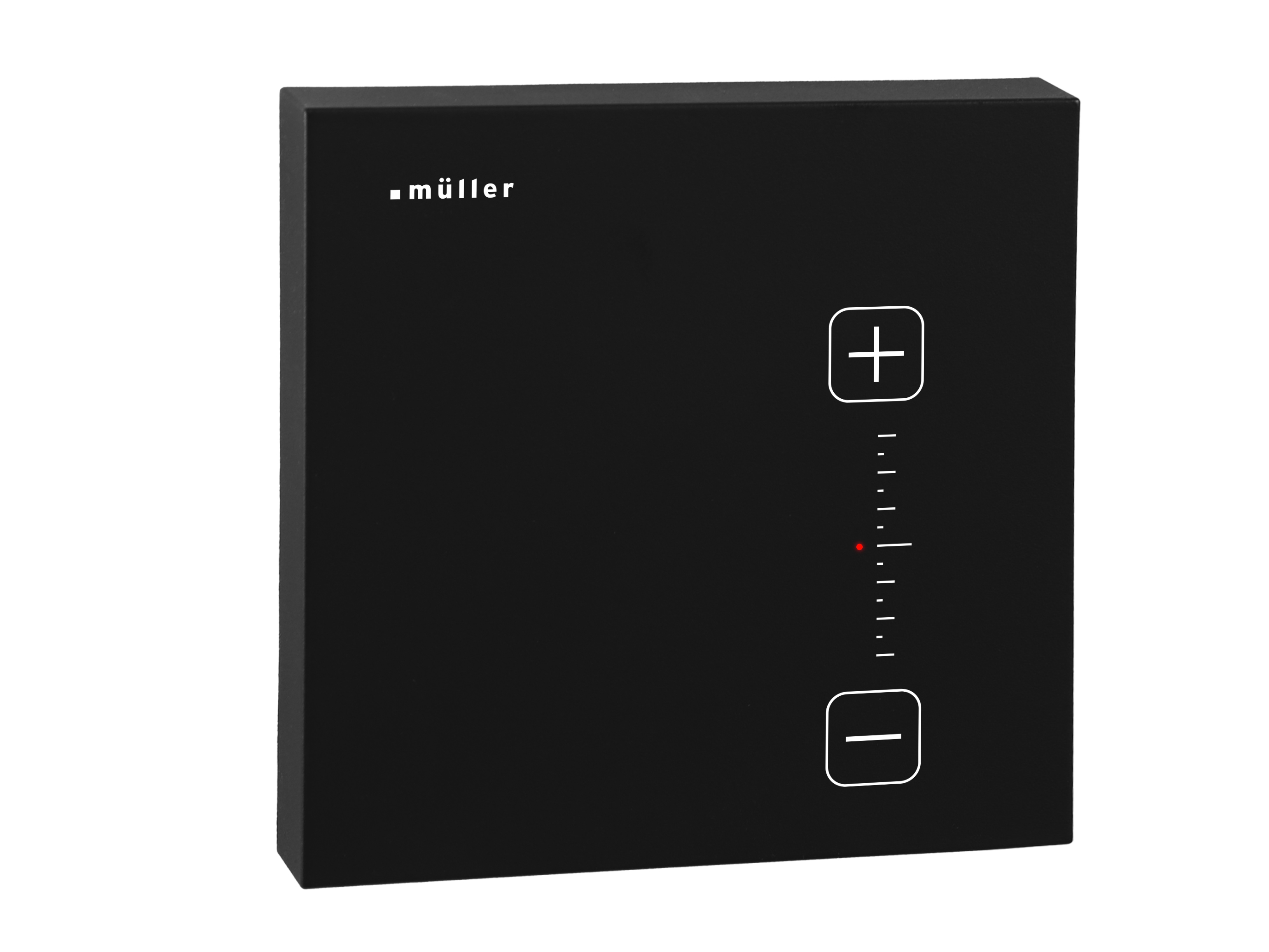

Additionally for TS 31.12 knx:
Setpoint temperature manually adjustable via touch panel

Supply voltage	via KNX bus voltage
Bus current	< 12,5 mA
Bus system	KNX
Safety	KNX Secure
Sensors	temperature relative humidity atmospheric pressure dew point VAV ventilation control
Inputs	4 binary inputs 1 input configurable as a temperature sensor input for common temperature sensors
Outputs	3 analog outputs 0–10 V
Manual operation (only GS 31.12 knx)	manual adjustment of set-point temperature
Measuring range temperature	0...+50 °C
Measuring range atmospheric pressure	300...1.100 hPa
Permitted ambient temperature	0°...+50° C
Housing	self-extinguishing thermoplastic
Dimensions	80,5 x 80,5 x 17 mm

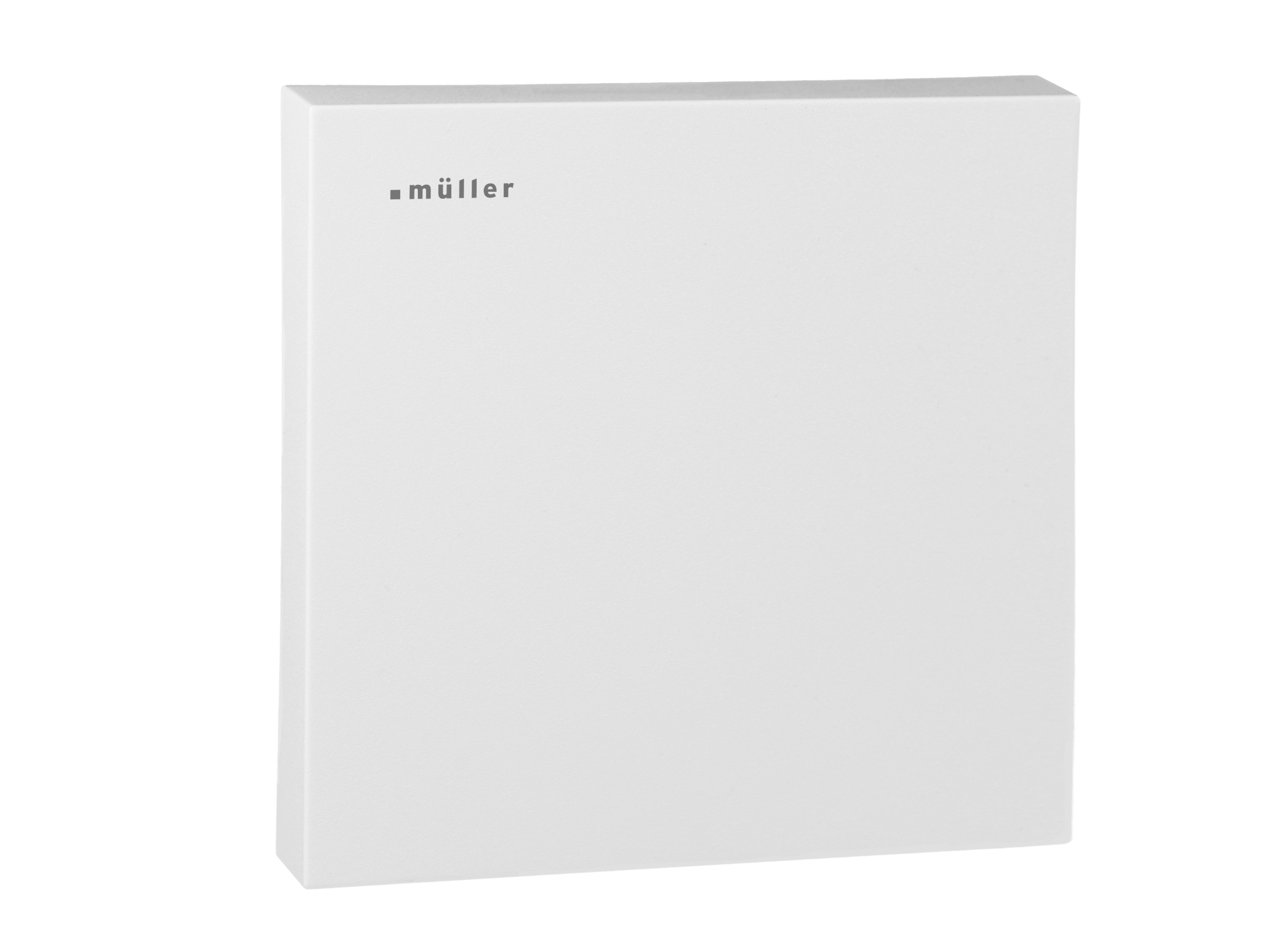

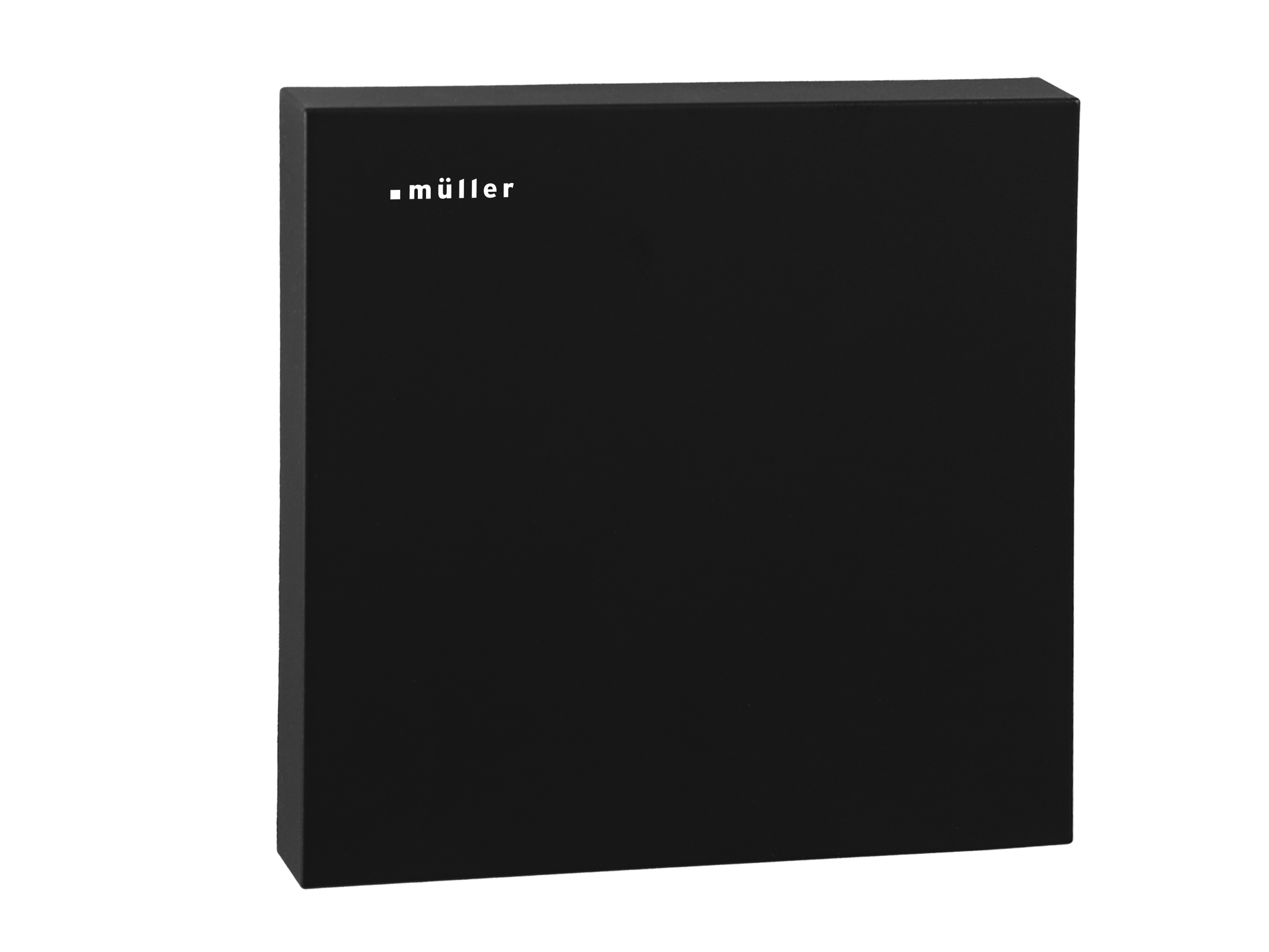

Housing color	studio white (similar to RAL 9016) or jet black (similar to RAL 9005) specific colors on request
Mounting	wall mounting (preferrably combined with flush-mounting box)
Type of connection	push-in connector
Type of protection	IP 20 (DIN EN 60529)
Class of protection	III when installed according to regulations
Type of connection external inputs	wire diameter Solid: 0.5–2.5 mm² Flexible: 0.5–1.5 mm² Stripping length 6 mm

CO₂	Value output Control (step and PI control)
Relative humidity	Value output Control (step and PI control) Comparator
Temperature	Value output Control heating (2-point- and PI control) Control cooling (2-point- and PI control) Alarms
Dewpoint	Value output Alarms
Air pressure	Value output
VAV control	Value output (0...100%)
and much more...
