| Supply voltage |
via KNX bus voltage |
| Bus current |
< 12,5 mA |
| Bus system |
KNX |
| Safety |
KNX Secure |
| Sensors |
temperature |
| Functions |
Switching
blind / shutter control
dimming
scenes
values
logic function
and much more |
| Inputs |
3 binary inputs
1 input configurable as temperature sensor input for common temperature sensors |
| Outputs |
3 analog outputs 0-10 V |
| Manual operation |

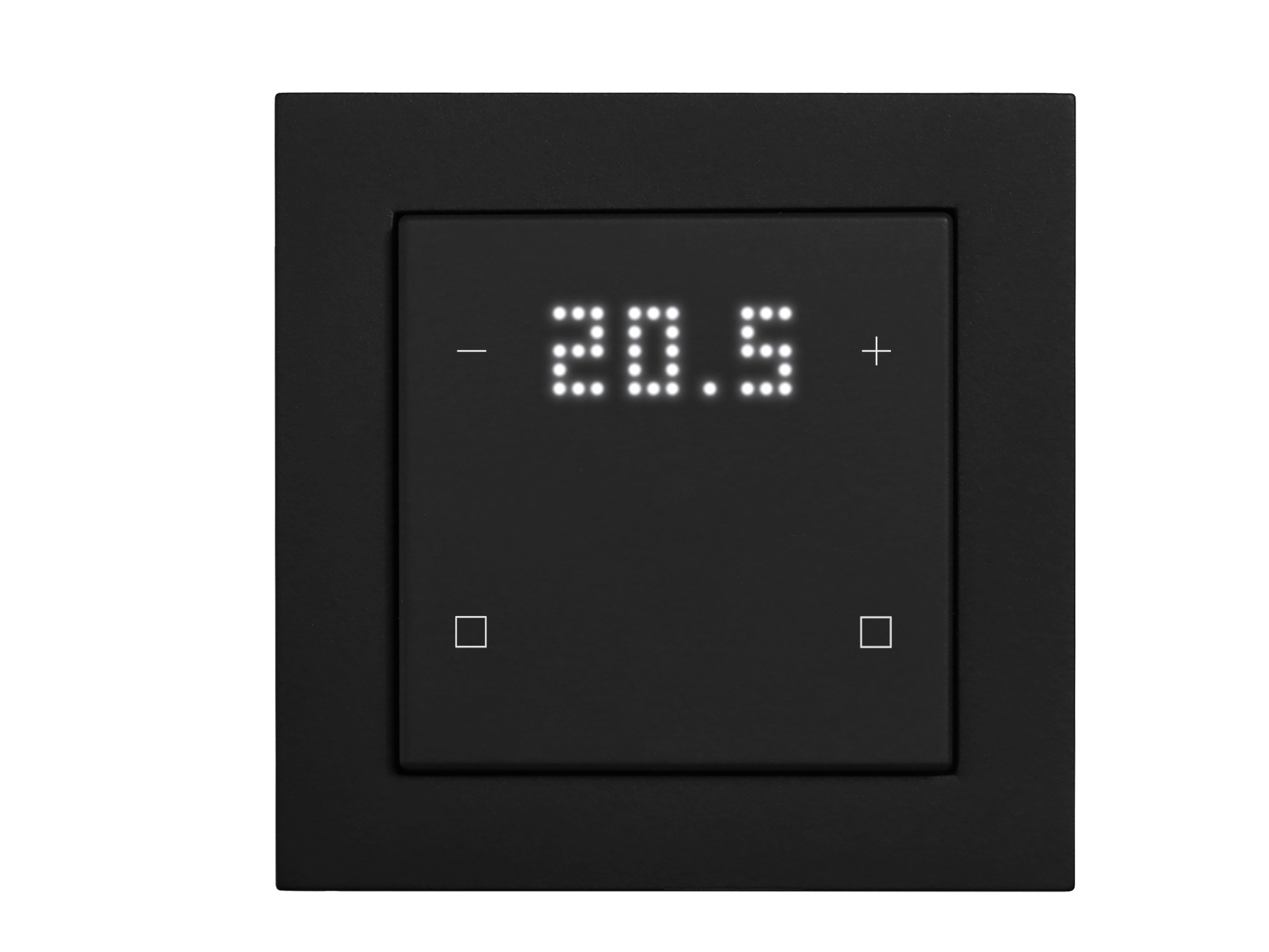

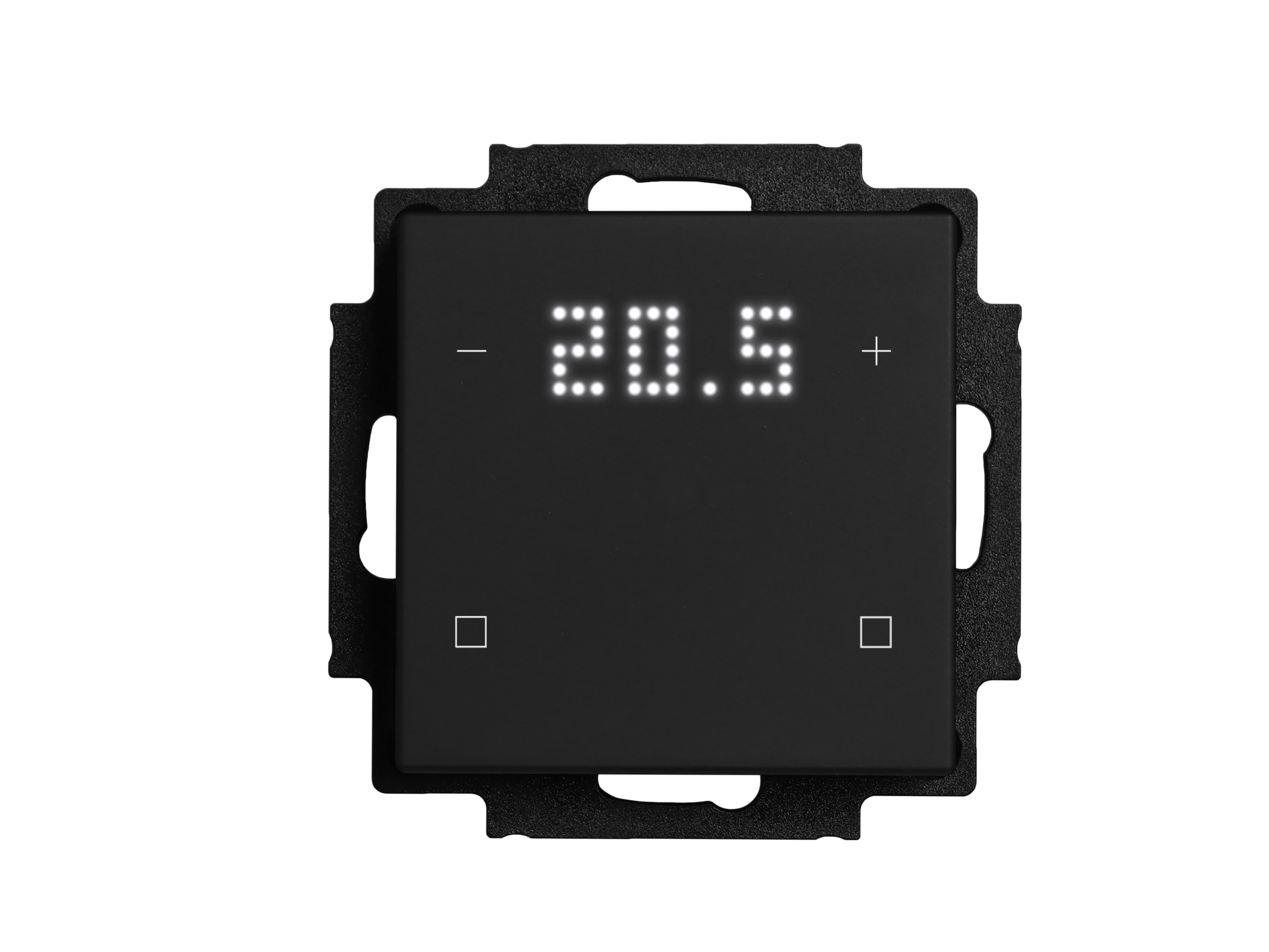

manual adjustment of set-point temperature ±5° (increment adjustable) |
| Measuring range temperature |
0...50 °C |
| Permitted ambient temperature |
0°...50 °C |
| Housing |
self-extinguishing thermoplastic |
| Dimensions |
55 x 55 mm |
| Housing color |

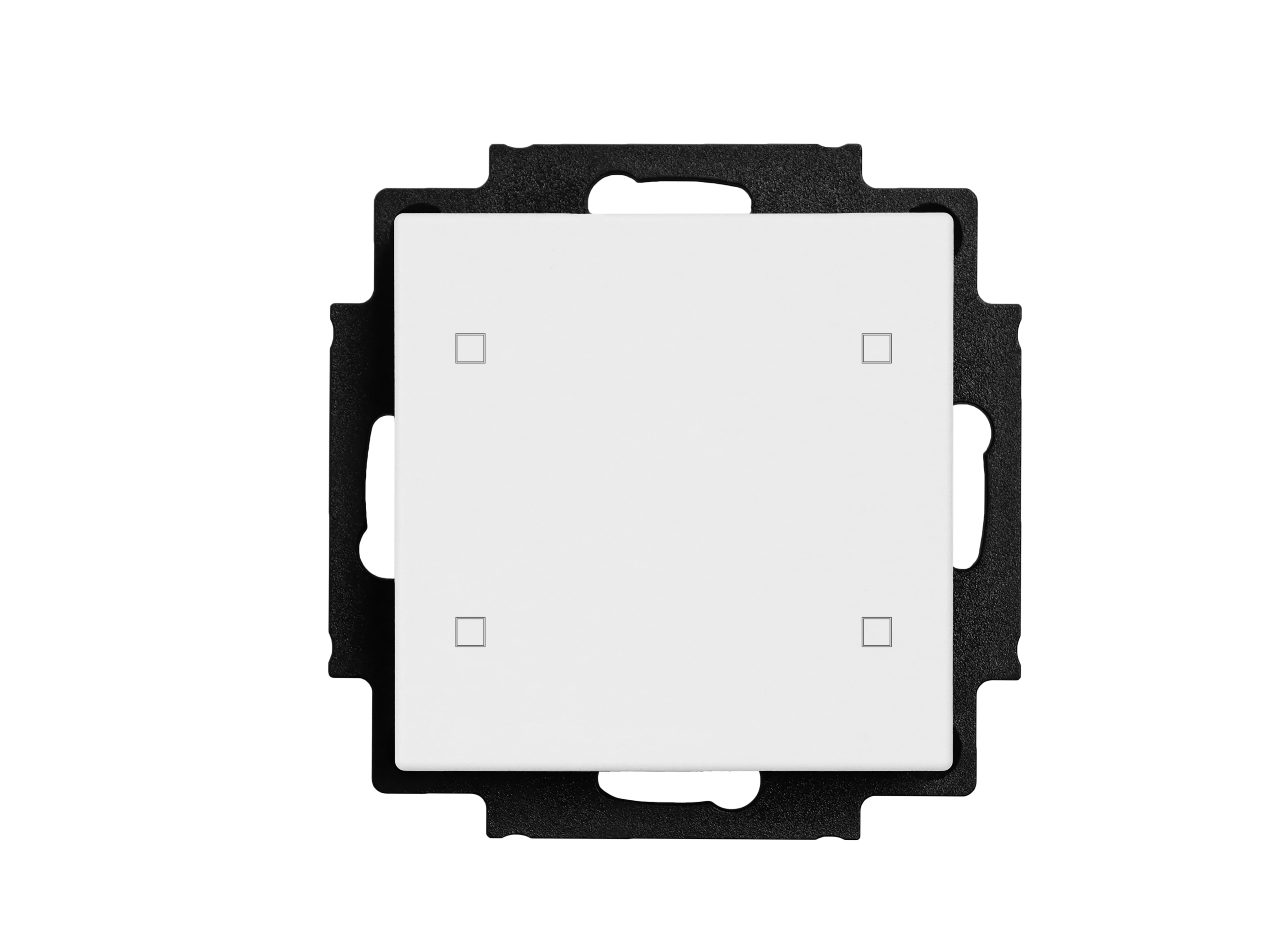

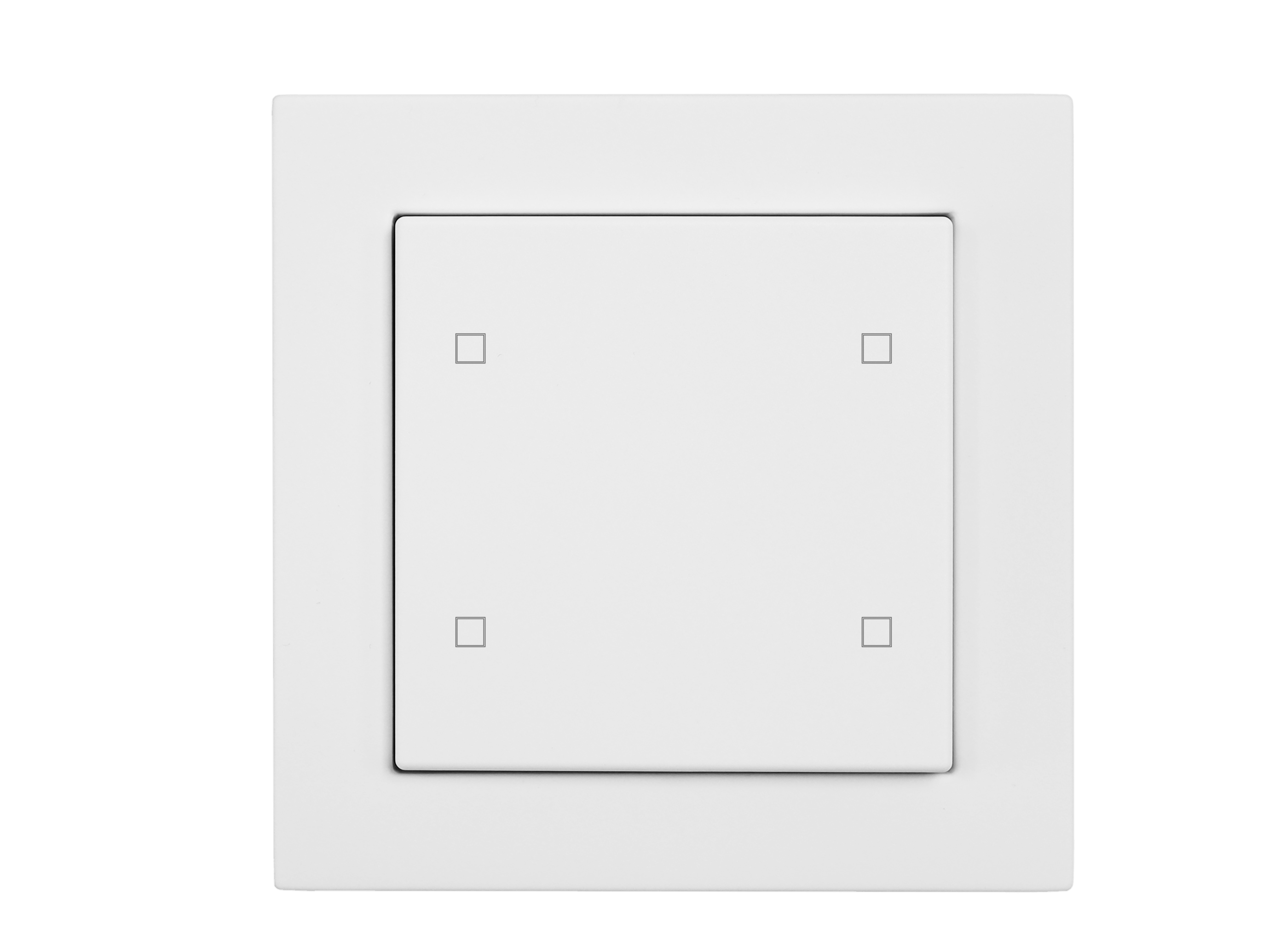

pure white (similar to RAL 9010) or

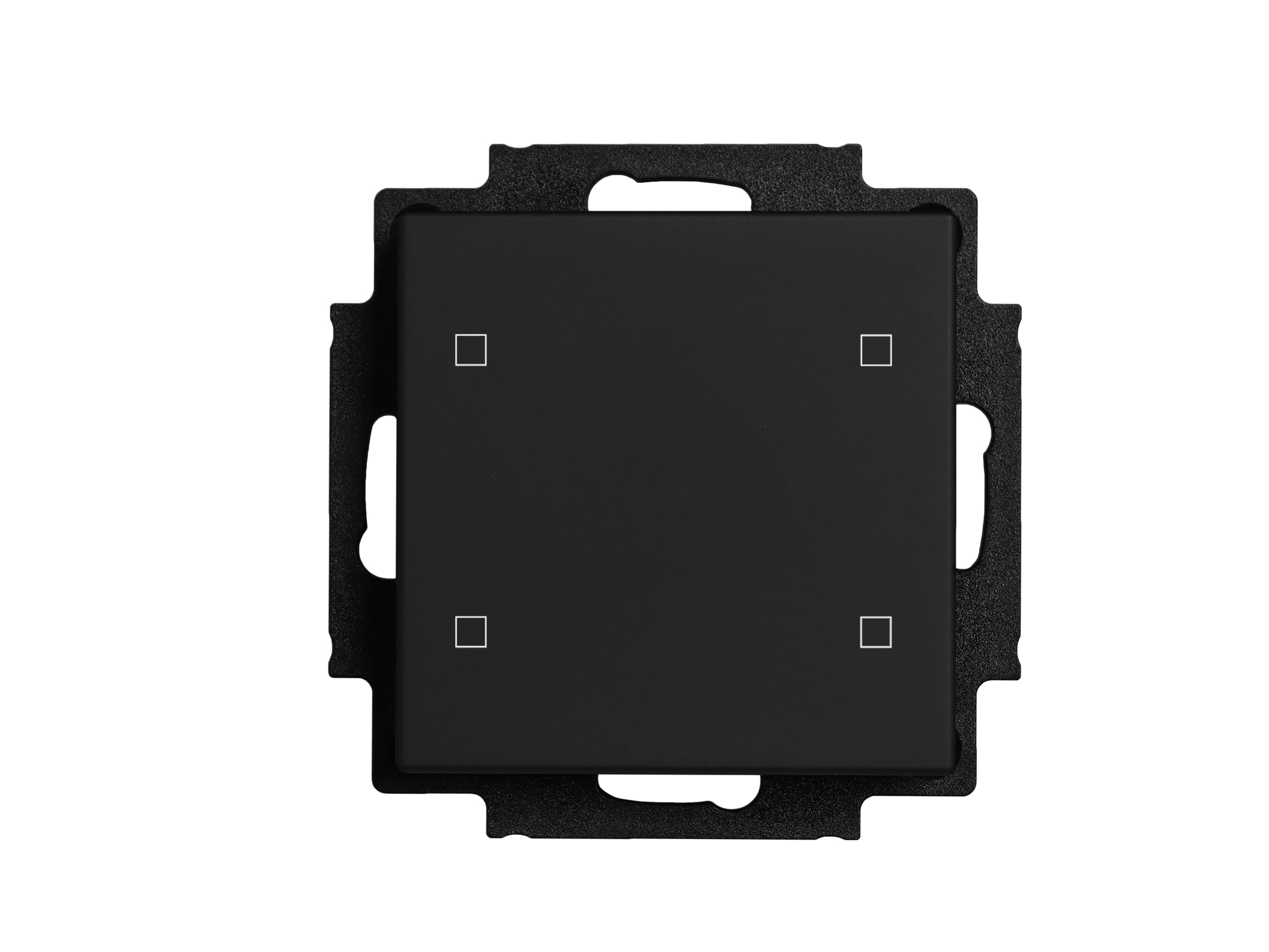

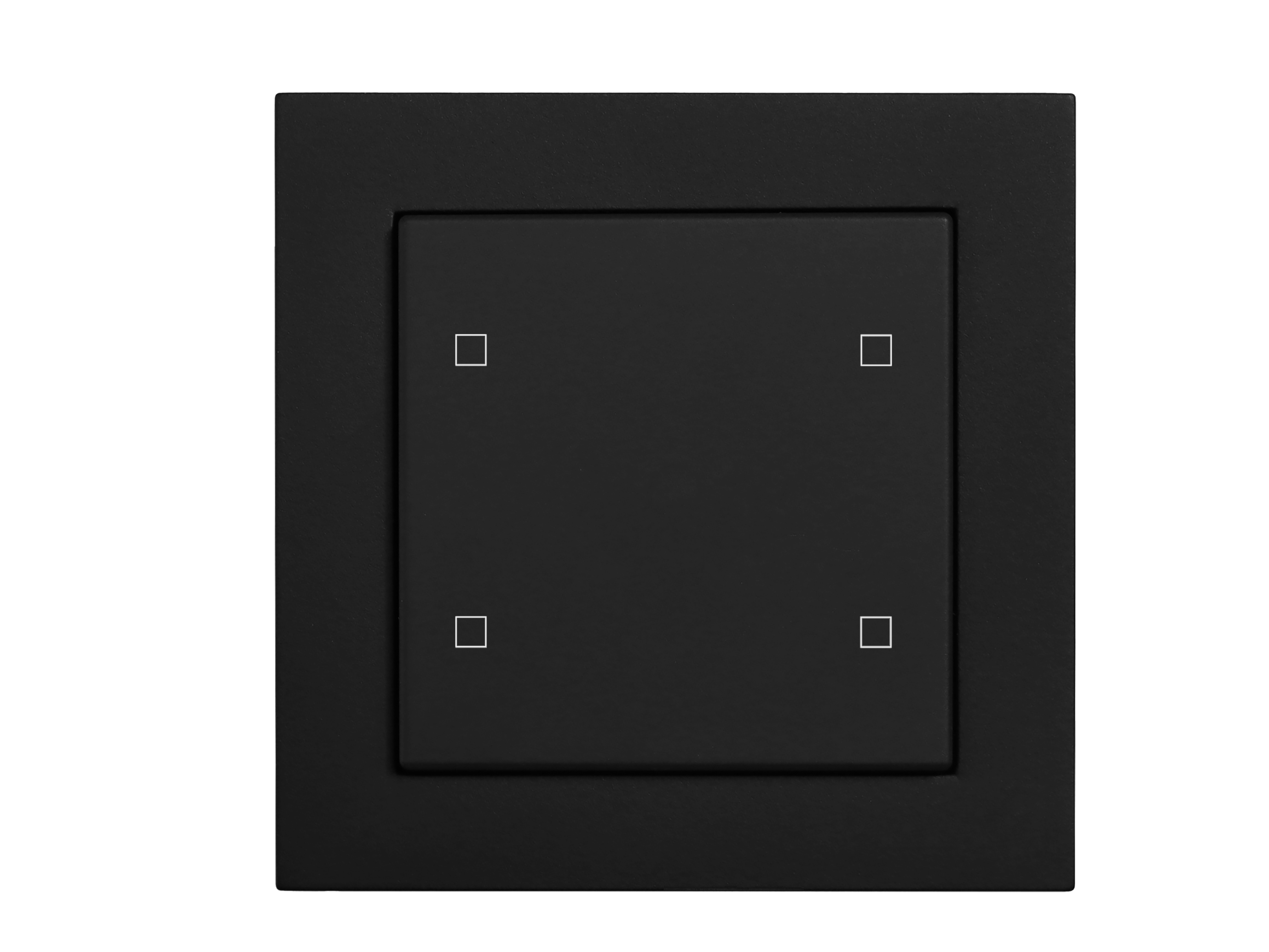

jet black (similar to RAL 9005)
specific colors on request |
| Mounting |
flush-mounting |
| Type of connection |
push-in connector
KNX-connector |
| Type of protection |
IP 20 (DIN EN 60529) |
| Class of protection |
III when installed according to regulations |
Type of connection
analog outputs and
binary inputs |
wire diameter max. 0,2-0,5 mm²
strip length 5-6 mm |
